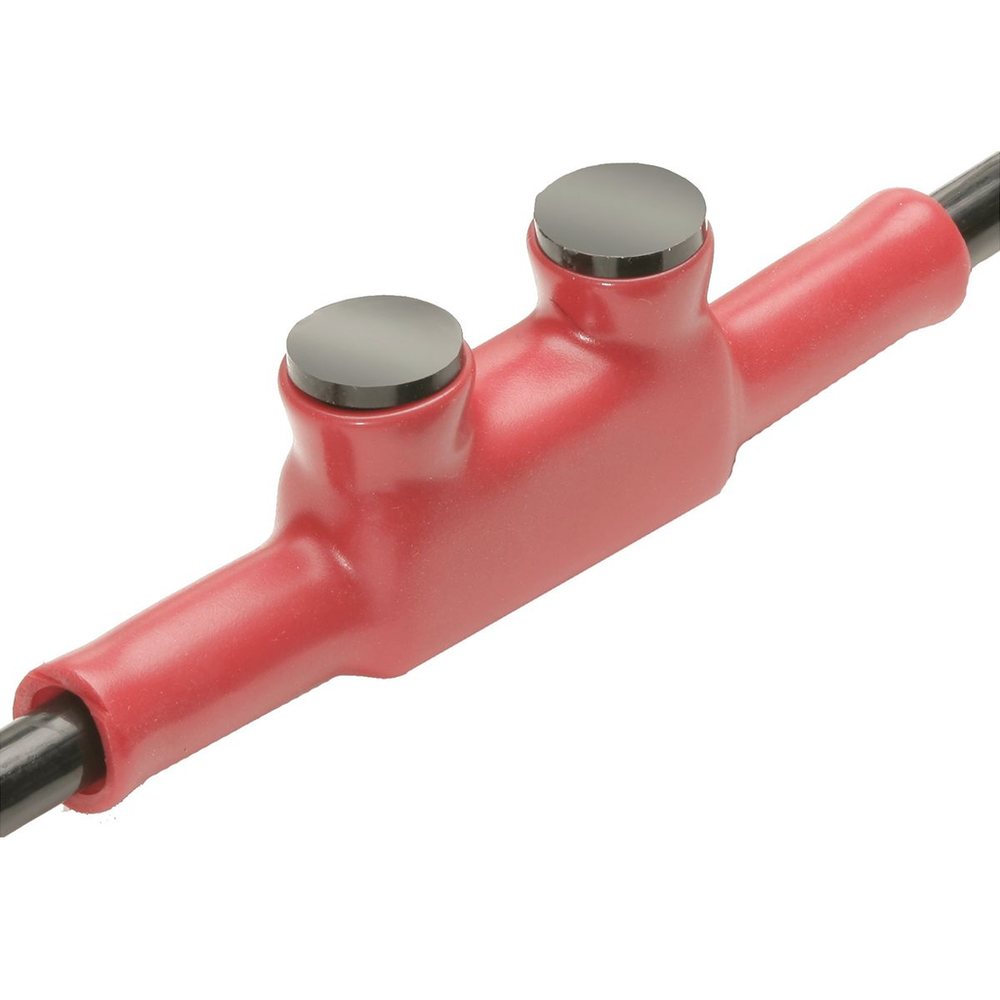

Burndy BISR250DB
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
In-Line Splice/Reducer, 2 Port, 4/0 AWG-250 kcmil, Al/Cu Rated.In-Line Splice/Reducer, 2 Port, 4/0 AWG-250 kcmil, Al/Cu Rated
Burndy BISR250DB is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
Specifications
- Application
- For Outside Direct Burial
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810288061
- Case - SCC-14 Next Lower Level Sub Pack
- 70781810288060
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - AL Str Size
- 4/0;250 kcmil
- Conductor - AL Str Size Range
- 4/0 AWG - 250 kcmil
- Conductor - Copper Str Size
- 4/0 AWG;250 kcmil
- Conductor - Copper Str Size Range
- 4/0 AWG - 250 kcmil
- Conductor Size
- 4/0 AWG-250 KCMIL
- Conductor Type
- AL C Str-Size;CU C Str-Size
- Connector Type
- In-Line
- Country of Origin
- US
- Description - Invoice
- 250-4/0 DIRECTBURIALUNIT
- Description - Slang
- Direct Burial Rated
- Dimension - Height inch
- 2.17 in
- Dimension - Length Overall inch
- 6.7 in
- Dimension - L Length Overall mm
- 170.18 mm
- Dimension - Screw Size inch
- 5/8
- Dimension - Strip Length inch
- 7/8 in
- Dimension - Width inch
- 1.18 in
- Dimension - Width mm
- 29.97 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.18 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Hex Key
- 5/16 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Installation Torque Recommended in-lb
- 360 in-lb
- Insulation
- Y
- Insulation Type
- Plastisol
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Number Of Ports
- 2
- Operating Voltage
- 600 V
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 33.6 lb.
- Package - GTIN - Package
- 70781810288060
- Package Height
- 6.375 in
- Package Length
- 2 in
- Package - Number of Sub Packs
- 50
- Package - Pack Description
- Package
- Package Quantity
- 50 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810288061
- Package - Total Units
- 50 EA
- Package Weight
- 33.6 lb.
- Package Width
- 5.875 in
- Physical Attribute - Number of Screws
- 2
- Physical Attribute - Screw Type
- Allen
- Plated
- N
- Plating Type
- Unplated
- Product Type
- SPLICE REDUCER
- Special Features
- Features: Designed Specifically For Direct Burial Applications, The Mole Inline Splice/Reducer Is Made With A Specialized Plastisol Material That Forms A Rugged Weathertight Connection, UL486D Listed For Direct Burial, AL9CU Dual-Rated For Copper And Aluminum Applications, 600V 90°C, Plastisol Covered Al6061-T6 AluminumBody Saves Time By Eliminating The Need For Heat Shrink, Oxide Inhibitor Pre-Installed Preventing Moisture And Contaminants From Entering Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, Wire Entry: In-Line, Torque: 360 IN-LB, Hex Size (key): 5/16 IN, Conductor Size (run - Range): 4 AWG - 250 KCMIL, Number Of Ports: 6, Wire Strip Length: 1-5/16 IN, Type Of Insulation: Plastisol
- Standard
- UL 486A-486B
- Standard Package Quantity
- 80
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- UNITAP, MOLE
- Sub Class Code
- B51BGXF
- Temperature Rating
- 90 °C
- Trade Name
- UNITAP™
- Type
- BISR
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
- Width
- 1.18 in
