Description

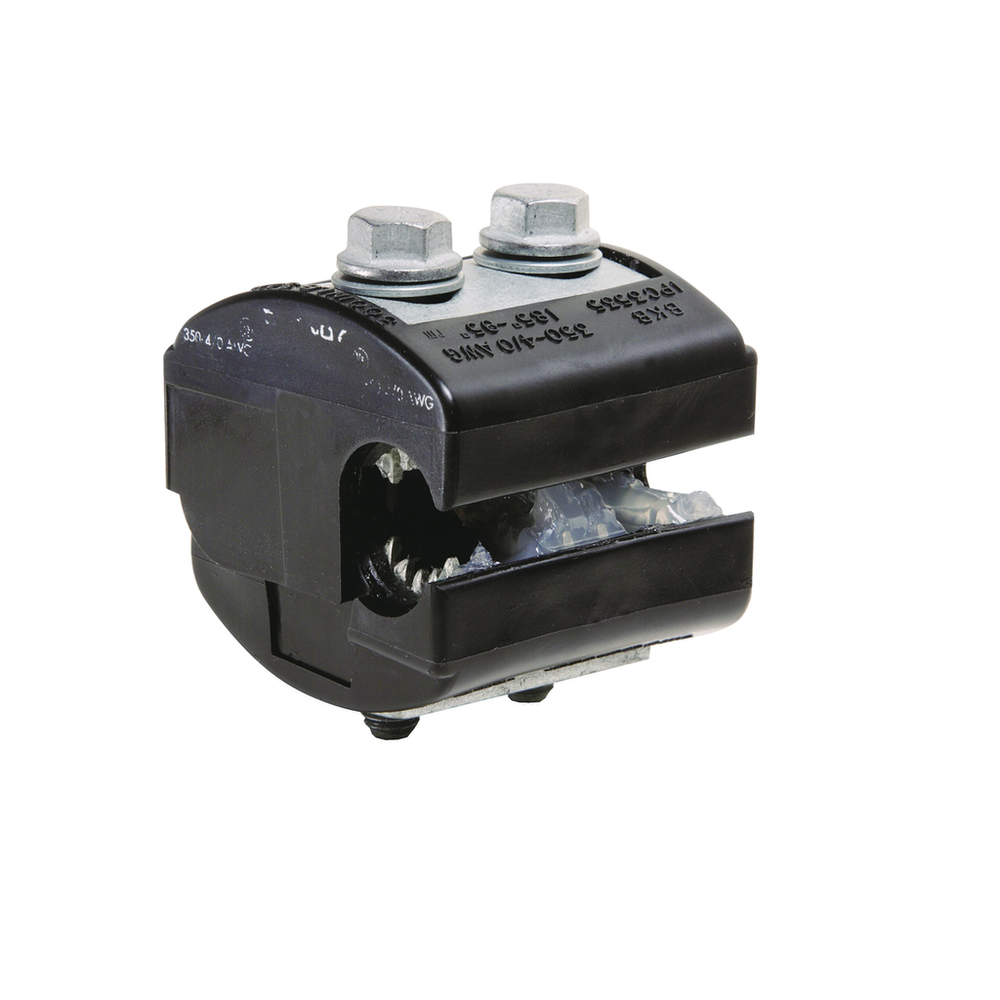

Insulation Piercing Connector, 350-500 kcmil (Run), 4-4/0 AWG (Tap), 600 V.Insulation Piercing BIPC5004/0
Burndy BIPC5004/0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Listed Direct Burial
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - Industry Standards Met
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
- UL Listed
- Yes
Conductor Related
- Conductor - AL Str Run Range
- 350 kcmil-500 kcmil
- Conductor - AL Str Tap Range
- 4 AWG-4/0 AWG
- Conductor - Copper Str Run Range
- 350 kcmil-500 kcmil
- Conductor - Copper Str Tap Range
- 4 AWG-4/0 AWG
Dimensions
- Dimension - Bolt Size inch
- 0.38 in
- Dimension - Height inch
- 3.25 in
- Dimension - Length Overall inch
- 1.80 in
- Dimension - L Length Overall mm
- 46 mm
- Dimension - Width inch
- 2.62 in
- Dimension - Width mm
- 67 mm
Electrical Ratings
- Rating - Minimum Voltage
- 600
- Voltage - Maximum
- 600 V
General
- Application
- For Copper And Aluminum Conductor Combinations Up To 90 DEG C, 600 Volt Applications
- Installation Torque Recommended in-lb
- 400 LBS/in
- Physical Attribute - Number of Screws
- 1
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Physical Attribute - Socket Size
- 9/16
- Plated
- N
- Plating Type
- Unplated
- Sub Brand
- INSULATION PIERCING CONNECTOR
- Type
- BIPC
- UPC
- 781810128756
- UPC 12 Digit
- 7818101287566
Logistics
- Minimum Pack Quantity
- 1
