Burndy BIPC4/06
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

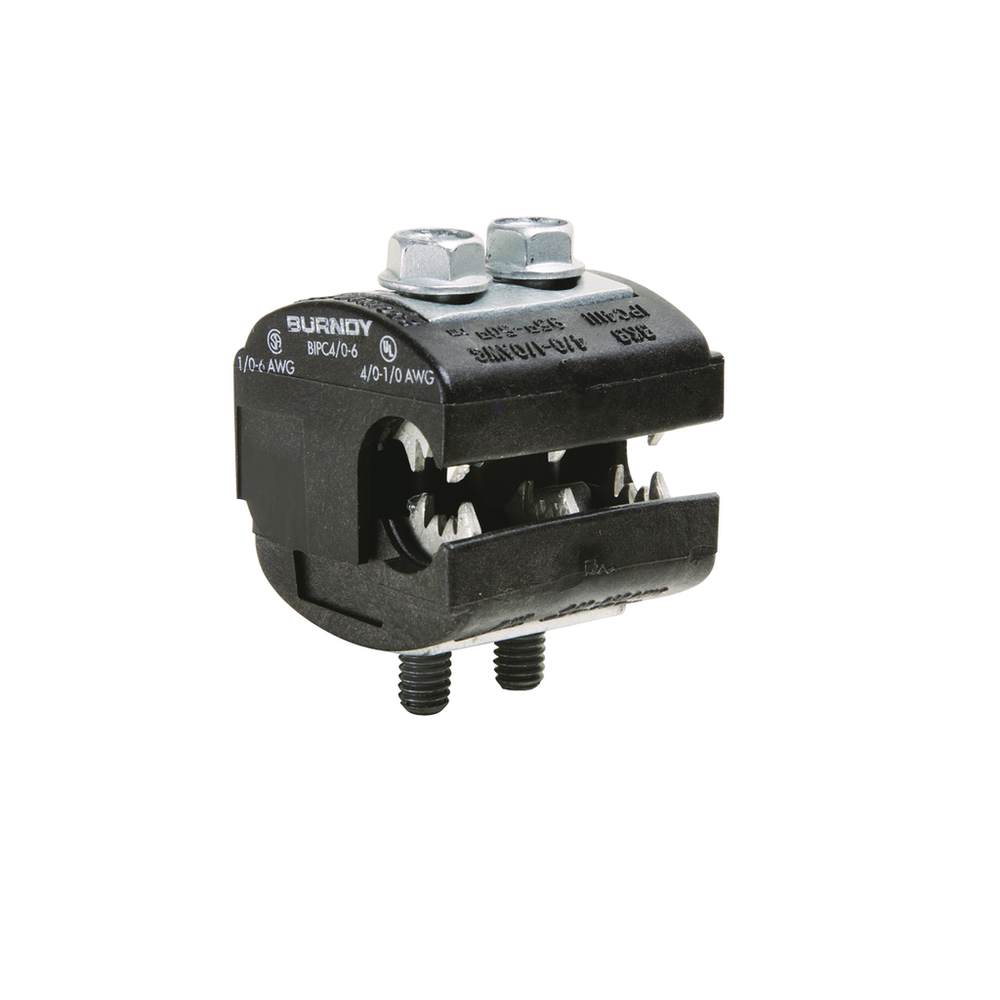

Insulation Piercing Connector, 1/0-4/0 AWG (Run), 6-1/0 AWG (Tap), 300 V.Insulation Piercing BIPC4/06
Burndy BIPC4/06 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Listed Direct Burial
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - Industry Standards Met
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
- UL Listed
- Yes
Conductor Related
- Conductor - AL Str Run Range
- 1/0 AWG-4/0 AWG
- Conductor - AL Str Tap Range
- 6-1/0 AWG
- Conductor - Copper Str Run Range
- 1/0 -4/0 AWG
- Conductor - Copper Str Tap Range
- 6 AWG-1/0
Dimensions
- Dimension - Bolt Size inch
- 0.31 in
- Dimension - Height inch
- 2.50 in
- Dimension - Length Overall inch
- 2.12 in
- Dimension - L Length Overall mm
- 54 mm
- Dimension - Width inch
- 2.00 in
- Dimension - Width mm
- 51 mm
Electrical Ratings
- Rating - Minimum Voltage
- 600
- Voltage - Maximum
- 300 V
General
- Application
- For Splicing And Tapping Aluminum And Copper Conductors
- Installation Torque Recommended in-lb
- 250 LBS/in
- Physical Attribute - Number of Screws
- 2
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Physical Attribute - Socket Size
- 1/2
- Plated
- N
- Plating Type
- Unplated
- Sub Brand
- INSULATION PIERCING CONNECTOR
- Type
- BIPC
- UPC
- 781810128718
- UPC 12 Digit
- 7818101287188
Logistics
- Minimum Pack Quantity
- 1
