Description

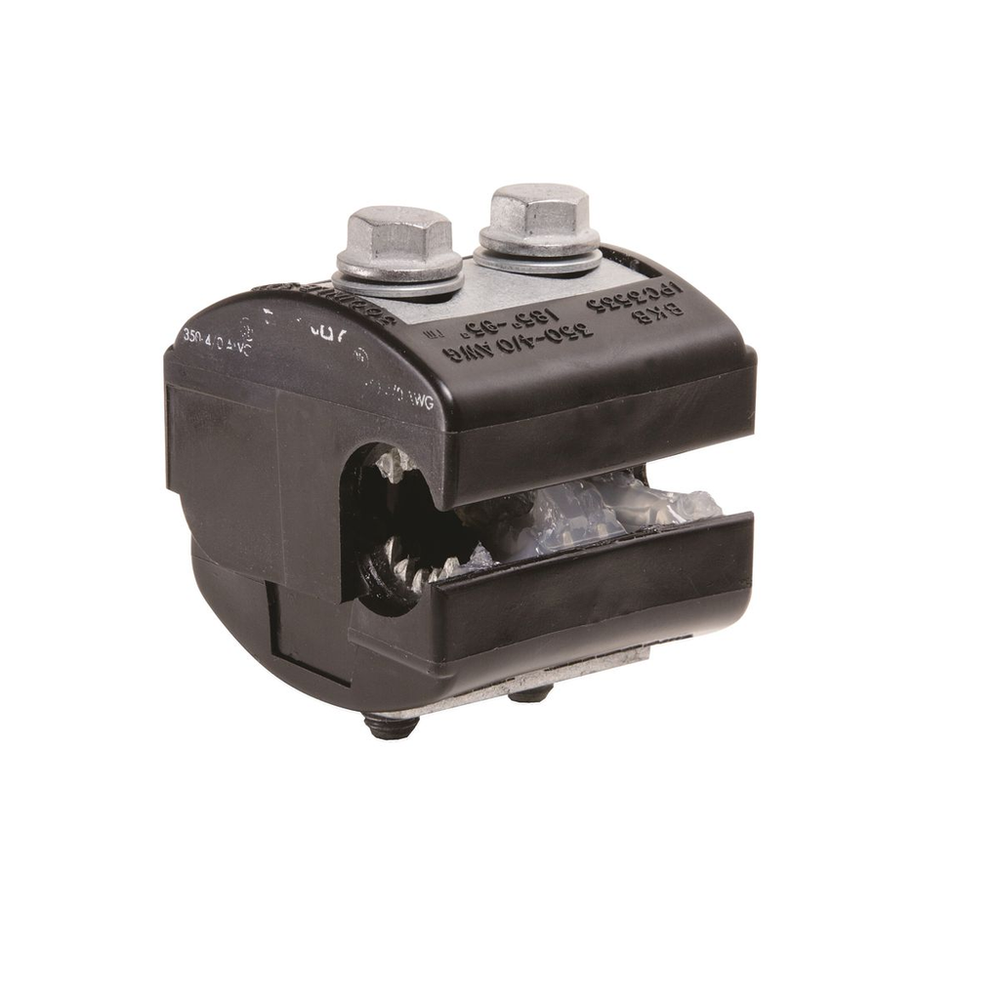

Insulation Piercing Connector, 4/0 AWG-350 kcmil (Run), 4/0 AWG-350 kcmil (Tap), 300 V.BURNDY Insulation Piercing Connector
Burndy BIPC350350 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- No
- UL Recognized
- No
Specifications
- Application
- For Copper And Aluminum Conductor Combinations Up To 90 DEG C, 600 Volt Applications
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x7.373x6.438 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 4.160 lb.
- Carton - Number of Sub Packs
- 4
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810128749
- Carton - Total Units
- 4
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810128740
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - AL Str Run Range
- 4/0 AWG-350 kcmil
- Conductor - AL Str Tap Range
- 4/0 AWG-350 kcmil
- Conductor - Copper Str Run Range
- 4/0 AWG-350 kcmil
- Conductor - Copper Str Tap Range
- 4/0 AWG-350 kcmil
- Conductor Type
- AL C Str-Run;CU C Str-Run;AL C Str-Tap;CU C Str-Tap
- Connector Type
- Insulation Piercing
- Country of Origin
- US
- Description - Invoice
- 350-350KCMIL INSL PRCCON
- Description - Slang
- Insulation Piercing Connectors
- Dimension - Bolt Size inch
- 0.38 in
- Dimension - Height inch
- 3.00 in
- Dimension - Length Overall inch
- 2.62 in
- Dimension - L Length Overall mm
- 67 mm
- Dimension - Width inch
- 2.75 in
- Dimension - Width mm
- 70 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 2.75 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Installation Torque Recommended in-lb
- 300 LBS/in
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 4.16 lb.
- Package - GTIN - Package
- 30781810128740
- Package Height
- 4.5 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 4
- Package - Pack Description
- Package
- Package Quantity
- 4 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810128749
- Package - Total Units
- 4 EA
- Package Weight
- 4.16 lb.
- Package Width
- 6.13 in
- Pallet - GTIN - Package
- 70781810128748
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1276.360 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Screws
- 2
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Physical Attribute - Socket Size
- 9/16
- Plated
- N
- Plating Type
- Unplated
- Product Type
- RUN/TAP
- Rating - Minimum Voltage
- 600
- Special Features
- Features: Insulation Piercing Capability, Eliminates The Need For Conductor Insulation Stripping, UL486B Listed, AL9CU Rated, For Copper And Aluminum Conductor Combinations Up To 90 DEG C 600 Volt Applications, Insulation Piercing Design, Eliminates The Need For Taping, Easy Snap-Out Tabs, Eases Installation, Protects Connection From Dirt And Debris, Simple Bolt-On Connection, Eases Installation, Socket Size: 9/16 IN, Installation Torque: 300 IN-LB, Conductor Type: Run: Commercial Aluminum, Metric, Commercial Copper, Tap: Commercial Aluminum, Metric, Commercial Copper, Height: 3 IN, Length: 2.62 IN, Width: 2-3/4 IN
- Standard
- UL 486A-486B
- Standard Package Quantity
- 4
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- INSULATION PIERCING CONNECTOR
- Sub Class Code
- B51BGDF
- Type
- BIPC
- UL Listed
- Yes
- Voltage - Maximum
- 300 V
- Width
- 2.75 in
