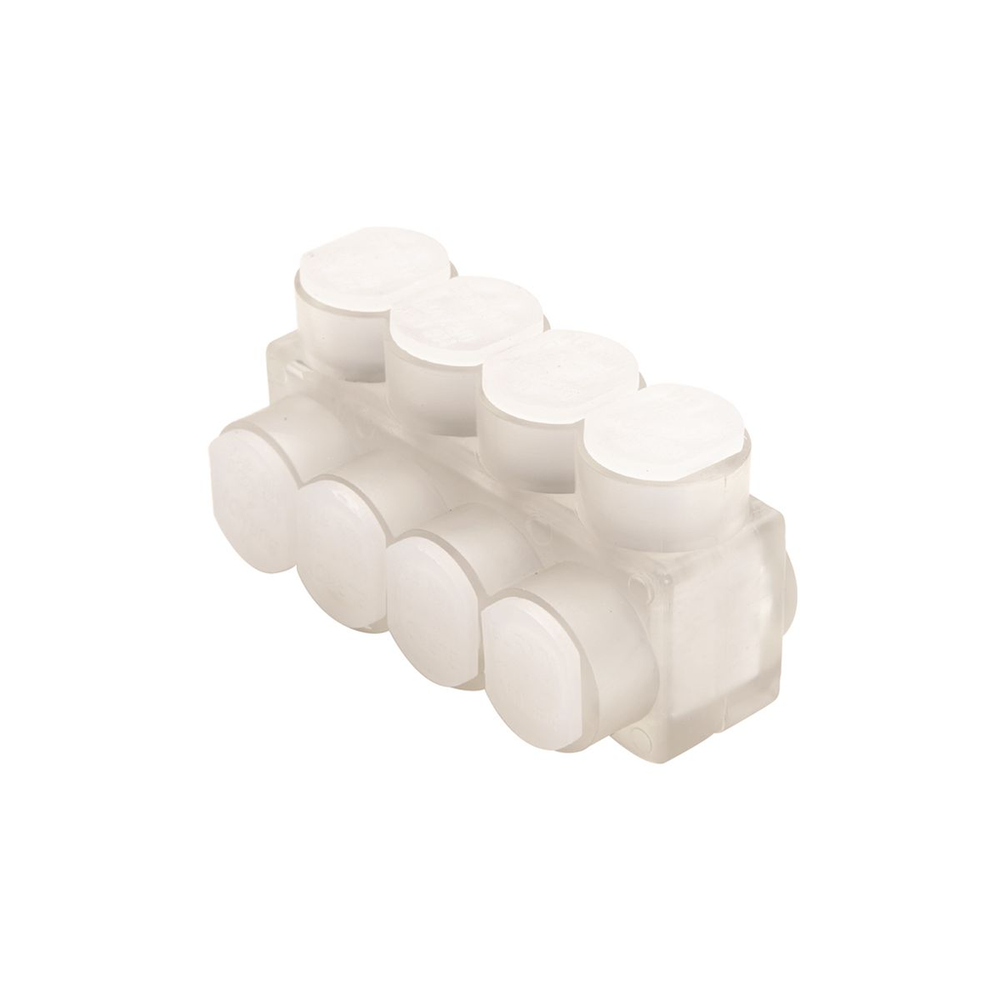

Burndy BIBS46
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluminum Multiple Tap Connector, Clear Insulated, 6 Port, 1 Sided Entry, 14-4 AWG, Al/Cu RatedAluminum Multiple Tap Connector, Clear Insulated, 6 Port, 1 Sided Entry, 14-4 AWG, Al/Cu Rated
Burndy BIBS46 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- No
- UL Recognized
- No
Specifications
- Application
- For Indoor Use Only, Copper Or Stranded Aluminum
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810223840
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810223841
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - AL Str Size Range
- 14 AWG - 4 AWG
- Conductor - Copper Str Size Range
- 14 AWG - 4 AWG
- Conductor Size
- 14-4 AWG
- Conductor Type
- AL C Str-Size;CU C Str-Size
- Connector Type
- Multi Tap
- Country of Origin
- US
- Description - Invoice
- 14-4 ONE SIDED UNITAP,2.83 IN L
- Description - Slang
- Clear Insulation
- Dimension - Height inch
- 1.25 in
- Dimension - Length Overall inch
- 2.83 in
- Dimension - L Length Overall mm
- 72 mm
- Dimension - Screw Size inch
- 1/4
- Dimension - Width inch
- 1.25 in
- Dimension - Width mm
- 32 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.25 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Hex Key
- 1/8
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Insulation
- Y
- Insulation Type
- Plastisol
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Number Of Ports
- 6
- Operating Voltage
- 600 V
- Order Multiple
- 99 EA
- Package - Gross Weight per Pack
- 16.137 lb.
- Package - GTIN - Package
- 30781810223841
- Package Quantity
- 99 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Screws
- 6
- Physical Attribute - Screw Type
- Allen
- Plated
- N
- Plating Type
- Unplated
- Product Type
- RUN/TAP
- Special Features
- Features: UNITAP Rated For Code Conductor Only, Torque: 45 IN-LB, Wire Entry: Single, Hex Size (key): 1/8 IN, Conductor Size (run - Range): 14 - 4 AWG, Number Of Ports: 6, Type Of Insulation: Plastisol, Wire Strip Length: 5/8 IN
- Standard
- UL 486A-486B
- Standard Package Quantity
- 99
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- UNITAP
- Sub Class Code
- B51BGUF
- Temperature Rating
- 194
- Trade Name
- UNITAP™
- Type
- BIBS, Multi-Port
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
- Width
- 1.25 in
