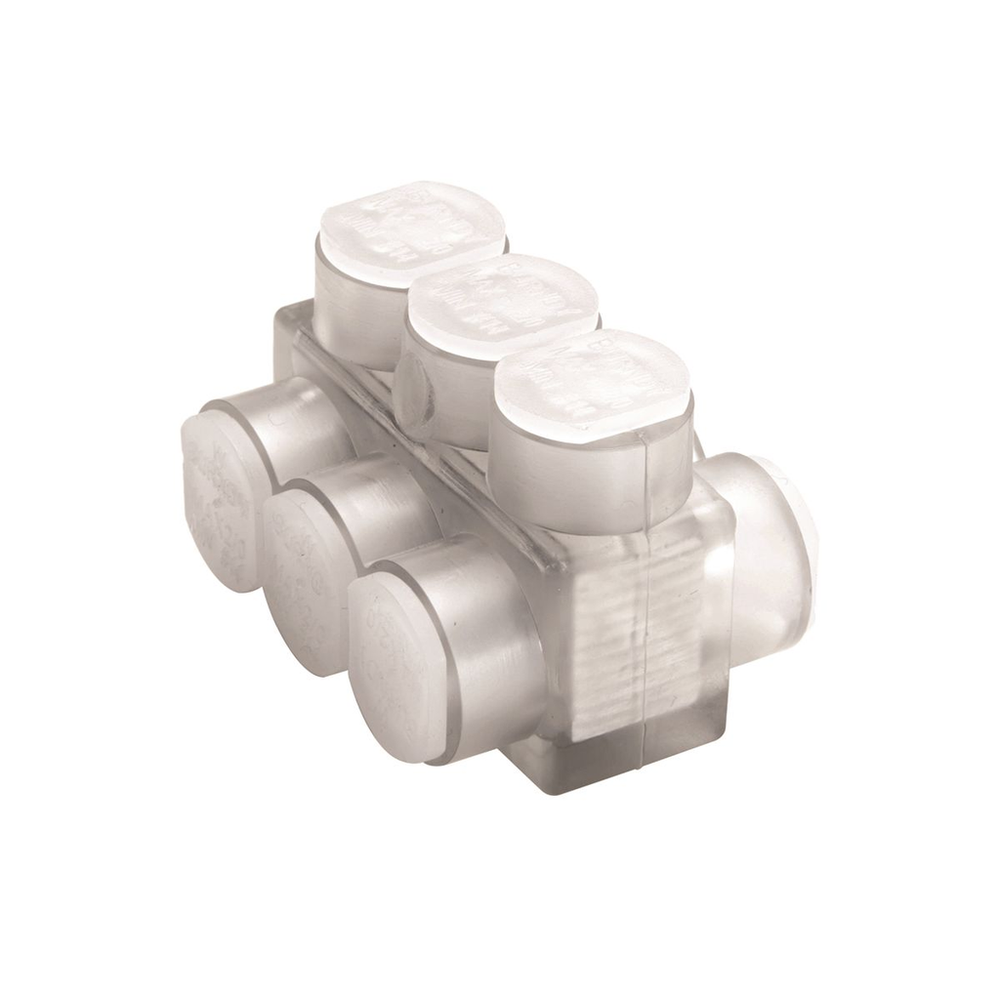

Burndy BIBD60012
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluminum Multiple Tap Connector, Clear Insulated, 12 Port, 2 Sided Entry, 4 AWG-600 kcmil, Al/Cu Rated.Aluminum Multiple Tap Connector, Clear Insulated, 12 Port, 2 Sided Entry, 4 AWG-600 kcmil, Al/Cu Rated
Burndy BIBD60012 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- No
- UL Recognized
- No
Specifications
- Application
- For Indoor Use Only, Copper Or Stranded Aluminum
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810232835
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810232836
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - AL Str Size
- 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil
- Conductor - AL Str Size Range
- 4 AWG - 600 kcmil
- Conductor - Copper Str Size
- 4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil
- Conductor - Copper Str Size Range
- 4 AWG - 600 kcmil
- Conductor Size
- 4 AWG-600 KCMIL
- Conductor Type
- AL C Str-Size;CU C Str-Size
- Connector Type
- Multi Tap
- Country of Origin
- US
- Description - Invoice
- 600-4 2-SIDED-12 UNITAP
- Description - Slang
- Clear Insulation
- Dimension - Height fraction
- 2.75 in
- Dimension - Height inch
- 2.75 in
- Dimension - Length Overall inch
- 15.53 in
- Dimension - L Length Overall mm
- 394 mm
- Dimension - Width inch
- 3.00 in
- Dimension - Width mm
- 76 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 3 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Hex Key
- 3/8
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Insulation
- Y
- Insulation Type
- Plastisol
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- Material - Hardware
- Aluminum
- MSDS Flag
- No
- Number Of Ports
- 12
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 45.3 lb.
- Package - GTIN - Package
- 30781810232836
- Package Height
- 19.875 in
- Package Length
- 12.5 in
- Package - Number of Sub Packs
- 15
- Package - Pack Description
- Package
- Package Quantity
- 15 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810232835
- Package - Total Units
- 15 EA
- Package Weight
- 45.3 lb.
- Package Width
- 9.875 in
- Physical Attribute - Number of Screws
- 12
- Physical Attribute - Screw Type
- Allen
- Plated
- N
- Plating Type
- Unplated
- Product Type
- RUN/TAP
- Special Features
- Clear Plastisol covered AL6061-T6 aluminum body, Clear Plastisol
- Standard
- UL 486A-486B
- Standard Package Quantity
- 15
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- UNITAP
- Sub Class Code
- B51BGUF
- Temperature Rating
- 194
- Trade Name
- UNITAP™
- Type
- BIBD, Multi-Port
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
- Width
- 3 in
