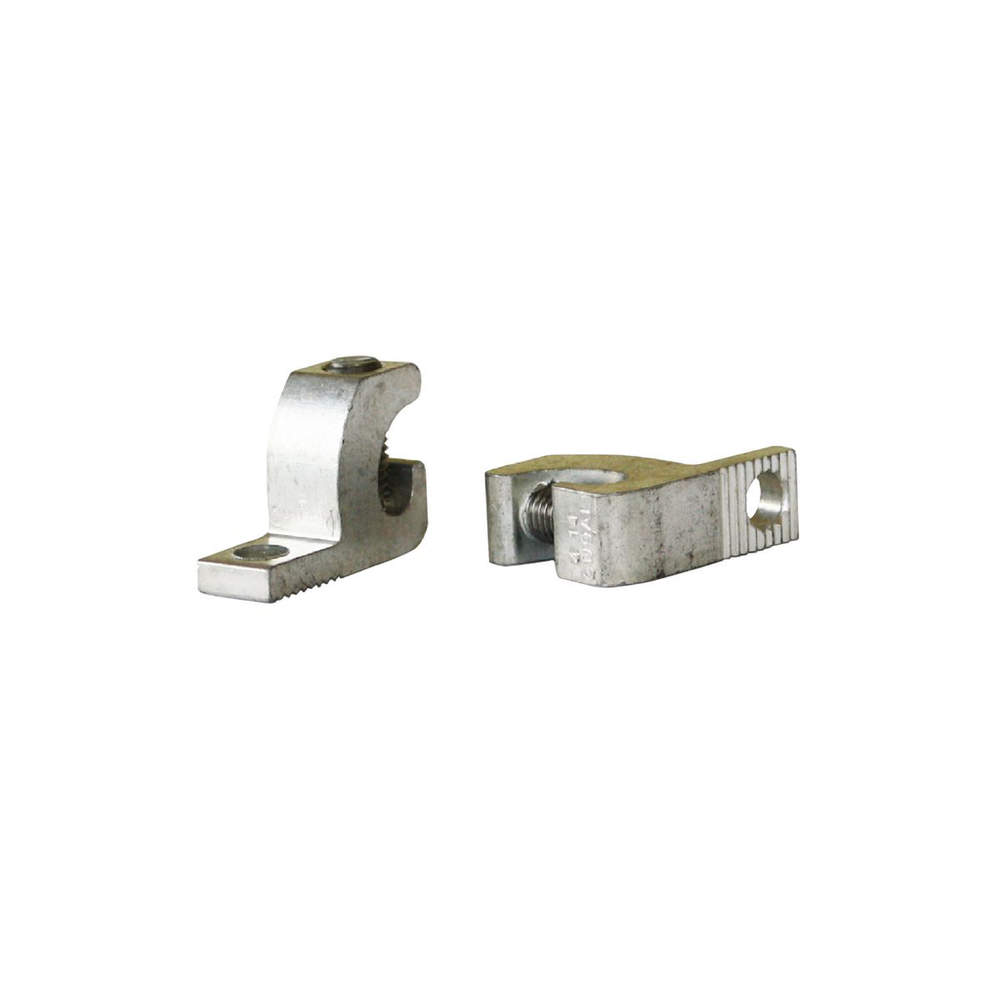

Burndy BGBL250
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluminum Lay-in Lug, 250 kcmil-#6 AWG, 7/16" Stud, Tin Plated.Aluminum Lay-in Lug, 250 kcmil-#6 AWG, 7/16" Stud, Tin Plated
Burndy BGBL250 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- EU RoHS Indicator
- Yes
Specifications
- Application
- For Copper And Aluminum Conductor Combinations Up To 90 DEG C, 600 Volt Applications
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Number of Sub Packs
- 175
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810124819
- Carton - Total Units
- 175 EA
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810124810
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - AL Str Size
- 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - AL Str Size Range
- 6 AWG-250 kcmil
- Conductor - Copper Solid Size
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Solid Size Range
- 6 AWG-4/0 AWG
- Conductor - Copper Str Size
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - Copper Str Size Range
- 6 AWG - 250 kcmil
- Conductor Type
- AL C Str-Size;CU C Str-Size;CU C Solid-Size
- Country of Origin
- US
- Description - Invoice
- 250-6 AL/CU LAY-IN LUG
- Dimension - D inch
- 1.18 in
- Dimension - Height fraction
- 1-4/5 in
- Dimension - Height inch
- 1.79 in
- Dimension - Hole Size inch
- 0.33 in
- Dimension - Hole Size mm
- 8 mm
- Dimension - Length Overall inch
- 2.20 in
- Dimension - L Length Overall mm
- 56 mm
- Dimension - N inch
- 0.4 in
- Dimension - Pad Width inch
- 0.80 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.80 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Hex Size
- 5/16
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-B
- Installation Torque Recommended in-lb
- 180 LBS/in
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- Material Type - Screw
- Steel - Zinc Plated
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 4.25 lb.
- Package - GTIN - Package
- 30781810124810
- Package Height
- 10.75 in
- Package Length
- 10.00 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810124819
- Package - Total Units
- 25 EA
- Package Weight
- 4.25 lb.
- Package Width
- 16.625 in
- Physical Attribute - Screw Type
- Allen
- Plated
- Y
- Plating Type
- Tin
- Product Type
- Mechanical
- Special Features
- Features: The Lay-In QIKLUG, Type BGBL Is Manufactured From High Strength 6061-T6 Aluminum, UL486B Listed, AL9CU Rated, For Copper And Aluminum Conductor Combinations Up To 90° C, 600 Volt Applications, UL Recognized For Grounding And Bonding, Ensures Reliability, Electro-Tin Plated, Provides Low Contact Resistance, Lay-In Feature, Eases Installation, Dimension E: 1 IN, Dimension T: 0.25 IN, Dimension D: 1.18 IN, Dimension K: 0.28 IN, Dimension N: 0.45 IN, Tongue Width: 0.88 IN, Installation Torque: Yes, Length: 2.18 IN, Stud/bolt Hole Size: 0.28 IN, Height: 1.72 IN
- Standard
- UL 486A-B
- Standard Package Quantity
- 25
- Standards - Industry Standards Met
- UL 486A-B
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- QIKLUG
- Sub Class Code
- B41BDFF
- Temperature Rating
- 194
- Trade Name
- QIKLUG™
- Type
- BGBL, Lay-In
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
- Width
- 0.80 in
