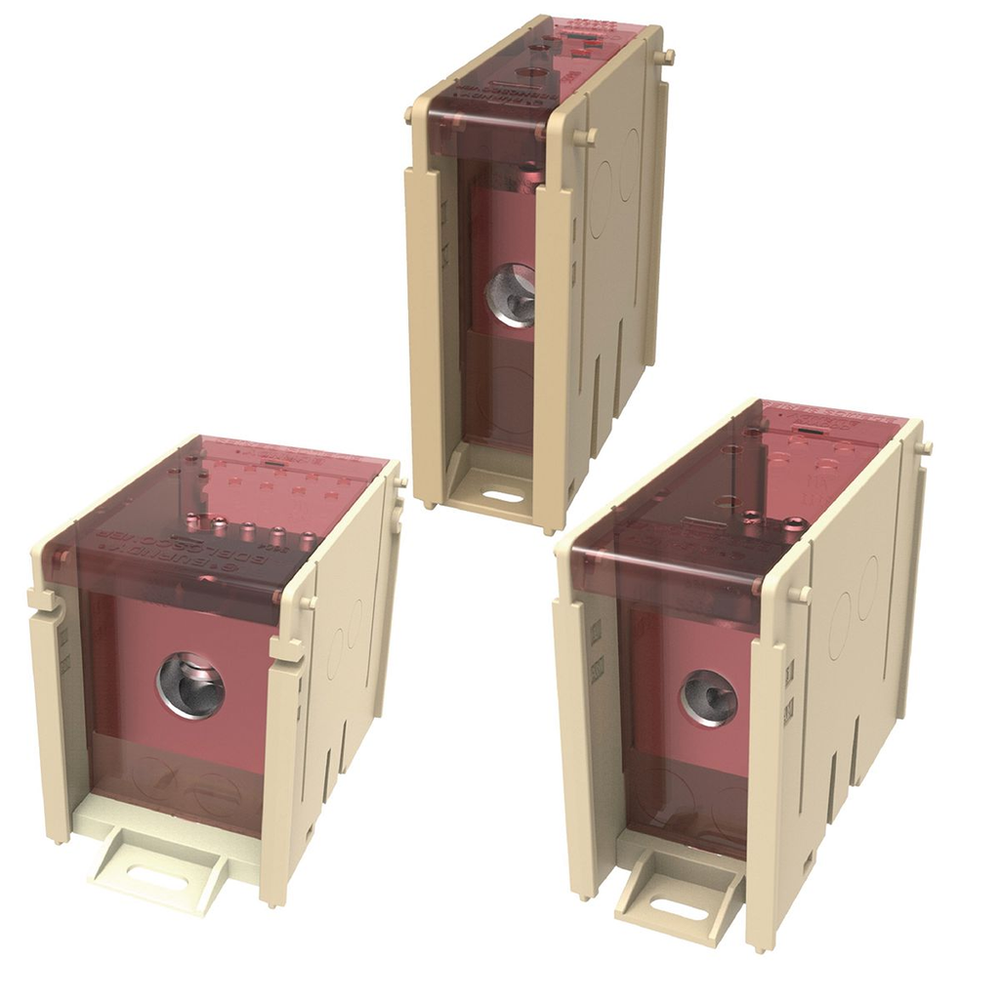

Burndy BDBLCS6V2FS
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
POWER DISTRIBUTION BLOCKS.Distribution block, Two pole Finger Safe 4 AWG-500 Kcmil (Run), Tap 4 AWG-500 Kcmil (Tap)
Burndy BDBLCS6V2FS is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- Yes
Specifications
- Amperage Rating
- 760 A
- Base Unit of Measure
- EA
- BOX SIZE
- 5.325x14.313x13.063 (in)
- Carton - Gross Weight per Pack
- 8.157 lb.
- Carton - Number of Sub Packs
- 3
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810676585
- Carton - Total Units
- 3
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810676586
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - AL Str Run Range
- 4 AWG - 500 kcmil
- Conductor - AL Str Tap Range
- 4 AWG - 500 kcmil
- Conductor - Copper Str Run Range
- 4 AWG - 500 kcmil
- Conductor - Copper Str Tap Range
- 4 AWG - 500 kcmil
- Conductor Type
- AL C Str-Run;CU C Str-Run;AL C Str-Tap;CU C Str-Tap
- Connector Type
- Power Distribution Block
- Country of Origin
- US
- Description - Slang
- Distribution Blocks
- Dimension - Height inch
- 4.15
- Dimension - Length Overall inch
- 6.17
- Dimension - L Length Overall mm
- 157
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Insulation
- Y
- Lead Time
- 12 wk
- Material
- Aluminum
- Number Of Poles
- 2
- Package - GTIN - Package
- 30781810676586
- Package Quantity
- 3 EA
- Package - Total Units
- 3 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810676584
- Pallet Height
- 48.350 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 632.304 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin
- Product Type
- RUN/TAP
- Rating - Minimum Voltage
- 600
- Standard Package Quantity
- 1
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B51BGSF
- Temperature Rating
- 194° F
- Trade Name
- VERSIPOLE™
- Voltage - Maximum
- 600 V
