Description

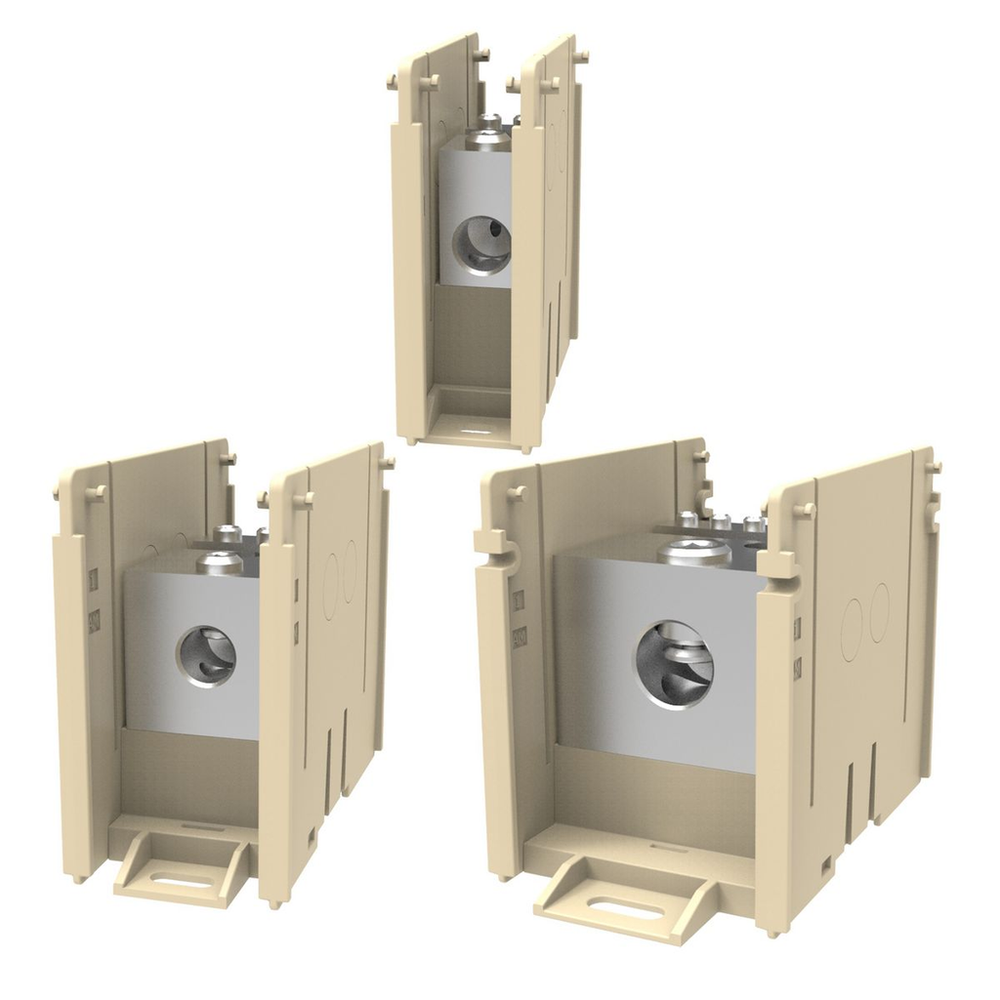

Distribution block, One pole Open Style 4 AWG-500 Kcmil (Run), 14-4 AWG (Tap).Distribution block, One pole Open Style 4 AWG-500 Kcmil (Run), 14-4 AWG (Tap)
Burndy BDBLCS6A1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- Yes
- EU RoHS Indicator
- Yes
Specifications
- Amperage Rating
- 760 A
- Application
- VERSI-POLEPower Distribution Blocks are designed to provide modular solutions to power distribution applications.
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 4.750x6.010x3.850 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 1.362 lb.
- Carton - Number of Sub Packs
- 1
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810675649
- Carton - Total Units
- 1
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810675640
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - AL Str Run Range
- 4 AWG - 500 kcmil
- Conductor - AL Str Tap Range
- 14 AWG - 4 AWG
- Conductor - Copper Str Run Range
- 4 AWG - 500 kcmil
- Conductor - Copper Str Tap Range
- 14 AWG - 4 AWG
- Conductor Type
- AL C Str-Run;CU C Str-Run;AL C Str-Tap;CU C Str-Tap
- Connector Type
- Power Distribution Block
- Country of Origin
- US
- Description - Invoice
- One pole Open Style 2-12500-4
- Description - Slang
- Distribution Blocks
- Dimension - Height inch
- 4.15
- Dimension - Length Overall inch
- 3.25
- Dimension - L Length Overall mm
- 83
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 3.600 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Insulation
- Y
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Number Of Poles
- 1
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 8.172 lb.
- Package - GTIN - Package
- 30781810675640
- Package Height
- 4.700 in
- Package Length
- 14.000 in
- Package - Number of Sub Packs
- 6
- Package - Pack Description
- Package
- Package Quantity
- 6 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810675649
- Package - Total Units
- 6 EA
- Package Weight
- 8.172 lb.
- Package Width
- 12.750 in
- Pallet - GTIN - Package
- 70781810675648
- Pallet Height
- 48.500 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1025.640 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin
- Product Type
- RUN/TAP
- Special Features
- Provides capability to create as many poles as required and Up to 30 tap conductors accommodated
- Standard Package Quantity
- 6
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- VERSIPOLE
- Sub Class Code
- B51BGSF
- Temperature Rating
- 194° F
- Trade Name
- VERSIPOLE™
- Type
- BDB
- Voltage - Maximum
- 600 V
- Width
- 3.600 in
