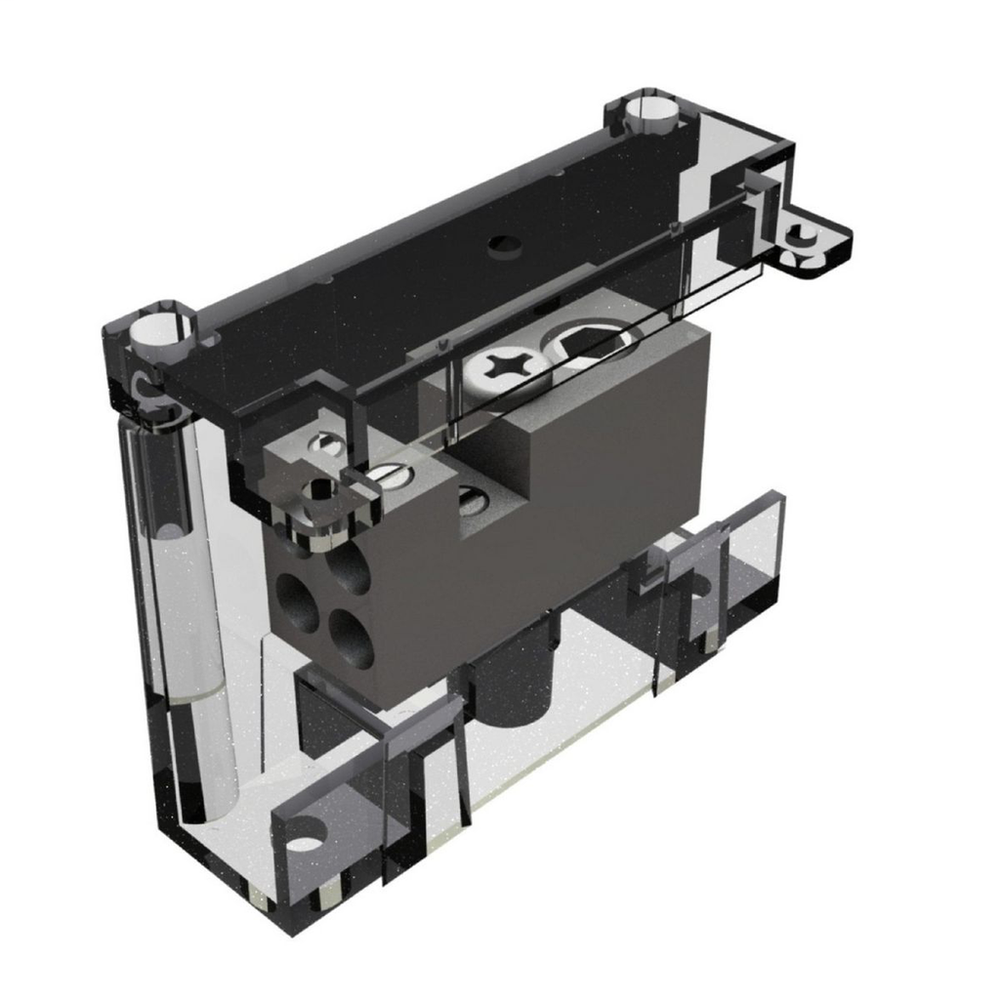

Burndy BDB223502
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
POWER DISTRIBUTION BLOCKS.Power Distribution Blocks BDB223502
Burndy BDB223502 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Listed Direct Burial
- No
- Certification - UL Recognized
- Yes
- Standards - RoHS Compliance Status
- CM
- UL Listed
- No
Conductor Related
- Conductor - AL Str Run
- 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil
- Conductor - AL Str Run Range
- 6 AWG-350 kcmil
- Conductor - AL Str Tap
- 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil
- Conductor - AL Str Tap Range
- 6 AWG-350 kcmil
- Conductor - Copper Str Run
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil
- Conductor - Copper Str Run Range
- 6 AWG-350 kcmil
- Conductor - Copper Str Tap
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil
- Conductor - Copper Str Tap Range
- 6 AWG-350 kcmil
Dimensions
- Dimension - Length Overall inch
- 5.31
- Dimension - L Length Overall mm
- 135
Electrical Ratings
- Amperage Rating
- 620 A
- Rating - Minimum Voltage
- 600
General
- Insulation
- Y
- Insulation Type
- Thermoplastic
- Material
- Aluminum
- Number Of Poles
- 2
- Plated
- Y
- Plating Type
- Tin
- Temperature Rating
- 194° F
- Trade Name
- VERSIPOLE™
- UPC
- 781810115251
- UPC 12 Digit
- 7818101152511
Logistics
- Minimum Pack Quantity
- 1
