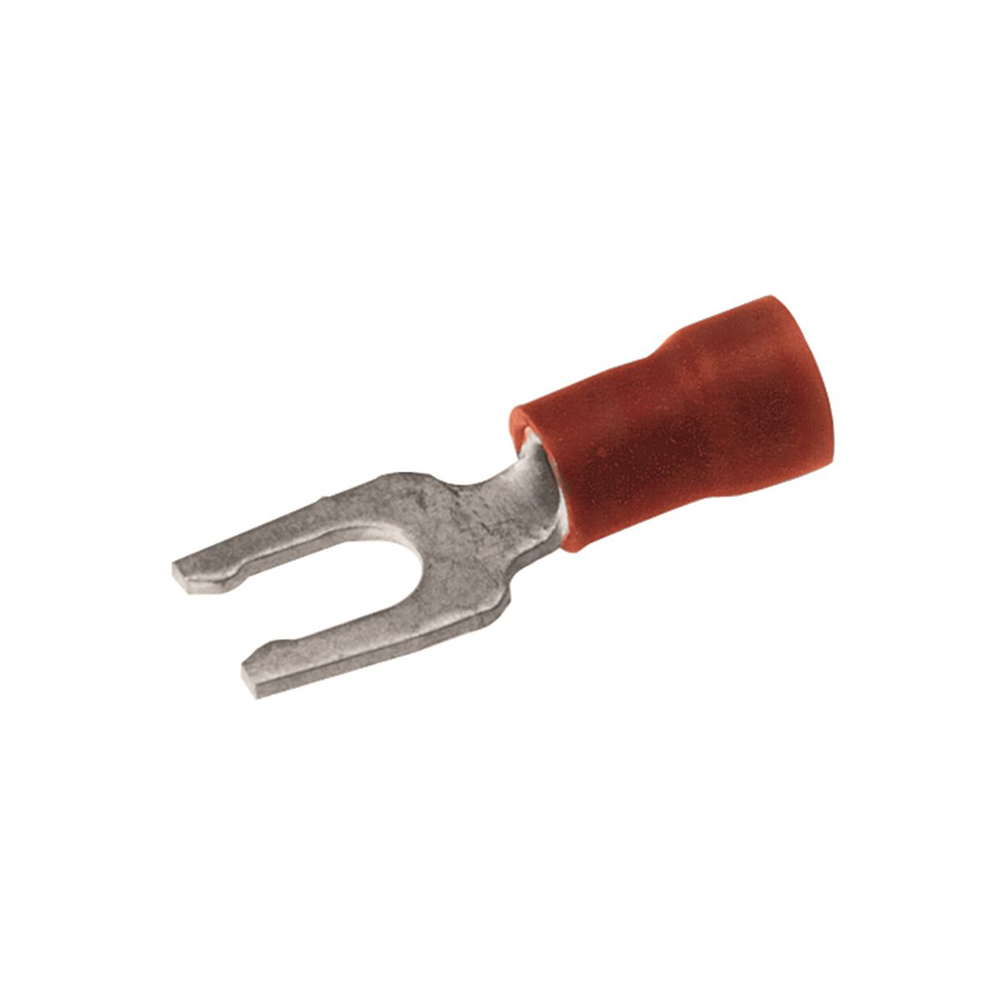

Burndy BA16EL6
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Vinyl Locking Fork Terminal For 22 - 16 AWG.Vinyl Locking Fork Terminal For 22 - 16 AWG
Burndy BA16EL6 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Fast Installation And Security
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 4.625x4.313x4.313 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 2.000 lb.
- Carton - Number of Sub Packs
- 1000
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810026946
- Carton - Total Units
- 1000
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810026947
- Certification Agency
- Proposition 65
- Class Code
- B57
- Conductor - Copper Solid Size Range
- 20 AWG -22 AWG; 16 AWG -18 AWG
- Conductor - Copper Str Size Range
- 20 AWG - 22 AWG; 16 AWG - 18 AWG
- Conductor Size
- 22 - 16 AWG
- Conductor Type
- CU C Str-Size
- Connector Type
- Locking Fork Terminal
- Country of Origin
- US
- Description - Invoice
- FORK-LOK, 22-16, TPCU
- Dimension - Bolt Size fraction
- #6
- Dimension - Hole Size fraction
- 7/50
- Dimension - Hole Size inch
- 0.14 in
- Dimension - Length Overall inch
- 0.87 in
- Dimension - Pad Width inch
- 0.28 in
- Dimension - Stud Size inch
- #6
- Dimension - Z inch
- 0.23 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.289 in
- Feature - Barrel Style
- Shrouded
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Insulation
- Y
- Insulation Type
- Vinyl
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1000 EA
- Package - Gross Weight per Pack
- 2 lb.
- Package - GTIN - Package
- 30781810026947
- Package Height
- 4 in
- Package Length
- 4 in
- Package - Number of Sub Packs
- 1000
- Package - Pack Description
- Package
- Package Quantity
- 1000 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810026946
- Package - Total Units
- 1000 EA
- Package Weight
- 2 lb.
- Package Width
- 4 in
- Pallet - GTIN - Package
- 70781810026945
- Pallet Height
- 47.375 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1827.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Type
- Locking Fork
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- TERMINAL
- Special Features
- Features: Locking Fork Tongue Design: Allows Fast Installation-Screw Only Has To Be Loosened For Termination, Internal Configuration Of The Fork: Prevents The Terminal From Coming Off The Screw Without Applying A Pulling Force, Locking Fork Is Made From A Copper Alloy: Permits Many Installations While Maintaining Proper Spring Retention Of Forks, 600 V Maximum, 105 DEG C Maximum, Employs A Locking Fork Tongue For Fast Installation And Security, Insulation Diameter (maximum): 0.145 IN, Package: Bulk, Installation Tool: Plier Type: Y10-22 Tool, Ratchet: MR8-89-1, MR15 Tool, Wire Strip Length: 13/64 IN, Color Code: Red, Wire Insulation Grip: No, Finish: Electro-Tin Plated, Temperature Rating: 105 DEG C Maximum
- Standard Package Quantity
- 1000
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- VINYLUG
- Sub Class Code
- B57BKNF
- Trade Name
- VINYLUG™
- Type
- BA-EL, Locking
- UL Listed
- Yes
- Width
- 0.289 in
