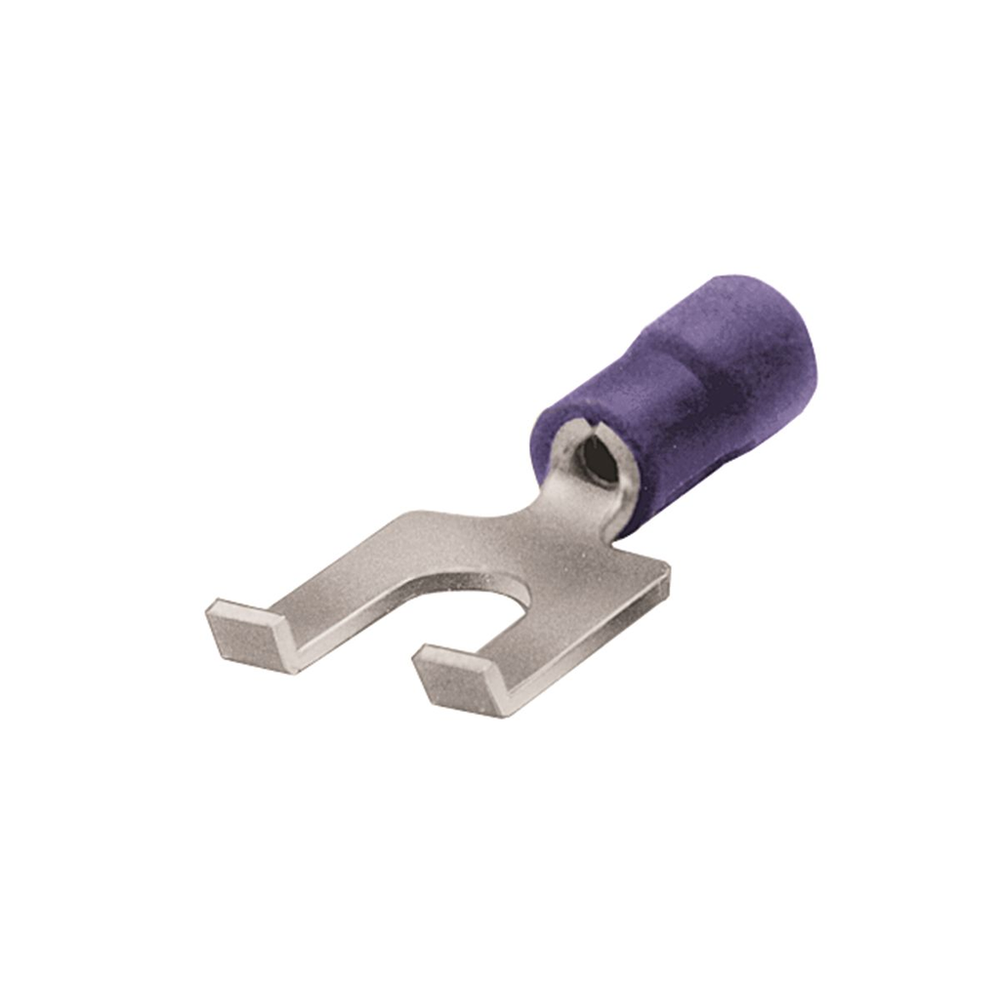

Burndy BA14EZ8
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Vinyl Flanged Fork Terminal For 16 - 14 AWG.Vinyl Flanged Fork Terminal For 16 - 14 AWG
Burndy BA14EZ8 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Fast Installation And Security
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x6.438x4.875 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 2.000 lb.
- Carton - Number of Sub Packs
- 1000
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810026571
- Carton - Total Units
- 1000
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810026572
- Certification Agency
- Proposition 65
- Class Code
- B57
- Conductor - Copper Solid Size
- 16 AWG;15 AWG;14 AWG
- Conductor - Copper Solid Size Range
- 16 AWG-14 AWG
- Conductor - Copper Str Size
- 16 AWG;14 AWG
- Conductor - Copper Str Size Range
- 16 AWG - 14 AWG
- Conductor Size
- 16 - 14 AWG
- Conductor Type
- CU C Str-Size
- Connector Type
- Flanged Fork Terminal
- Country of Origin
- US
- Description - Invoice
- FL FORK,16-14, 6-8 STU
- Dimension - Bolt Size fraction
- #8
- Dimension - Hole Size fraction
- 8/47
- Dimension - Hole Size inch
- 0.17 in
- Dimension - Length Overall inch
- 0.88 in
- Dimension - Pad Width inch
- 0.31 in
- Dimension - Stud Size inch
- #8
- Dimension - Z inch
- 0.26 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.318 in
- Feature - Barrel Style
- Shrouded
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Insulation
- Y
- Insulation Type
- Vinyl
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1000 EA
- Package - Gross Weight per Pack
- 2 lb.
- Package - GTIN - Package
- 30781810026572
- Package Height
- 4.5 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 1000
- Package - Pack Description
- Package
- Package Quantity
- 1000 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810026571
- Package - Total Units
- 1000 EA
- Package Weight
- 2 lb.
- Package Width
- 4.56 in
- Pallet - GTIN - Package
- 70781810026570
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 973.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Type
- Flanged Fork
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- TERMINAL
- Special Features
- Features: Flange Fork Tongue Design: Allows Fast Installation-Screw Only Has To Be Loosened For Termination, The Flanges On The End Of The Fork Terminal Aid In Preventing A Slightly Loose Terminal From Becoming Fully Disconnected From The Screw: Flanges Make Re-Securing A Loose Terminal Easier, 600 V Maximum, 105 DEG C Maximum, Employs A Flanged Fork Tongue For Fast Installation And Security, Insulation Diameter (maximum): 0.18 IN, Package: Bulk, Color Code: Blue, Wire Insulation Grip: No, Temperature Rating: 105 DEG C Maximum, Finish: Electro-Tin Plated, Installation Tool: Plier Type: Y10-22 Tool, Ratchet: MR8-89-1 Tool
- Standard
- UL467
- Standard Package Quantity
- 1000
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- VINYLUG
- Sub Class Code
- B57BKNF
- Trade Name
- VINYLUG™
- Type
- Flange Fork
- UL Listed
- Yes
- Width
- 0.318 in
