Burndy B8426
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

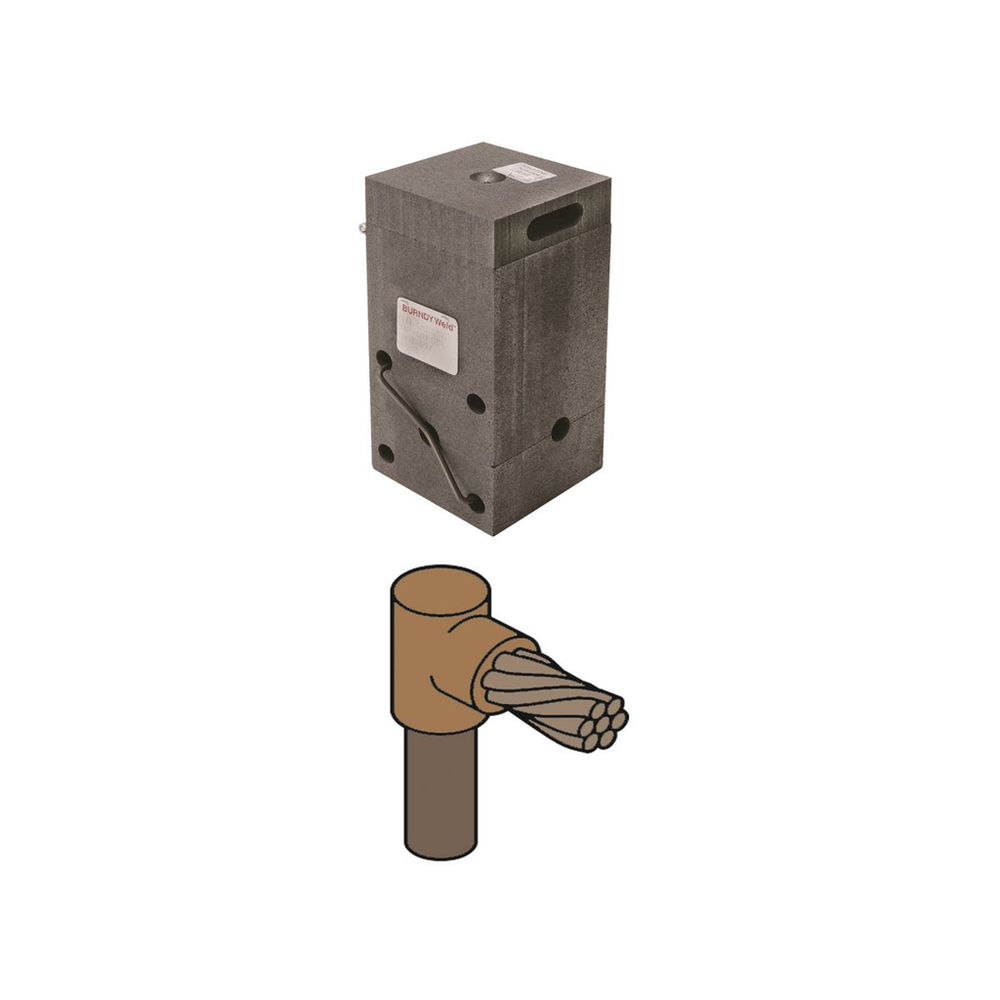

Mold, Horizontal Cable Terminal to Ground Rod, 4 AWG, 45 Weld Metal, 3/4" Ground Rod.Horizontal Cable Terminal to Ground Rod Mold
Burndy B8426 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Application
- For Terminating Horizontal Copper Cable At The Top Of A Vertical Ground Rod
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- BOX SIZE
- 11.438x4.813x4.813 (in)
- Buy American Compliant
- No
- Carton - Gross Weight per Pack
- 3.500 lb.
- Carton - Number of Sub Packs
- 1
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810386897
- Carton - Total Units
- 1
- Class Code
- B43
- Conductor - Copper Str Tap
- 4 AWG
- Conductor - Copper Str Tap Range
- 4 AWG
- Conductor - Rod Size
- 3/4 in
- Conductor - Rod Size Range
- 3/4 in
- Conductor Type
- CU C Str-Tap;Rod-Size
- Country of Origin
- US
- Description - Invoice
- BW BCR1 4 TO 3/4
- Each - Number of Sub Packs
- 1 EA
- Each - Pack Description
- Each
- Each - Width
- 4.5 in
- Freight Class Code
- 16027000
- Harmonization Code
- 6815190000
- Image Actual Or Representative
- A
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Pallet - GTIN - Package
- 70781810386896
- Pallet Height
- 40.063 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 717.000 lb.
- Pallet Width
- 40.000 in
- Product Type
- Molds
- Special Features
- Features: Type BCR-1 Molds Are Used To Terminate Horizontal Copper Cable At The Top Of A Vertical Ground Rod, Size Range Is 6 AWG Through 1000 KCMIL Concentric Stranded Copper Conductors, 1/2 IN Through 1 IN For The Ground Rod, Conductor Type: Concentric Stranded Copper, Ground Rod Size: 3/4 IN, Recommended Accessories: B38-3922-00 Mold Cleaning Brush, B38-0135-00 Cable Cleaning Brush, B38-0304-00 File, B38-0330-00 Cable Clamp, Cartridge Type: Standard, Required Tools: B38-0309-00 Flint Ignitor
- Standard Package Quantity
- 1
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- BURNDYWELD
- Sub Class Code
- B43BF3F
- UL Listed
- Yes
- Width
- 4.5 in
