Description

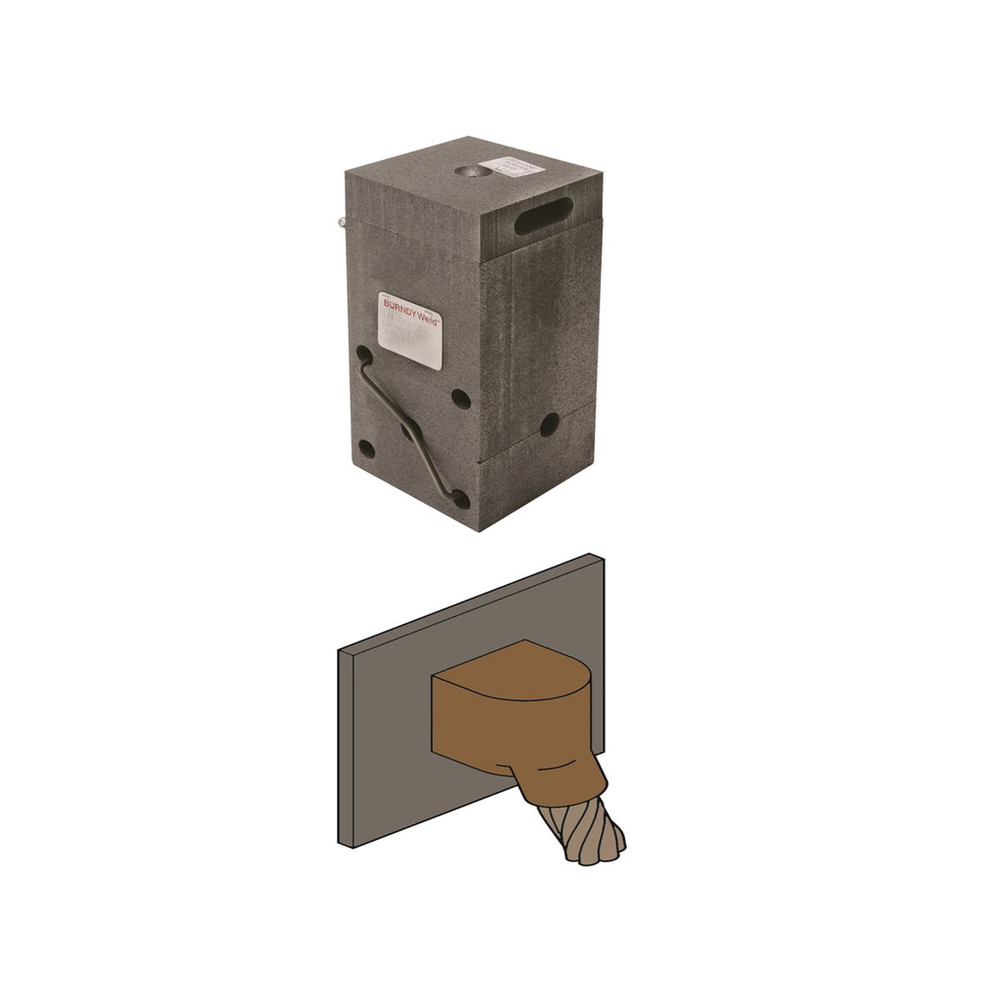

Mold, Angular Cable Drop to Vertical Steel Surface, 1/0 AWG, 90 Weld Metal.Angular Cable Drop to Vertical Steel Surface - Flat Steel Mold
Burndy B590 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Joining End Of A Copper Cable At A 45 DEG Angle To A Vertical Steel Surface
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 8.563x3.938x3.938 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 4.000 lb.
- Carton - Number of Sub Packs
- 1
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810393963
- Carton - Total Units
- 1
- Class Code
- B43
- Conductor - Copper Str Size
- 1/0 AWG
- Conductor Type
- CU C Str-Size;Pipe Rigid-Size
- Country of Origin
- US
- Description - Invoice
- BW BCS3 1/0 to sFLAT
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 3.625 in
- Freight Class Code
- 16027000
- Harmonization Code
- 6815190000
- Image Actual Or Representative
- A
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Pallet - GTIN - Package
- 70781810393962
- Pallet Height
- 40.000 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1965.000 lb.
- Pallet Width
- 40.000 in
- Product Type
- Molds
- Special Features
- Features: Type BCS-3 Molds Are Used To Join The End Of A Copper Cable At A 45 DEG Angle To A Vertical Steel Surface, Size Range Is 6 AWG Through 1000 KCMIL Concentric Stranded Copper Conductors, Cable To Flat Steel, Cable to Pipe Connection, Recommended Accessories: B106-32 Vertical Chain Clamp With B-106 Handles For 4 IN Pipe And Smaller, B40-0106-27 20 IN Chain Extension For 4 IN To 10 IN Pipe Use (2) 20 IN Chain Extensions For Pipe Sizes Between 10 IN And 16 IN, B38-3922-00 Mold Cleaning Brush, B38-0135-00 Cable Cleaning Brush, B38-0101-00 Rasp, Conductor Type: Concentric Stranded Copper, Pipe Size: 12 IN And Up, Required Tools: B38-0309-00 Flint Ignitor, Cartridge Type: Standard
- Standard Package Quantity
- 1
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- BURNDYWELD
- Sub Class Code
- B43BF3F
- Trade Name
- BURNDYWeld®
- UL Listed
- Yes
- Width
- 3.625 in
