Description

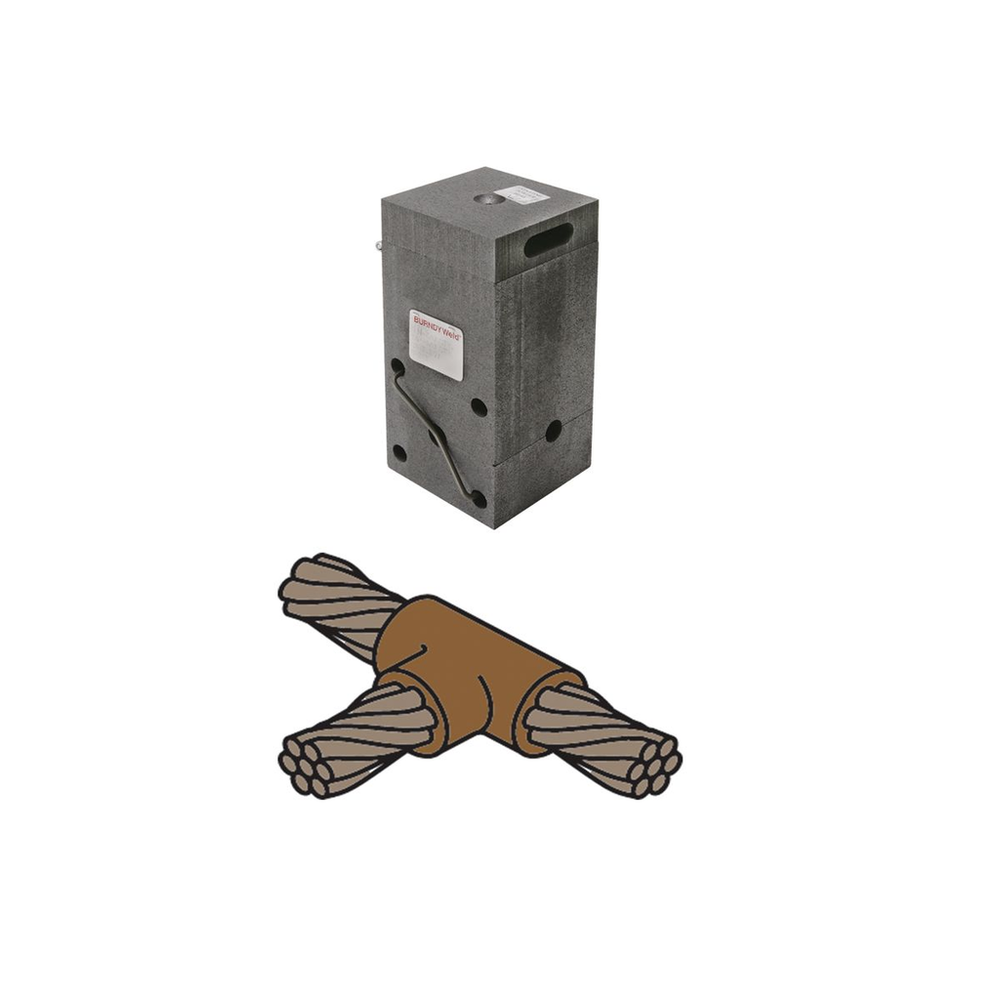

Mold, Horizontal Cable Tap to Horizontal Cable Run, 250 kcmil (Run & Tap), 150 Weld Metal.Horizontal Cable Tap to Horizontal Cable Run Mold
Burndy B247 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Joining Horizontal Cable Tap To A Horizontal Run Cable
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 8.563x3.938x3.938 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 4.000 lb.
- Carton - Number of Sub Packs
- 1
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810378724
- Carton - Total Units
- 1
- Class Code
- B43
- Conductor - Copper Str Run
- 250 kcmil
- Conductor - Copper Str Run Range
- 250 kcmil
- Conductor - Copper Str Tap
- 250 kcmil
- Conductor - Copper Str Tap Range
- 250 kcmil
- Conductor Type
- CU C Str-Run;CU C Str-Tap
- Country of Origin
- US
- Description - Invoice
- BW BCC2 TEE 250R - 250T
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 3.625 in
- Freight Class Code
- 16027000
- Harmonization Code
- 6815190000
- Image Actual Or Representative
- A
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Pallet - GTIN - Package
- 70781810378723
- Pallet Height
- 40.000 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1965.000 lb.
- Pallet Width
- 40.000 in
- Product Type
- Molds
- Special Features
- Features: Type BCC-2 Molds Are Used To Join Horizontal Cable Tap To A Horizontal Run Cable, Size Range Is 6 AWG Through 750 KCMIL Concentric Stranded Copper Conductors, Conductor Type: Concentric Stranded Copper, Recommended Accessories: B40-0319-03 Mold Cleaner For Cartridge Sizes #90 - #500, B38-3922-00 Mold Cleaning Brush, B38-0135-00 Cable Cleaning Brush, B38-0330-00 Cable Clamp, Cartridge Type: Standard, Required Tools: B38-0309-00 Flint Ignitor
- Standard Package Quantity
- 1
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- BURNDYWELD
- Sub Class Code
- B43BF3F
- Trade Name
- BURNDYWeld®
- UL Listed
- Yes
- Width
- 3.625 in
