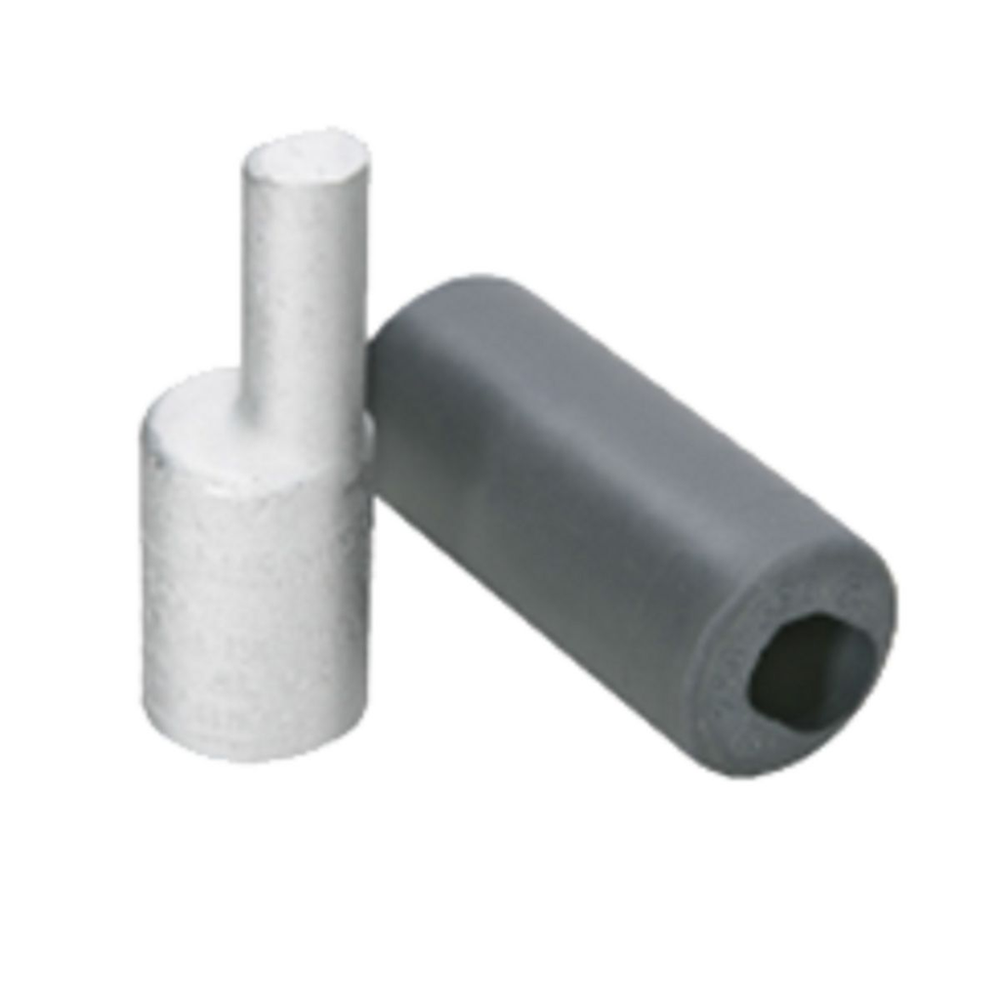

Burndy AYPO900
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
WIRE: 900-600 kcmil AL AL9, STRIP LENGTH: 2-3/8",DIE(CRIMPS):U42ART(4), Install with Y39,Y750,Y46, UL LISTED 90 C, 600 VOLTS.900 kcmil, Aluminum, Termination, 0.81 Inch Pin Dia, 1.82 Inch Pin Length, AL9CU
Burndy AYPO900 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- EU RoHS Indicator
- Under Review
Specifications
- Application
- Wire Termination
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x7.373x6.438 (in)
- Buy American Compliant
- No
- Carton - Gross Weight per Pack
- 3.000 lb.
- Carton - Number of Sub Packs
- 6
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00621945437395
- Carton - Total Units
- 6
- Case - SCC-14 Next Lower Level Sub Pack
- 30621945437396
- Certification Agency
- Proposition 65
- ChannelSightWidgetId
- 705
- Class Code
- B55
- Color Code
- Gray
- Conductor - AL Str Size
- 900 KCMIL
- Conductor - AL Str Size Range
- 900 kcmil
- Conductor - Copper DLO Size
- -
- Conductor - Copper Flex I Size
- -
- Conductor - Copper Solid Size
- 600 kcmil
- Conductor - Copper Str Compact Size
- 900 KCMIL
- Conductor - Copper Str Size
- 900 KCMIL
- Conductor - Copper Str Size Range
- 900 kcmil
- Conductor - Material
- ALUMINUM / COPPER
- Conductor Size
- 900 KCMIL
- Conductor Type
- CODE
- Connector Type
- OFFSET PIN
- Country of Origin
- US
- Description - Invoice
- 900 AL OFFSET HYPLUG
- Description - Slang
- Compression Aluminum Pin Adapters
- Die Index
- 303
- Dimension - A Outside Diameter inch
- 1.50 in
- Dimension - B Length inch
- 2.17 in
- Dimension - B Outside Diameter inch
- 0.91 in
- Dimension - Length Overall inch
- 4.27 in
- Dimension - L Length Overall mm
- 114 mm
- Dimension - P inch
- 1.82 in
- Dimension - Strip Length inch
- 2-3/8 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.50 in
- Equivalent Pin Size
- 650 kcmil
- Finish
- Tin-Plated
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Insulation
- Y
- Insulation Type
- TPV
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- ALUMINUM
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - GTIN - Package
- 30621945437396
- Package Quantity
- 6 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70621945437394
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 933.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Crimps Required
- 2
- Pin Type
- Solid
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Standard
- UL 486A-486B
- Standard Package Quantity
- 6
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- CONNECTOR
- Sub Class Code
- B55BIDF
- Temperature Rating
- 194
- Terminal Type
- Pin
- Trade Name
- HYPLUG™
- Type
- Aluminum Pin Adapters
- UL Listed
- Yes
- Voltage - Maximum
- 35000 V
- Voltage Rating
- 35 kV
- Width
- 1.50 in
- Wire Size
- 900 KCMIL
