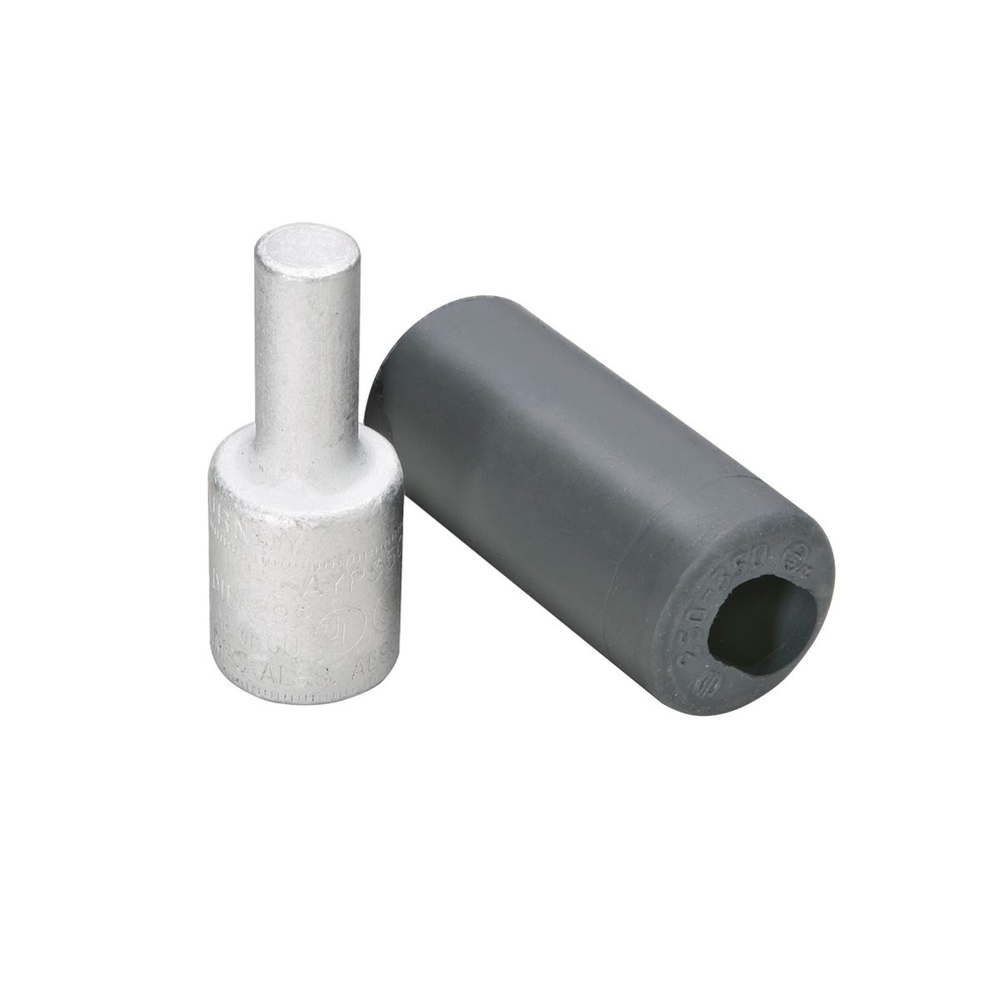

Burndy AYP2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluminum Compression Pin Adapter, 2 AWG, 0.23" Plug Dia, 0.68" Plug Length, Al/Cu Rated, Tin Plated.2 AWG, Aluminum, Termination, 0.23 Inch Pin Dia, 0.68 Inch Pin Length, AL9CU
Burndy AYP2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Wire Termination
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x7.373x6.438 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 1.250 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810737545
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810737546
- Certification Agency
- Proposition 65
- ChannelSightWidgetId
- 705
- Class Code
- B55
- Color Code
- Tan
- Conductor - AL Str Size
- 2 AWG
- Conductor - AL Str Size Range
- 2 AWG
- Conductor - Copper DLO Size
- 4 AWG
- Conductor - Copper DLO Size Range
- 2 AWG
- Conductor - Copper Flex I Size
- 2 AWG
- Conductor - Copper Flex I Size Range
- 2 AWG
- Conductor - Copper Solid Size
- 2 AWG
- Conductor - Copper Solid Size Range
- 2 AWG
- Conductor - Copper Str Compact Size
- 2 AWG
- Conductor - Copper Str Size
- 2 AWG
- Conductor - Copper Str Size Range
- 2 AWG
- Conductor - Material
- ALUMINUM / COPPER
- Conductor Size
- 2 AWG
- Conductor Type
- CODE/FLEX
- Connector Type
- INLINE PIN
- Country of Origin
- US
- Description - Invoice
- 2STR AL HYPLUG
- Description - Slang
- Compression Aluminum Pin Adapters
- Die Index
- 296
- Dimension - A Outside Diameter inch
- 0.60 in
- Dimension - B Length fraction
- 1 in
- Dimension - B Length inch
- 1.00 in
- Dimension - B Outside Diameter inch
- 0.23 in
- Dimension - Length Overall inch
- 1.85 in
- Dimension - L Length Overall mm
- 47 mm
- Dimension - P inch
- 0.68 in
- Dimension - Strip Length inch
- 1-1/16 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.6 in
- Equivalent Pin Size
- 4 AWG
- Finish
- Tin-Plated
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Insulation
- Y
- Insulation Type
- EPDM Rubber
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- ALUMINUM
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 1.25 lb.
- Package - GTIN - Package
- 30781810737546
- Package Height
- 4.50 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810737545
- Package - Total Units
- 25 EA
- Package Weight
- 1.25 lb.
- Package Width
- 6.13 in
- Pallet - GTIN - Package
- 70781810737544
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 415.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Crimps Required
- 1
- Pin Type
- Solid
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Standard
- UL 486A-486B
- Standard Package Quantity
- 25
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYPLUG
- Sub Class Code
- B55BIDF
- Temperature Rating
- 194
- Terminal Type
- Pin
- Trade Name
- HYPLUG™
- Type
- Aluminum Pin Adapters
- UL Listed
- Yes
- Voltage - Maximum
- 35000 V
- Voltage Rating
- 35 kV
- Width
- 0.6 in
- Wire Size
- 2 AWG
