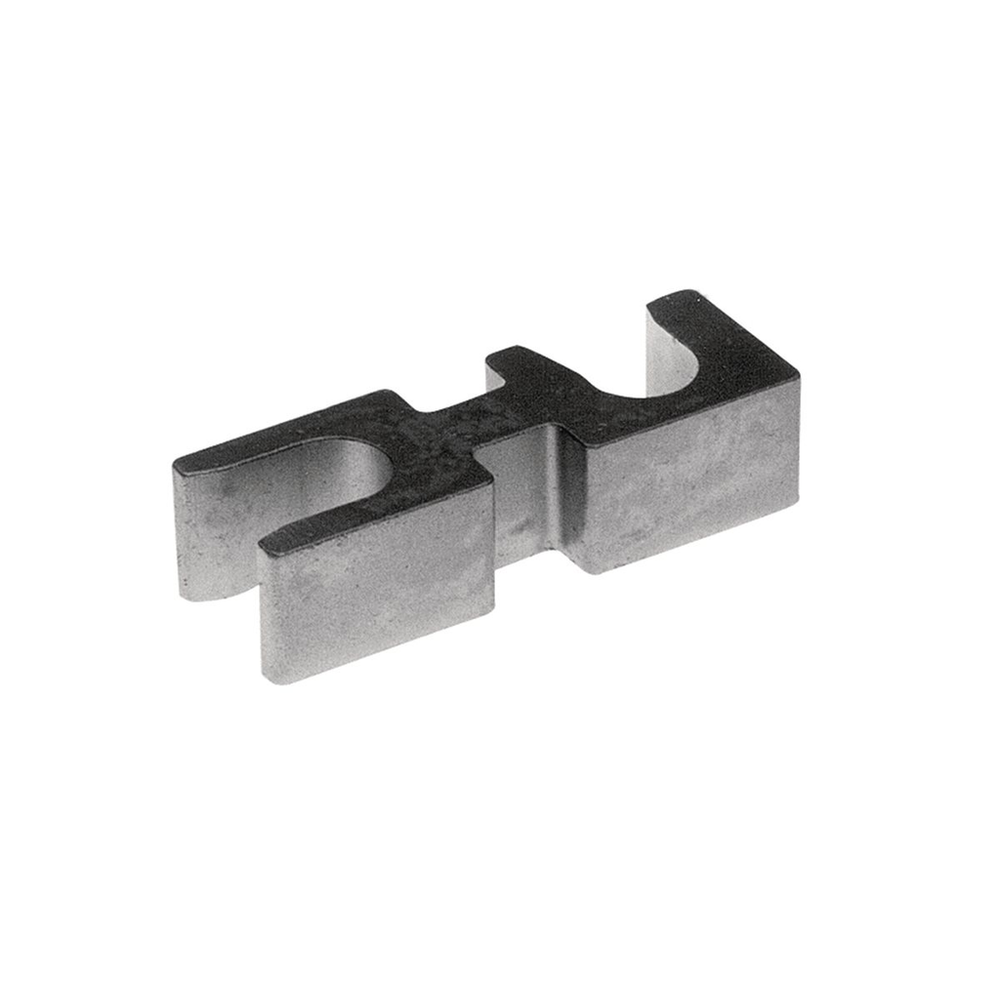

Burndy ASA800U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Copper Stacking Adapter, 2 Slots, 800 kcmil, Al/Cu Rated, Tin Plated.Terminal Stacking Adaptor, Al/Cu, Tin Plated
Burndy ASA800U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- No
- UL Recognized
- No
Specifications
- Application
- For Aluminum And Copper Terminals
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x6.438x4.875 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 2.000 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810521021
- Carton - Total Units
- 10
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810521022
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - AL Str Size
- 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil
- Conductor - AL Str Size Range
- 1/0 AWG-800 kcmil
- Conductor - Copper Str Size
- 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil;800 kcmil
- Conductor - Copper Str Size Range
- 1/0 -800 kcmil
- Conductor Type
- AL C Str-Size;CU C Str-Size
- Country of Origin
- US
- Description - Invoice
- 800 KCMIL STACKING ADAPT
- Description - Slang
- Stacking Adapters
- Dimension - Bolt Size inch
- 3.50 in
- Dimension - Height fraction
- 1-1/8 in
- Dimension - Height inch
- 1.13 in
- Dimension - Length Overall inch
- 0.78 in
- Dimension - L Length Overall mm
- 20 mm
- Dimension - Pad Width inch
- 1.00 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 480 LBS/in
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- Material - Hardware
- DURIUM™ Silicon Bronze
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 2 lb.
- Package - GTIN - Package
- 30781810521022
- Package Height
- 4.5 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 10
- Package - Pack Description
- Package
- Package Quantity
- 10 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810521021
- Package - Total Units
- 10 EA
- Package Weight
- 2 lb.
- Package Width
- 4.56 in
- Pallet - GTIN - Package
- 70781810521020
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 973.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Number of Screws
- 2
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Plated
- Y
- Plating Type
- Tin
- Product Type
- Mechanical
- Rating - Minimum Voltage
- 600
- Special Features
- Features: The HYSTACK Adaptor Is Specially Designed To Allow Standard Terminals To Be Stacked On Two Or Four Hole NEMA Transformer Or Equipment Terminal Pads, HYSTACK Is Tin-Plated, High-Conductivity Aluminum To Provide Optimum Corrosion Resistance, Only Three Sizes Accommodate Terminals From 250 MCM Through 1000 MCM To Help Keep Costly Inventories To A Minimum, Width: 1 IN, Height: 1.13 IN
- Standard Package Quantity
- 10
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYSTACK
- Sub Class Code
- B51BGLF
- Temperature Rating
- 194° F
- Trade Name
- HYSTACK™
- Type
- Stacking Adapters
- UL Listed
- Yes
- Width
- 1 in
