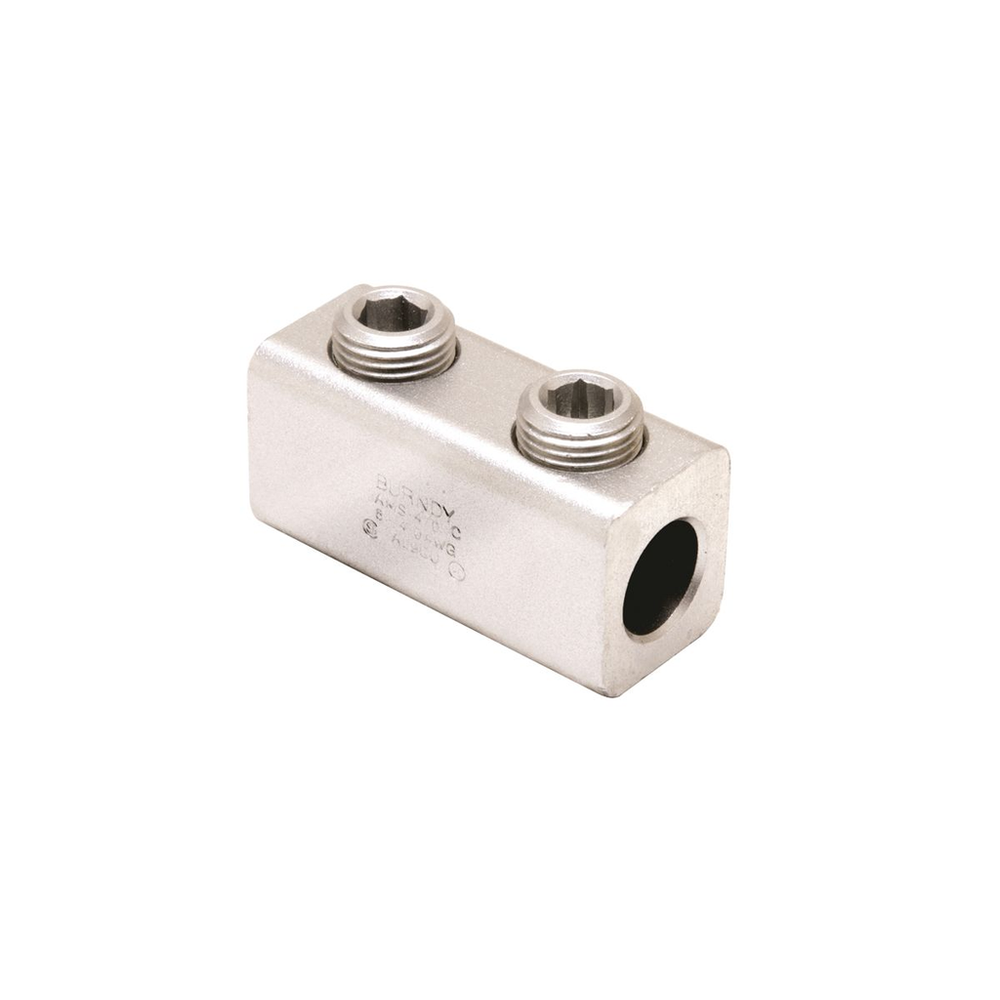

Burndy AMS500
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluminum Mechanical Splice, 500 kcmil-3/0 AWG, 13/16" Screw Dia, 4 Screws, 3/8" Hex Size, Al/Cu Rated, Tin Plated.Aluminum Mechanical Splice, 500 kcmil-3/0 AWG, 13/16" Screw Dia, 4 Screws, 3/8" Hex Size, Al/Cu Rated, Tin Plated
Burndy AMS500 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- No
Specifications
- Application
- For Use With Copper And Aluminum Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Number of Sub Packs
- 54
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810241059
- Carton - Total Units
- 54 EA
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810241050
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - ACSR Cmpt Size
- 600 kcmil
- Conductor - ACSR Str Size
- 500 kcmil
- Conductor - AL Str Run
- 3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil
- Conductor - AL Str Run Range
- 3/0 AWG-500 kcmil
- Conductor - AL Str Size
- 3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil
- Conductor - AL Str Size Range
- 3/0 AWG-500 kcmil
- Conductor - AL Str Tap
- 3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil
- Conductor - AL Str Tap Range
- 3/0 AWG-500 kcmil
- Conductor - Copper Solid Run
- 3/0 AWG;4/0 AWG
- Conductor - Copper Solid Run Range
- 3/0 AWG-4/0 AWG
- Conductor - Copper Solid Size
- 3/0 AWG;4/0 AWG
- Conductor - Copper Solid Size Range
- 3/0 AWG-4/0 AWG
- Conductor - Copper Solid Tap
- 3/0 AWG;4/0 AWG
- Conductor - Copper Solid Tap Range
- 3/0 AWG-4/0 AWG
- Conductor - Copper Str Compact Size
- 600 kcmil
- Conductor - Copper Str Run
- 3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Conductor - Copper Str Run Range
- 3/0 AWG-500 kcmil
- Conductor - Copper Str Size
- 500 kcmil
- Conductor - Copper Str Size Range
- 3/0 AWG-500 kcmil
- Conductor - Copper Str Tap
- 3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Conductor - Copper Str Tap Range
- 3/0 AWG-500 kcmil
- Conductor Size
- 3/0 AWG-500 KCMIL
- Connector Type
- In-Line
- Country of Origin
- US
- Depth
- 0.56 in
- Description - Invoice
- 500-3/0 DUAL RATED SPLIC
- Description - Slang
- Universal Splices
- Die Size
- Burndy 317
- Dimension - H1 Height inch
- 1.38 in
- Dimension - Height fraction
- 1-3/8
- Dimension - Length Overall inch
- 4.78 in
- Dimension - L Length Overall mm
- 121 mm
- Dimension - Width fraction
- 1-1/4 in
- Dimension - Width inch
- 1.25 in
- Dimension - Width mm
- 32 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.25 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Hex Size
- 3/8
- Image Actual Or Representative
- A
- Industry Standard(s)
- ANSI C119.4
- Installation Torque Recommended in-lb
- 375 LBS/in
- Lead Time
- 10 wk
- Length
- 4.63 in
- Lowest Level UOM
- Each
- Material
- Aluminum
- Material - Hardware
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 1.44 lb.
- Package - GTIN - Package
- 30781810241050
- Package Height
- 5.00 in
- Package Length
- 3.00 in
- Package - Number of Sub Packs
- 3
- Package - Pack Description
- Package
- Package Quantity
- 3 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810241059
- Package - Total Units
- 3 EA
- Package Weight
- 1.44 lb.
- Package Width
- 4.12 in
- Physical Attribute - Number of Screws
- 4
- Physical Attribute - Screw Type
- Allen
- Plated
- Y
- Plating Type
- Tin
- Product Type
- SPLICE REDUCER
- Rating - Minimum Voltage
- 600
- Special Features
- Features: All Splicer/Reducers Are Dual Rated For Use With Aluminum And Copper Conductors And Are Constructed From High Strength, Tin Plated Aluminum, PENTROX Oxide Inhibiting Joint Compounds Are Recommended For All Aluminum Applications, All Connectors Are Tin-Plated: Provide Low Contact Resistance And Prevents Galvanic Corrosion, Connectors Feature Rounded Bottoms: Facilitates Taping, Solid Center Barrier: Prevents Contact Of Dissimilar Metals, Large Screw Diameters: Ensures Greater Surface Contact With Wires For Maximum Pullout Force, Large Cable Ranges: Each Splice Is Also An Effective Reducing Connector, Conductor Type: Copper, Aluminium, Number Of Screws: 4, Hex Size: 3/8 IN, Screw Diameter: 13/16 IN
- Standard
- ANSI C119.4
- Standard Package Quantity
- 3
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- SPLICER/REDUCER
- Sub Class Code
- B51BGHF
- Temperature Rating
- 194° F
- Type
- AMS, Dual Rated
- UL Listed
- Yes
- Width
- 1.25 in
