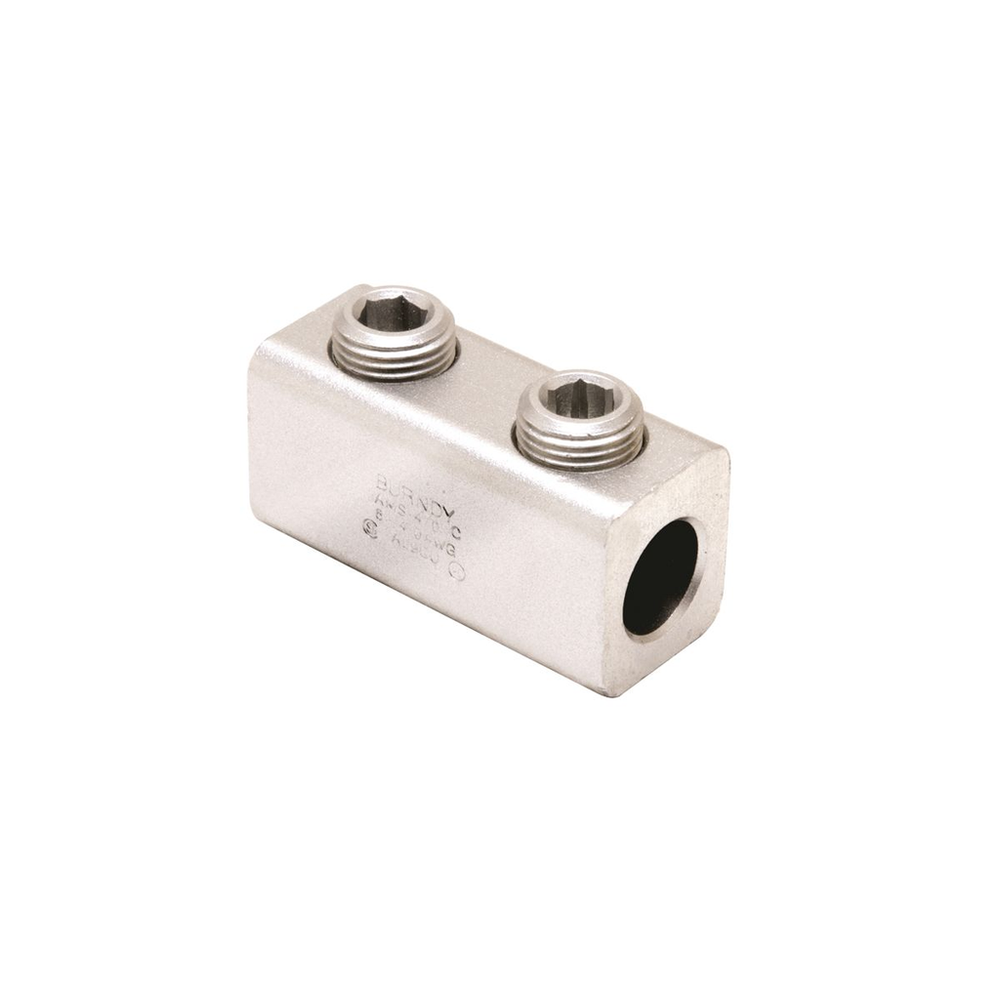

Burndy AMS4/0
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluminum Mechanical Splice, 4/0-6 AWG, 9/16" Screw Dia, 2 Screws, 5/16" Hex Size, Al/Cu Rated, Tin Plated.Aluminum Mechanical Splice, 4/0-6 AWG, 9/16" Screw Dia, 2 Screws, 5/16" Hex Size, Al/Cu Rated, Tin Plated
Burndy AMS4/0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- No
Specifications
- Application
- For Use With Copper And Aluminum Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Number of Sub Packs
- 240
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810241028
- Carton - Total Units
- 240 EA
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810241029
- Certification Agency
- Proposition 65
- ChannelSightWidgetId
- 705
- Class Code
- B51
- Conductor - ACSR Cmpt Size
- 250 kcmil-300 kcmil
- Conductor - ACSR Str Size
- 4/0 AWG & 250 kcmil
- Conductor - AL Str Run
- 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - AL Str Run Range
- 6 AWG-4/0 AWG
- Conductor - AL Str Size
- 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - AL Str Size Range
- 6 AWG-4/0 AWG
- Conductor - AL Str Tap
- 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - AL Str Tap Range
- 6 AWG-4/0 AWG
- Conductor - Copper Solid Run
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Solid Run Range
- 6 AWG-4/0 AWG
- Conductor - Copper Solid Size
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Solid Size Range
- 6 AWG-4/0 AWG
- Conductor - Copper Solid Tap
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Solid Tap Range
- 6 AWG-4/0 AWG
- Conductor - Copper Str Compact Size
- 250 kcmil-300 kcmil
- Conductor - Copper Str Run
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Str Run Range
- 6 AWG-4/0 AWG
- Conductor - Copper Str Size
- 4/0 AWG & 250 kcmil
- Conductor - Copper Str Size Range
- 6 AWG-4/0 AWG
- Conductor - Copper Str Tap
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Str Tap Range
- 6 AWG-4/0 AWG
- Conductor Size
- 6-4/0 AWG
- Connector Type
- In-Line
- Country of Origin
- MX
- Depth
- 0.56 in
- Description - Invoice
- 4/0-6 DUAL RATED SPLICE
- Description - Slang
- Universal Splices
- Die Size
- EEI 11A;Burndy WK840;Burndy 249;Kearney 840;T&B TX;T&B 76
- Dimension - H1 Height inch
- 1.09 in
- Dimension - Height fraction
- 1-3/32
- Dimension - Length Overall inch
- 2.31 in
- Dimension - L Length Overall mm
- 59 mm
- Dimension - Width fraction
- 1 in
- Dimension - Width inch
- 1.00 in
- Dimension - Width mm
- 25 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.00 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Hex Size
- 5/16
- Image Actual Or Representative
- A
- Industry Standard(s)
- ANSI C119.4
- Installation Torque Recommended in-lb
- 275 LBS/in
- Lead Time
- 10 wk
- Length
- 3.25 in
- Lowest Level UOM
- Each
- Material
- Aluminum
- Material - Hardware
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 1.7 lb.
- Package - GTIN - Package
- 30781810241029
- Package Height
- 6.875 in
- Package Length
- 2.12 in
- Package - Number of Sub Packs
- 10
- Package - Pack Description
- Package
- Package Quantity
- 10 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810241028
- Package - Total Units
- 10 EA
- Package Weight
- 1.7 lb.
- Package Width
- 3.00 in
- Physical Attribute - Number of Screws
- 2
- Physical Attribute - Screw Type
- Slot
- Plated
- Y
- Plating Type
- Tin
- Product Type
- SPLICE REDUCER
- Rating - Minimum Voltage
- 600
- Special Features
- Features: All Splicer/Reducers Are Dual Rated For Use With Aluminum And Copper Conductors And Are Constructed From High Strength, Tin Plated Aluminum, PENTROX Oxide Inhibiting Joint Compounds Are Recommended For All Aluminum Applications, All Connectors Are Tin-Plated: Provide Low Contact Resistance And Prevents Galvanic Corrosion, Connectors Feature Rounded Bottoms: Facilitates Taping, Solid Center Barrier: Prevents Contact Of Dissimilar Metals, Large Screw Diameters: Ensures Greater Surface Contact With Wires For Maximum Pullout Force, Large Cable Ranges: Each Splice Is Also An Effective Reducing Connector, Conductor Type: Copper, Aluminium, Number Of Screws: 2, Hex Size: 5/16 IN, Screw Diameter: 9/16 IN
- Standard
- ANSI C119.4
- Standard Package Quantity
- 10
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- N - Non-stock
- Sub Brand
- SPLICER/REDUCER
- Sub Class Code
- B51BGHF
- Temperature Rating
- 194° F
- Type
- AMS, Dual Rated
- UL Listed
- Yes
- Width
- 1.00 in
