Description

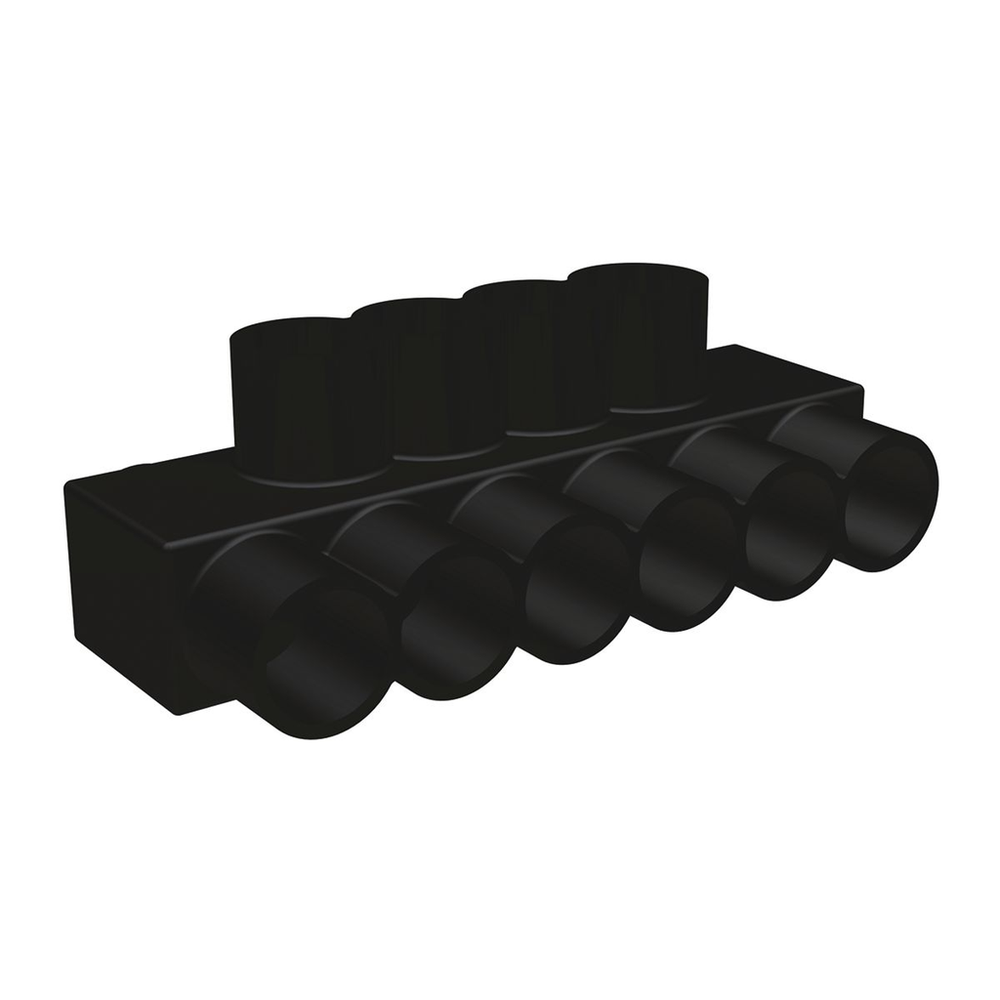

Mounted Block Tap Connector, 6 Ports, Single Side Entry, 5.29 IN L.Mounted Block Tap Connector, 6 Ports, Single Side Entry, 5.29 IN L
Burndy 1PLM2/06 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- UL Listed Direct Burial
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810307908
- Class Code
- B51
- Conductor - AL Str Size
- 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
- Conductor - AL Str Size Range
- 14 AWG - 2/0 AWG
- Conductor - Copper Str Size
- 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
- Conductor - Copper Str Size Range
- 14 AWG - 2/0 AWG
- Conductor Size
- 14-2/0 AWG
- Conductor Type
- AL C Str-Size;CU C Str-Size
- Connector Type
- Multi Tap
- Country of Origin
- US
- Description - Slang
- Black Insulation
- Dimension - Height fraction
- 1-1/2 in
- Dimension - Height inch
- 1.50 in
- Dimension - Length Overall inch
- 5.29 in
- Dimension - L Length Overall mm
- 134 mm
- Dimension - Width inch
- 1.44
- Dimension - Width mm
- 36 mm
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 275 in-lb
- Insulation
- Y
- Insulation Type
- Plastisol
- Lead Time
- 12 wk
- Material
- Aluminum
- Number Of Ports
- 6
- Physical Attribute - Number of Screws
- 8
- Plated
- Y
- Plating Type
- Clear Plated
- Product Type
- RUN/TAP
- Standard Package Quantity
- 100
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B51BGWF
- Temperature Rating
- 194° F
- Trade Name
- UNITAP™
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
