Burndy 1PLD7502
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

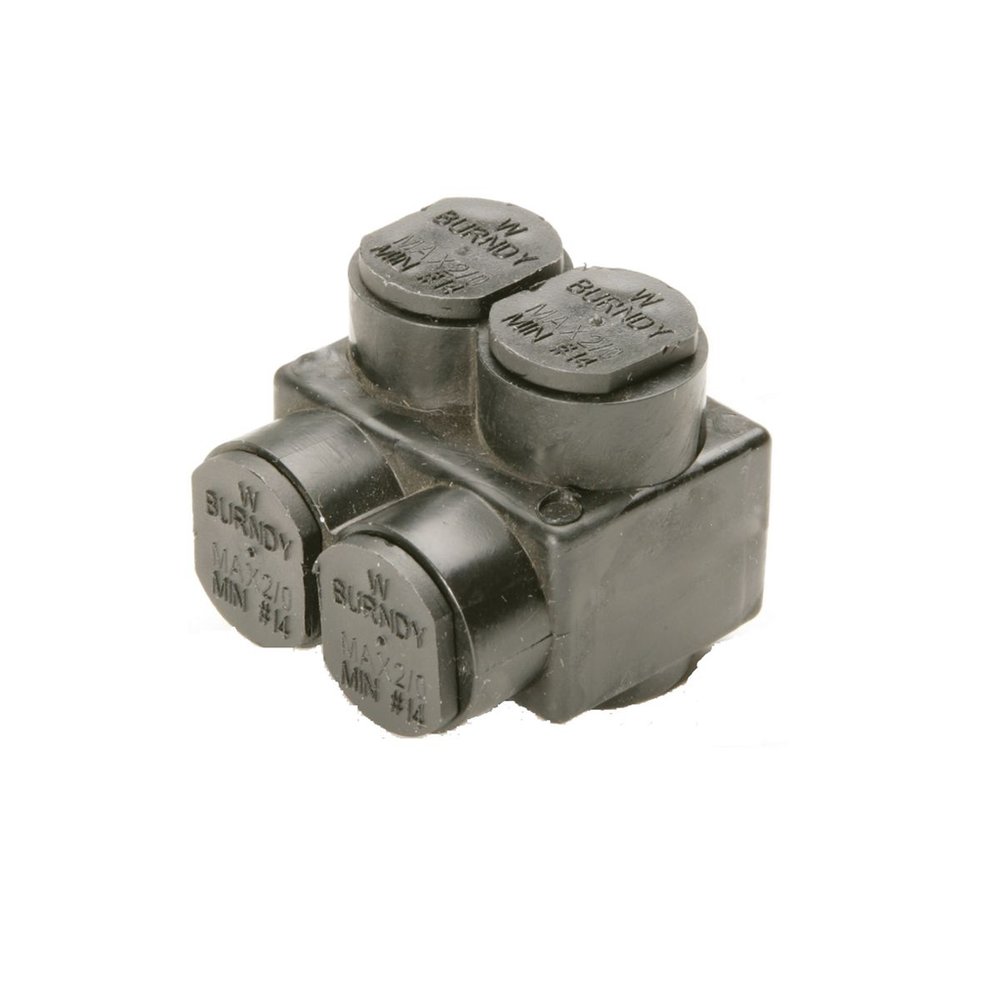

UV Black Plastisol Covered Al Distribution Connectors, Double Sided Entry, 2 Ports, #2 AWG- 750 Kcmil, 600 V, 3/8" Hex.UV Black Plastisol Covered Al Distribution Connectors, Double Sided Entry, 2 Ports, #2 AWG- 750 Kcmil, 600 V, 3/8" Hex
Burndy 1PLD7502 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Contact Manufacturer
- UL Listed Direct Burial
- No
- UL Recognized
- No
Specifications
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Contact Manufacturer
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810287415
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810287416
- Certification Agency
- Proposition 65
- Class Code
- B51
- Color
- UV Black
- Conductor - AL Str Size
- 2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil
- Conductor - AL Str Size Range
- 2 AWG - 750 kcmil
- Conductor - Copper Str Size
- 2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil
- Conductor - Copper Str Size Range
- 2 AWG - 750 kcmil
- Conductor Size
- 2 AWG-750 KCMIL
- Conductor Type
- AL C Str-Size;CU C Str-Size
- Connector Type
- Multi Tap
- Construction Material - Main
- UV Rated material
- Country of Origin
- US
- Description - Invoice
- BLKTAP,DBL,2 PRTS, 750-2
- Description - Slang
- Black Insulation
- Dimension - Height fraction
- 3 in
- Dimension - Height inch
- 3.00 in
- Dimension - Length Overall inch
- 2.87 in
- Dimension - L Length Overall mm
- 73 mm
- Dimension - Screw Size inch
- 13/16
- Dimension - Width inch
- 3.38 in
- Dimension - Width mm
- 86 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 3.38 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Hex Key
- 3/8
- Image Actual Or Representative
- A
- Insulation
- Y
- Insulation Type
- Plastisol
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- UV Rated material
- Material - Hardware
- Aluminum
- MSDS Flag
- No
- Number Of Ports
- 2
- Order Multiple
- 1 EA
- Package - GTIN - Package
- 30781810287416
- Package Quantity
- 30 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Screws
- 2
- Physical Attribute - Screw Type
- Allen
- Plated
- N
- Plating Type
- Unplated
- Product Type
- RUN/TAP
- Special Features
- Covered Distribution connectors; Wire range #2-750 AWG
- Standard Package Quantity
- 30
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- Distribution connectors
- Sub Class Code
- B51BGWF
- Temperature Rating
- 194
- Type
- IPLD
- UL Listed
- No
- Voltage - Maximum
- 600 V
- Width
- 3.38 in
