Description

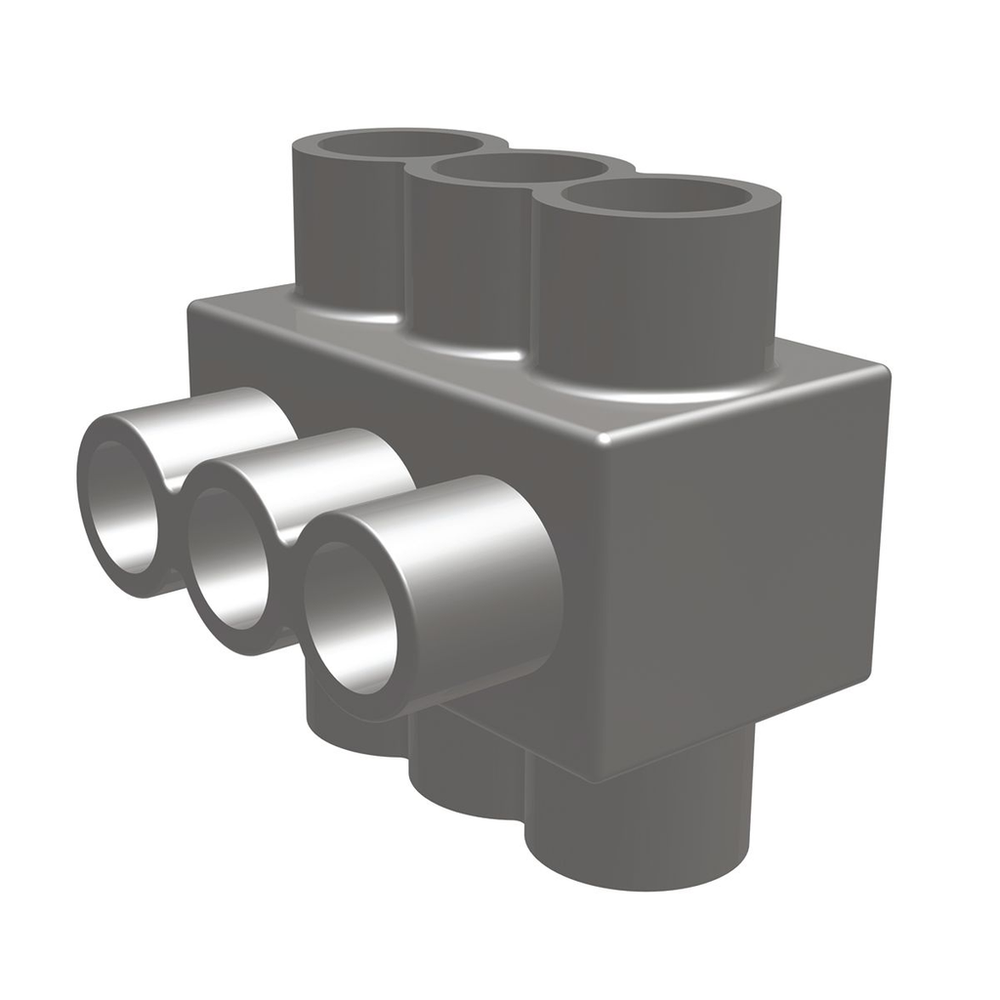

Black Covered Distribution Connerctors, 8 Ports, #14-4 AWG, 3.71 IN L.UNITAP™ UV Black Multiple Tap Connector
Burndy 1PLD48 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Listed Direct Burial
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810308417
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810308418
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - AL Str Size
- 8 AWG;6 AWG;4 AWG
- Conductor - AL Str Size Range
- 8 AWG-4 AWG
- Conductor - Copper Str Size
- 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
- Conductor - Copper Str Size Range
- 14 AWG - 4 AWG
- Conductor Size
- 14-4 AWG
- Conductor Type
- AL C Str-Size;CU C Str-Size
- Connector Type
- Multi Tap
- Country of Origin
- US
- Description - Slang
- Black Insulation
- Dimension - Height fraction
- 1.25 in
- Dimension - Height inch
- 1.25 in
- Dimension - Length Overall inch
- 3.71 in
- Dimension - L Length Overall mm
- 94 mm
- Dimension - Width inch
- 1.50 in
- Dimension - Width mm
- 38 mm
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Hex Key
- 1/8
- Image Actual Or Representative
- A
- Insulation
- Y
- Insulation Type
- Plastisol
- Lead Time
- 12 wk
- Material
- Aluminum
- Material - Hardware
- Aluminum
- Number Of Ports
- 8
- Package - GTIN - Package
- 30781810308418
- Package Quantity
- 100 EA
- Package - Total Units
- 100 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Screws
- 8
- Physical Attribute - Screw Type
- Allen
- Plated
- N
- Plating Type
- Unplated
- Product Type
- RUN/TAP
- Standard Package Quantity
- 99
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B51BGWF
- Temperature Rating
- 194
- Trade Name
- UNITAP™
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
