Bryant RSD115ILLA
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

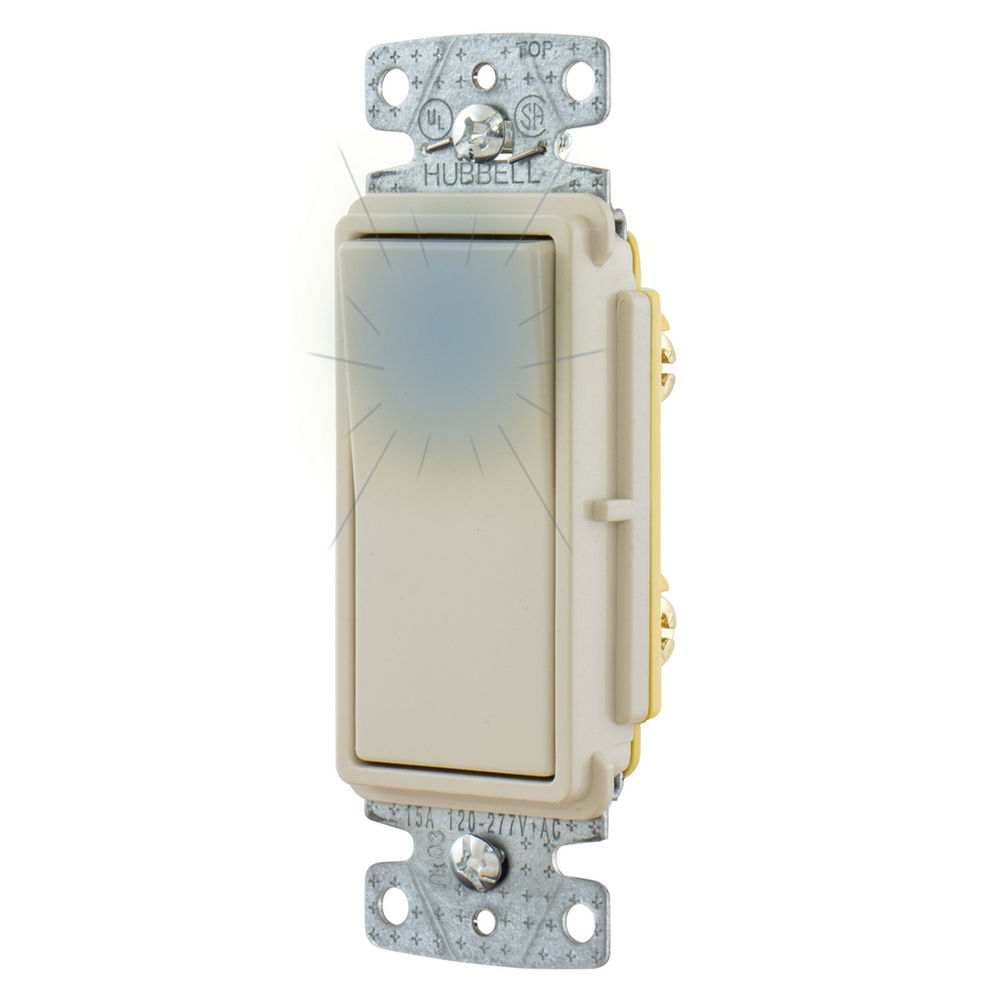

tradeSELECT® Decorator Switch, Residential Grade, Rocker Switch, General Purpose AC, Illuminated Single-Pole, 15A 120/277V AC, Push Back and SidetradeSELECT® Decorator Rocker Switch, Illuminated Single Pole 15A Push Back and Side
Bryant RSD115ILLA is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Base Unit of Measure
- EA
- BOX SIZE
- 2.923x7.423x4.248 (in)
- Carton - Gross Weight per Pack
- 1.600 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 883778119392
- Carton - Total Units
- 10 EA
- Case - Total Units
- 50 EA
- Case Weight
- 8.000 lb.
- Country of Origin
- CN
- Description - Invoice
- RESI ROCKER SW, SP, 15A 120V, ILL LA
- Each - Pack Description
- Each
- Each - Width
- 1.300 in
- Freight Class Code
- 06168002
- Harmonization Code
- 8536509040
- Image Actual Or Representative
- A
- Industry Standard(s)
- CSA Certified;Listed to UL Standard 20
- Lowest Level UOM
- Each
- MSDS Flag
- No
- Performance
- Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute;Electrical - Endurance - 30,000 cycles minimum;Electrical - Max. working voltage - 120V;Electrical - Overload - 1.5 times rating;Environmental - Flammability - UL V0;Environmental - Operating temperatures - Maximum continuous 60°C;minimum -20°C (without impact);Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only;push wire: #14 AWG solid copper wire only
- Replaced Catalog Number
- RSD115ILAL
- Standard
- CSA Certified;Listed to UL Standard 20
- Width
- 1.300 in
