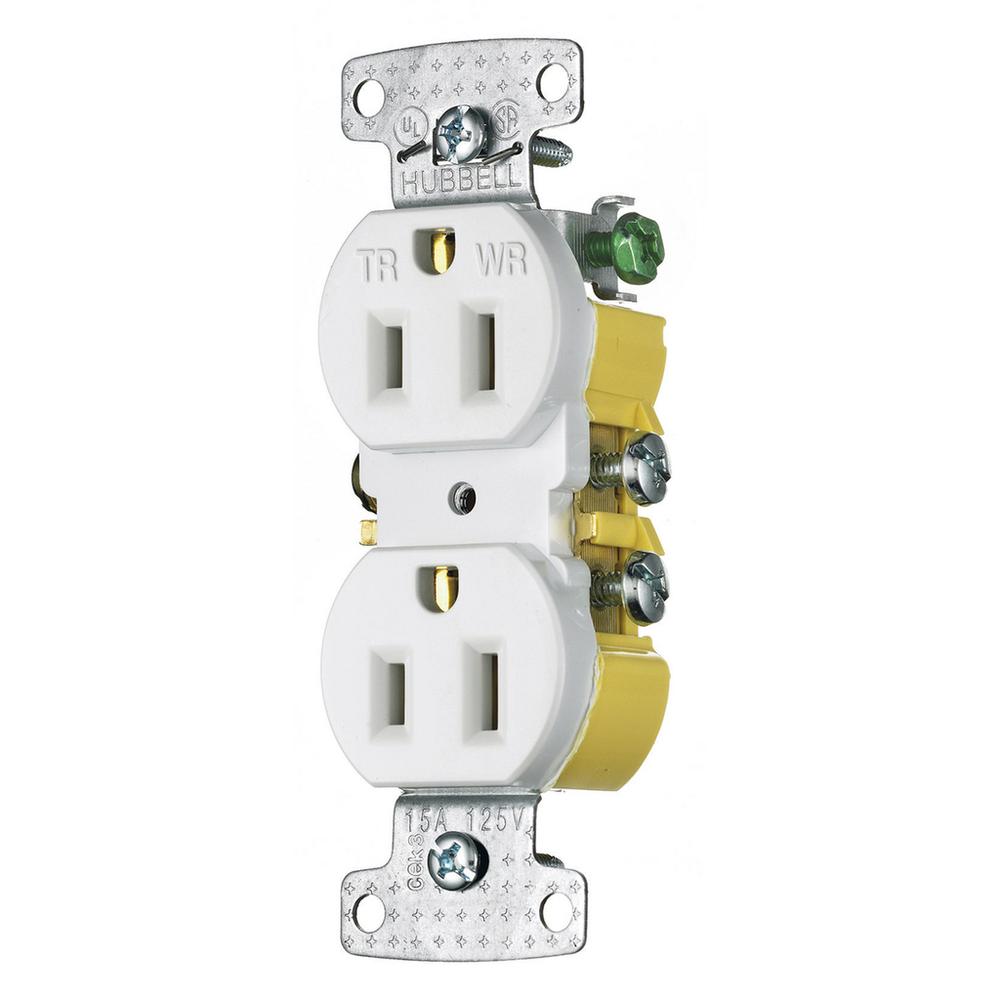

Bryant RR15SWWRTR
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TradeSelect, Straight Blade Devices, Residential Grade, Receptacles, Weather and Tamper Resistant Duplex, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Self Grounding, WhiteTradeSelect, Straight Blade Devices, Residential Grade, Receptacles, Weather and Tamper Resistant Duplex, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Self Grounding, White
Bryant RR15SWWRTR is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Amperage Rating
- 15 A
- Application
- Residential Receptacles
- Base Unit of Measure
- EA
- BOX SIZE
- 2.248x8.048x4.248 (in)
- Carton - Gross Weight per Pack
- 1.350 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 883778303050
- Carton - Total Units
- 10 EA
- Case - Total Units
- 100 EA
- Case Weight
- 13.000 lb.
- Color
- White
- Connectivity
- Push and Side Wire
- Country of Origin
- CN
- Current / Amperage Rating
- 15 A
- Current Rating
- 15 A
- Description - Invoice
- RCPT DUP WR,TR, 15A 125V, WH
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 1.600 in
- Environmental Conditions
- Weather Resistant
- Freight Class Code
- 06168002
- Harmonization Code
- 8536698000
- Image Actual Or Representative
- A
- Industry Standard(s)
- Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Lowest Level UOM
- Each
- Material
- Thermoplastic
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Nema Rating
- 5-15R
- NEMA Rating
- 5-15R
- Number of Poles
- 2-Pole
- Number Of Poles
- 2-Pole
- Number of Wires
- 3-Wire Grounding
- Number Of Wires
- 3-Wire Grounding
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-0;Environmental - Operating temperature - -20°C to 60°C, without impact;Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Push Wire Accommodation - #14 AWG solid copper wire only;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA C22.2, No. 42
- Phase
- Single Phase
- Special Features
- Weather and Tamper Resistant- Self Grounding
- Standard
- Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Voltage Rating
- 125 VAC
- Voltage Rating Description
- 125 VAC
- Wattage
- 1875
- Width
- 1.600 in
- Wire Size
- #14 AWG to #12 AWG
