Description

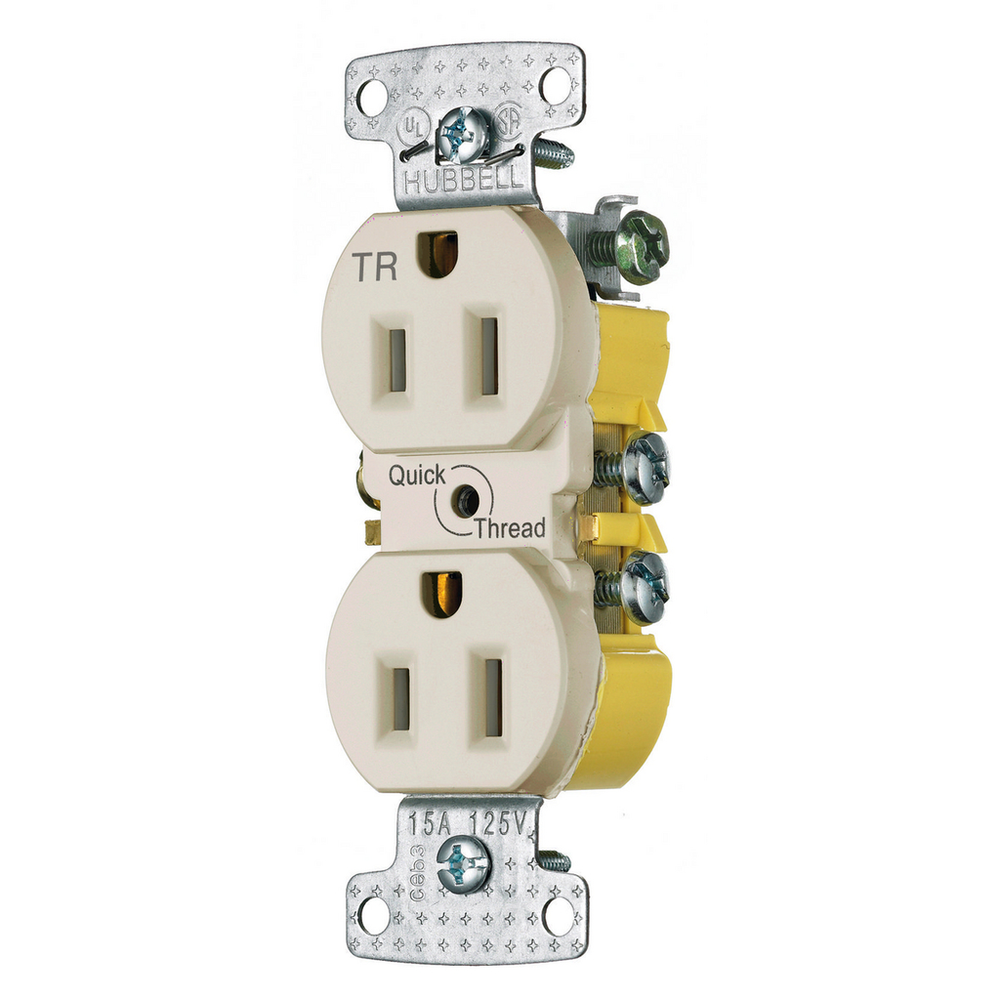

tradeSELECT® Straight Blade Receptacle, Residential Grade, Tamper Resistant Duplex, Quick Thread, 15A 125V, 2-Pole 3-Wire Grounding, 5-15RtradeSELECT® Straight Blade Receptacle TR Duplex, Quick Thread 15A
Bryant RR15QLATR is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Amperage Rating
- 15 A
- Application
- Residential Receptacles
- Base Unit of Measure
- EA
- BOX SIZE
- 2.248x8.048x4.248 (in)
- Carton - Gross Weight per Pack
- 2.350 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 883778301605
- Carton - Total Units
- 10 EA
- Case - Total Units
- 200 EA
- Case Weight
- 26.000 lb.
- Color
- Light Almond
- Connectivity
- Push and Side Wire
- Country of Origin
- CN
- Current / Amperage Rating
- 15 A
- Current Rating
- 15 A
- Description - Invoice
- RCPT, DUP, TR, 15A 125V, QCK-PLT, LA
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 1.200 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536698000
- Image Actual Or Representative
- A
- Industry Standard(s)
- CSA Certified;UL Listed E2186
- Lowest Level UOM
- Each
- Material
- Thermoplastic
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Nema Rating
- 5-15R
- NEMA Rating
- 5-15R
- Number of Poles
- 2-Pole
- Number Of Poles
- 2-Pole
- Number of Wires
- 3-Wire Grounding
- Number Of Wires
- 3-Wire Grounding
- Performance
- Environmental - Operating temperature - -20°C to 60°C;Mechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only
- Phase
- Single Phase
- Replaced Catalog Number
- RR15QLA
- Special Features
- Tamper Resistant- Self Grounding, Quick Thread
- Standard
- CSA Certified;UL Listed E2186
- Voltage Rating
- 125 VAC
- Voltage Rating Description
- 125 VAC
- Wattage
- 1875
- Width
- 1.200 in
- Wire Size
- #14 AWG to #12 AWG
