Bryant RCD308BKTR
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

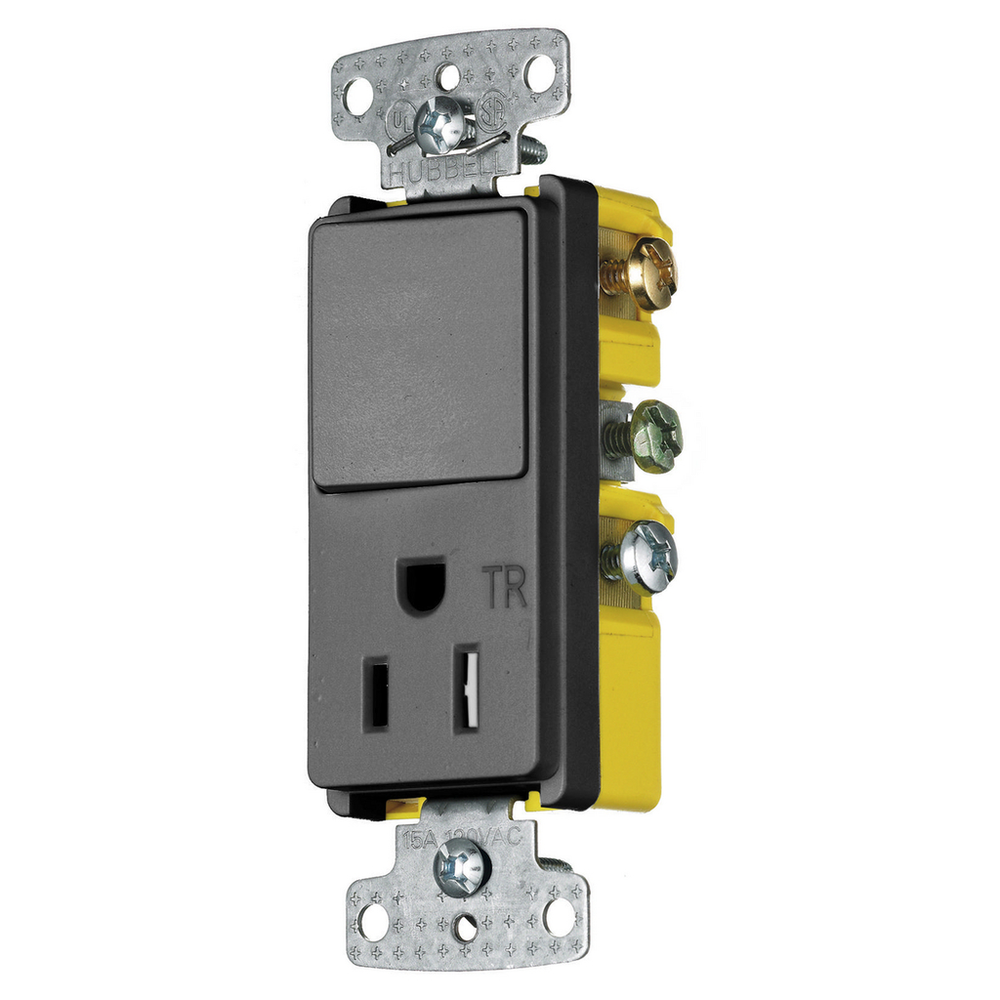

Switches and Lighting Controls, Combination Devices, Residential Grade, Decorator Series, 1) Three Way Rocker, 1) Tamper Resistant Single Receptacle, 15A 120V AC, Side WiredSwitches and Lighting Controls, Combination Devices, Residential Grade, Decorator Series, 1) Three Way Rocker, 1) Tamper Resistant Single Receptacle, 15A 120V AC, Side Wired
Bryant RCD308BKTR is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Action
- Snap Switch
- Actuator
- Rocker
- Amperage Rating
- 15 A
- Application
- Residential
- Base Unit of Measure
- EA
- BOX SIZE
- 2.400x9.100x4.400 (in)
- Carton - Gross Weight per Pack
- 2.8 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 883778302404
- Carton - Total Units
- 10
- Case Weight
- 7.500 lb.
- Conduit Connection
- null
- Connectivity
- Side Wired
- Contact Configuration
- Two Position
- Contact Rating
- 15A
- Country of Origin
- CN
- Current / Amperage Rating
- 15 A
- Current Rating
- 15 A
- Description - Invoice
- COMBO DEC,15A 3-W&15A125V RCPT TR, BK
- Display Size
- Standard Size
- Each - Pack Description
- Each
- Each - Width
- 1.400 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536698000
- Image Actual Or Representative
- A
- Industry Standard(s)
- CSA Certified;UL Listed E3896
- Lowest Level UOM
- Each
- Material - Mounting Hardware
- Mounting Screws
- MSDS Flag
- No
- Number of Poles
- 1) Three Way
- Number Of Poles
- 1) Three Way
- Operating Cycles
- 30,000 Minimum
- Operating Temperature
- Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
- Performance
- Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute;Electrical - Endurance - 30,000 cycles minimum;Electrical - Max. working voltage - 120V;Electrical - Overload - 1.5 times rating;Environmental - Flammability - UL V0;Environmental - Operating temperatures - Maximum continuous 60°C;minimum -20°C (without impact);Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only;push wire: #14 AWG solid copper wire only
- Replaced Catalog Number
- RCD308BK
- Special Features
- Tamper Resistant Receptacle
- Standard
- CSA Certified;UL Listed E3896
- Voltage Rating
- 125 VAC
- Voltage Rating Description
- 125 VAC
- Wattage
- 1875
- Width
- 1.400 in
