Bryant HBL15TGN
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

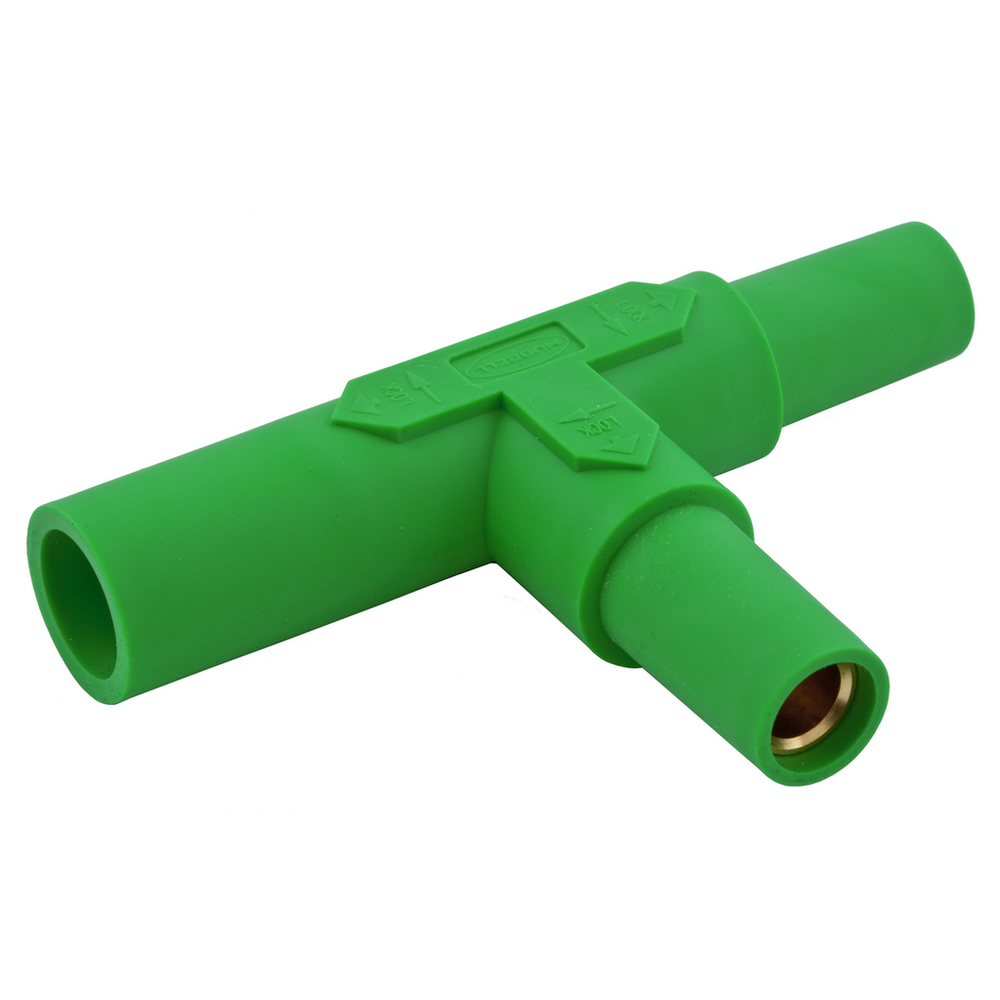

Single Pole Products, Tapping Tee, 150 Amp Series, GreenSingle Pole Products, Tapping Tee, 150 Amp Series, Green
Bryant HBL15TGN is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Amperage Rating
- 150 A
- Application
- Temporary Electrical Power
- Base Unit of Measure
- EA
- BOX SIZE
- 7.875x9.995x9.625 (in)
- Carton - Gross Weight per Pack
- 8.900 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585458649
- Carton - Total Units
- 25 EA
- Color
- Green
- Connectivity
- Plug-In
- Country of Origin
- CN
- Current / Amperage Rating
- 150 A
- Current Rating
- 150 A
- Description - Invoice
- SINGLE POLE SER, 15 TAPPING TEE, GN
- Display Size
- Standard
- Each - Width
- 6.000 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536698000
- Image Actual Or Representative
- A
- Industry Standard(s)
- National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
- Insulation
- Insulated Body
- Material
- Brass and Non-Metallic
- Material - Mounting Hardware
- Cord Mounted
- MSDS Flag
- No
- Nema Rating
- Non-NEMA
- NEMA Rating
- Non-NEMA
- Number of Conductors
- 1 Conductor
- Number Of Conductors
- 1 Conductor
- Number of Poles
- 1-Pole
- Number Of Poles
- 1-Pole
- Series
- Series 15
- Special Features
- Standard Product
- Standard
- National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
- Style
- Tapping Tee Female-Female-Male
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Type
- Tee
- Voltage Rating Description
- 600V AC/DC
- Width
- 6.000 in
