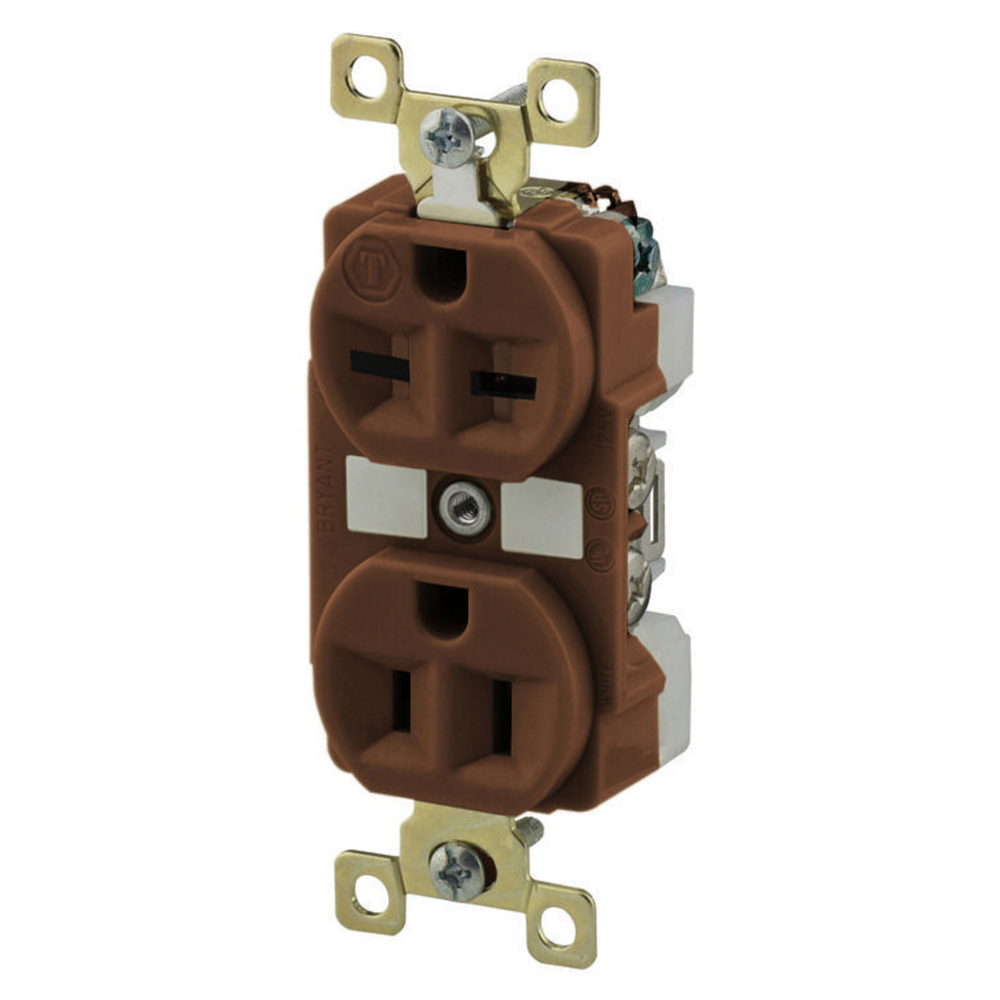

Bryant BRY5292
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Straight Blade Devices, Receptacles, Combo Duplex, Commercial/Industrial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Brown, Single PackStraight Blade Devices, Receptacles, Combo Duplex, Commercial/Industrial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Brown, Single Pack
Bryant BRY5292 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Amperage Rating
- 15 A
- Application
- Extra Heavy Duty Industrial Specification Grade
- Base Unit of Measure
- EA
- BOX SIZE
- 2.800x8.600x5.200 (in)
- Carton - Gross Weight per Pack
- 2.4 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786005174
- Carton - Total Units
- 10 EA
- Case - Total Units
- 100 EA
- Case Weight
- 30.000 lb.
- Class Code
- A04
- Color
- Brown
- Connectivity
- Back and Side Wired
- Country of Origin
- CN
- Current / Amperage Rating
- 15 A
- Current Rating
- 15 A
- Description - Invoice
- RCPT, COMBO, 15A 125V 15A 250V, BR
- Dimensions
- 3.28 in x 1.54 in x 1.16 in
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 1.500 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536698000
- Height
- 1.16 in
- Image Actual Or Representative
- A
- Length
- 3.28 in
- Lowest Level UOM
- Each
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Nema Rating
- 5-15R, 6-15R
- NEMA Rating
- 5-15R, 6-15R
- Number of Poles
- 2-Pole
- Number Of Poles
- 2-Pole
- Number of Wires
- 3-Wire
- Number Of Wires
- 3-Wire
- Phase
- Single Phase
- Replaced Catalog Number
- 5292
- Series
- Heavy Duty
- Size
- 3.28 in x 1.54 in x 1.16 in
- Special Features
- Combination Faces
- Style
- Finder Groove Face
- Sub Class Code
- A04A020
- Type
- Combination Receptacle
- Voltage Rating
- 125/250 V
- Voltage Rating Description
- 125/250 V
- Wattage
- 3750
- Weight
- 0.3 lb.
- Width
- 1.500 in
- Wire Size
- #14 AWG to #12 AWG
