Bryant BRY430R6W
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

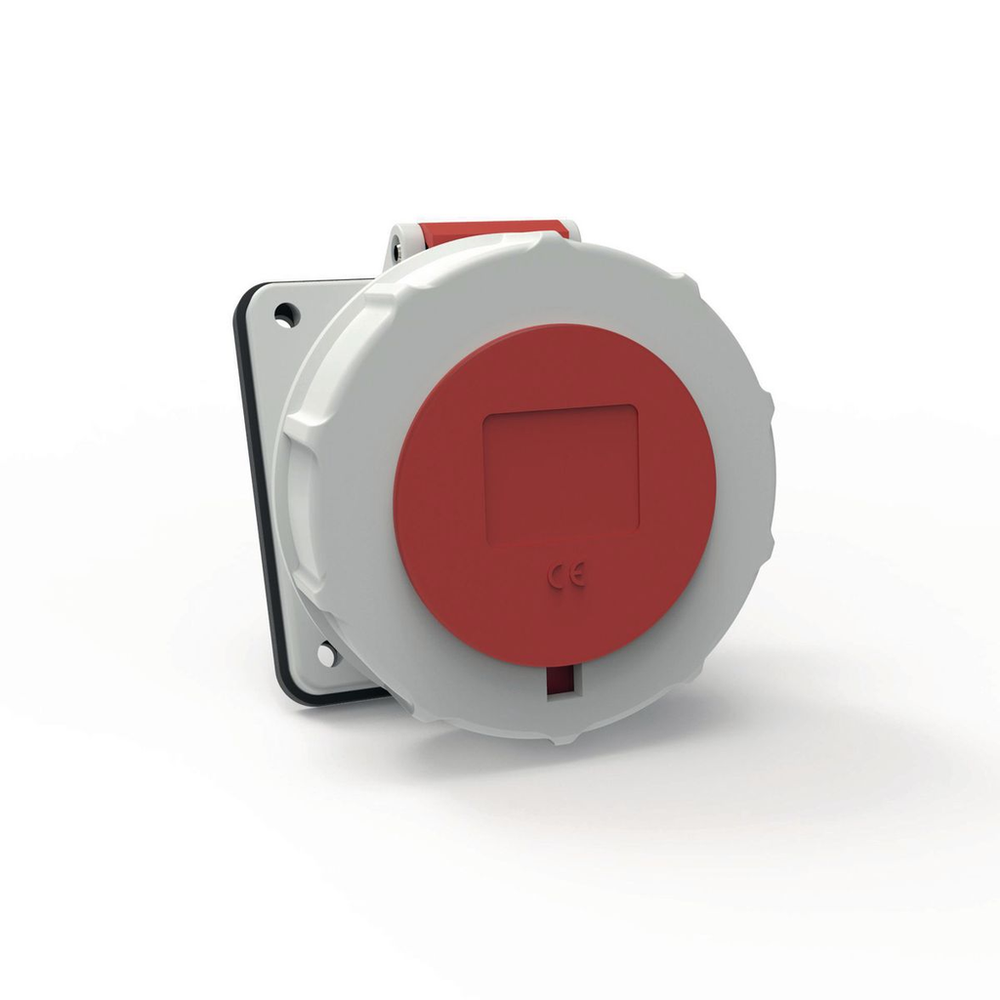

Heavy Duty Products, IEC Pin and Sleeve Devices, Female, Receptacle, 30/32 A 380-415 VAC, 3-POLE 4-WIRE, Red, WatertightHeavy Duty Products, IEC Pin and Sleeve Devices, Female, Receptacle
Bryant BRY430R6W is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Amperage Rating
- 30/32 A
- Application
- High Ampacity Connections
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781786782693
- Carton - Total Units
- 10
- Class Code
- A12
- Color
- Red
- Connection
- Screwless Spring
- Country of Origin
- DE
- Current / Amperage Rating
- 30/32 A
- Dielectric Strength
- Withstand 3000V AC
- Each - Width
- 4.800 in
- Environmental Conditions
- IP67
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Image Actual Or Representative
- A
- Industry Standard(s)
- All constructions are UL Listed & cUL Listed, FileE14632, UL1686Standard for Pin & Sleeve Configurations, VDE, CE
- Ingress Protection
- IP67
- Insulation
- Insulated Body
- Material
- PBT
- Mounting
- Screw Mount
- Mounting Type
- Screw Mount
- Nema Rating
- Non-NEMA
- NEMA Rating
- Non-NEMA
- Number of Poles
- 3-POLE
- Number Of Poles
- 3-POLE
- Number of Wires
- 4-WIRE
- Number Of Wires
- 4-WIRE
- Replaced Catalog Number
- 432R6W
- Series
- Watertight IP67
- Size
- Standard
- Special Features
- Watertight
- Standard
- All constructions are UL Listed & cUL Listed, FileE14632, UL1686Standard for Pin & Sleeve Configurations, VDE, CE
- Sub Class Code
- A12A230
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Type
- Receptacle
- Voltage - Maximum
- 600 VAC
- Voltage Rating
- 380-415 VAC
- Voltage Rating Description
- 380-415 VAC
- Width
- 4.800 in
- Wire Size
- #10 AWG to #8 AWG
