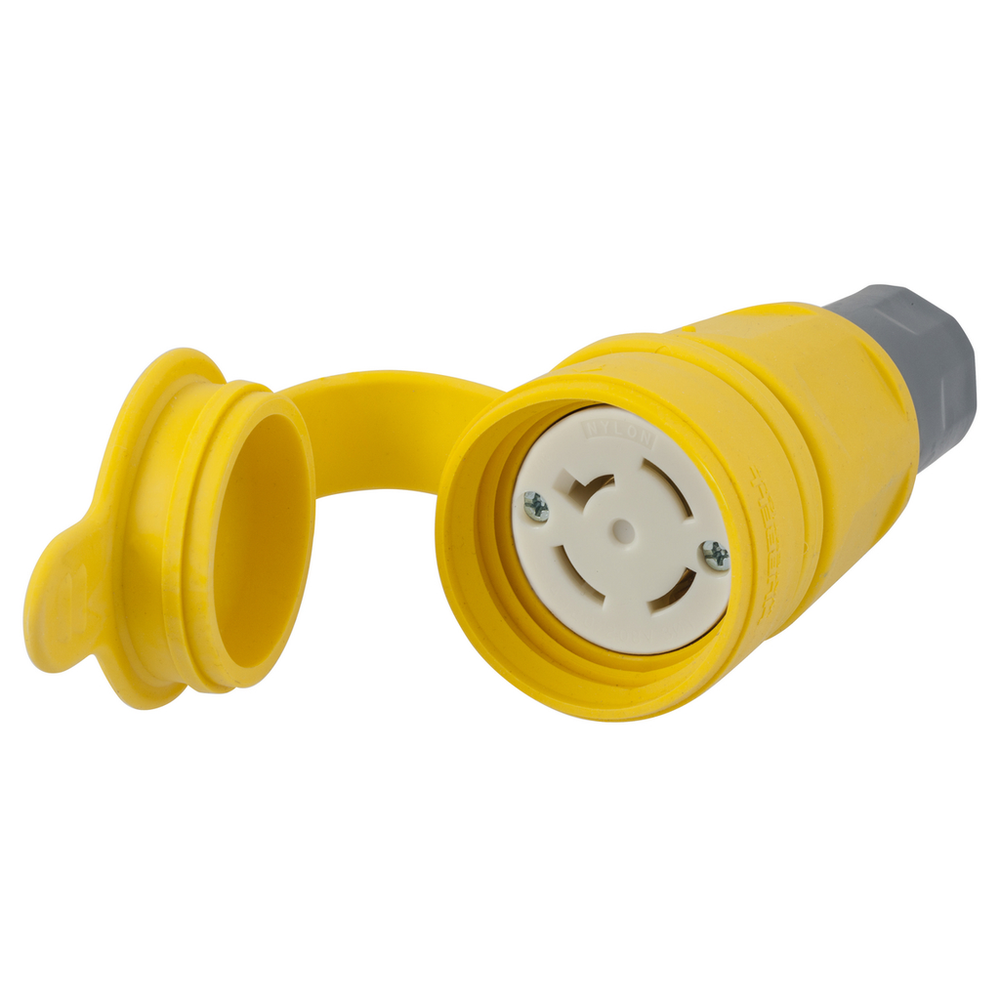

Bryant BRY27W09
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Watertight Devices, Locking Devices, Elastomeric, Female Connector, 20A 3-Phase 120/208V AC, 4-Pole 4-Wire Non-Grounding,Non-NEMA, Screw Terminal, Yellow, Water/Dust-Tight HousingLocking Devices, Elastomeric, Female Connector, 20A 3-Phase 120/208V AC, 4-Pole 4-Wire Non-Grounding,Non-NEMA, Screw Terminal, Yellow, Water/Dust-Tight Housing
Bryant BRY27W09 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Amperage Rating
- 20 A
- Base Unit of Measure
- EA
- BOX SIZE
- 5.300x10.600x12.300 (in)
- Carton - Gross Weight per Pack
- 3.000 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781786378551
- Carton - Total Units
- 10
- Class Code
- A08
- Color
- Yellow
- Cord Diameter
- 0.375-1.125 in
- Country of Origin
- US
- Description - Invoice
- WATERTIGHT CONN, 20A 3PH Y 120/208V
- Dimensions
- 2.51 in x 2.51 in x 5.69 in
- Each - Width
- 7.000 in
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Height
- 5.69 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- IP69K;Listed to UL498;Certified to CSA C22.2 No. 42;Meets NEMA® WD-1, WD-6, and ANSI Standards;IP66 Suitability;NSF Certified (plugs, connectors and receptacles)
- Length
- 2.51 in
- Nema Rating
- Non-NEMA
- NEMA Rating
- Non-NEMA
- Number of Poles
- 4-Pole
- Number Of Poles
- 4-Pole
- Number Of Wires
- 4-Wire
- Performance
- Dielectric voltage:2000V AC if rated 300V or less, 3000V AC if rated above 300V;Moisture resistance:UL Listed to 3R, 3RX, 4, 4X, 6, 6P, 12;UV resistance:All exposed materials are UV stabilized;Flammability:UL94V2(plugs, connectors, and interiors)
- Size
- 2.51 in x 2.51 in x 5.69 in
- Standard
- IP69K;Listed to UL498;Certified to CSA C22.2 No. 42;Meets NEMA® WD-1, WD-6, and ANSI Standards;IP66 Suitability;NSF Certified (plugs, connectors and receptacles)
- Sub Class Code
- A08A116
- Type
- Connector Body
- Voltage Rating
- 3 Phase Y 120/208 VAC
- Voltage Rating Description
- 3 Phase Y 120/208 VAC
- Width
- 7.000 in
- Wire Size
- Min. cord: #16/3 SJ, #18/3 S, #18/4 SJ, #18/4 S, #18/5 S;Max. cord: #10/3 S, #10/4 S, #10/5 S
