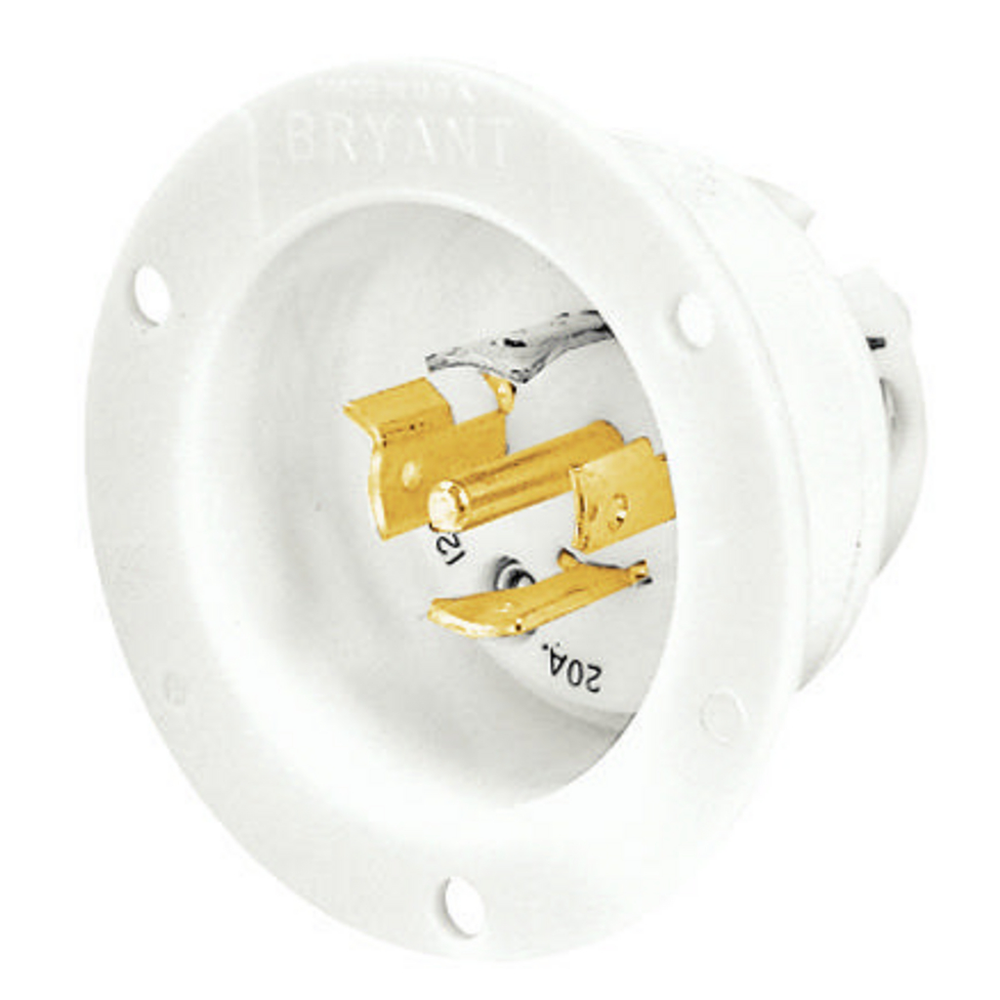

Bryant 72120MB
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Locking Devices, Industrial, Flanged Inlet, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, L21-20P, Screw Terminal, WhiteLocking Devices, Industrial, Flanged Inlet, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, L21-20P, Screw Terminal, White
Bryant 72120MB is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Amperage Rating
- 20 A
- Application
- Extra Heavy Duty Industrial
- Base Unit of Measure
- EA
- BOX SIZE
- 5.300x14.600x6.100 (in)
- Carton - Gross Weight per Pack
- 2.75 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786701267
- Carton - Total Units
- 10 EA
- Class Code
- A08
- Color
- White
- Connectivity
- Screw Terminals
- Country of Origin
- PR
- Current Rating
- 20 A
- Description - Invoice
- LKG FLG-INLT, 20A 120/208V, L21-20P,WH
- Dielectric Strength
- Withstands 3000V Minimum
- Dimensions
- 3.06 in x 3.06 in x 2.03 in
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 2.400 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Height
- 2.03 in
- Image Actual Or Representative
- A
- Insulation
- Insulated Body
- Length
- 3.06 in
- Lowest Level UOM
- Each
- Material
- Composite
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Nema Rating
- L21-20P
- NEMA Rating
- L21-20P
- Number of Poles
- 4-Pole
- Number Of Poles
- 4-Pole
- Number of Wires
- 5-Wire
- Number Of Wires
- 5-Wire
- Size
- 3.06 in x 3.06 in x 2.03 in
- Special Features
- Standard Product
- Style
- Equipment Base
- Sub Class Code
- A08A172
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
- Type
- Flanged Inlet
- Voltage Rating
- 3 Phase Y 120/208 VAC
- Voltage Rating Description
- 3 Phase Y 120/208V AC
- Width
- 2.400 in
- Wire Size
- #18 AWG to #8 AWG
