Brady WRAPTOR-A6500
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

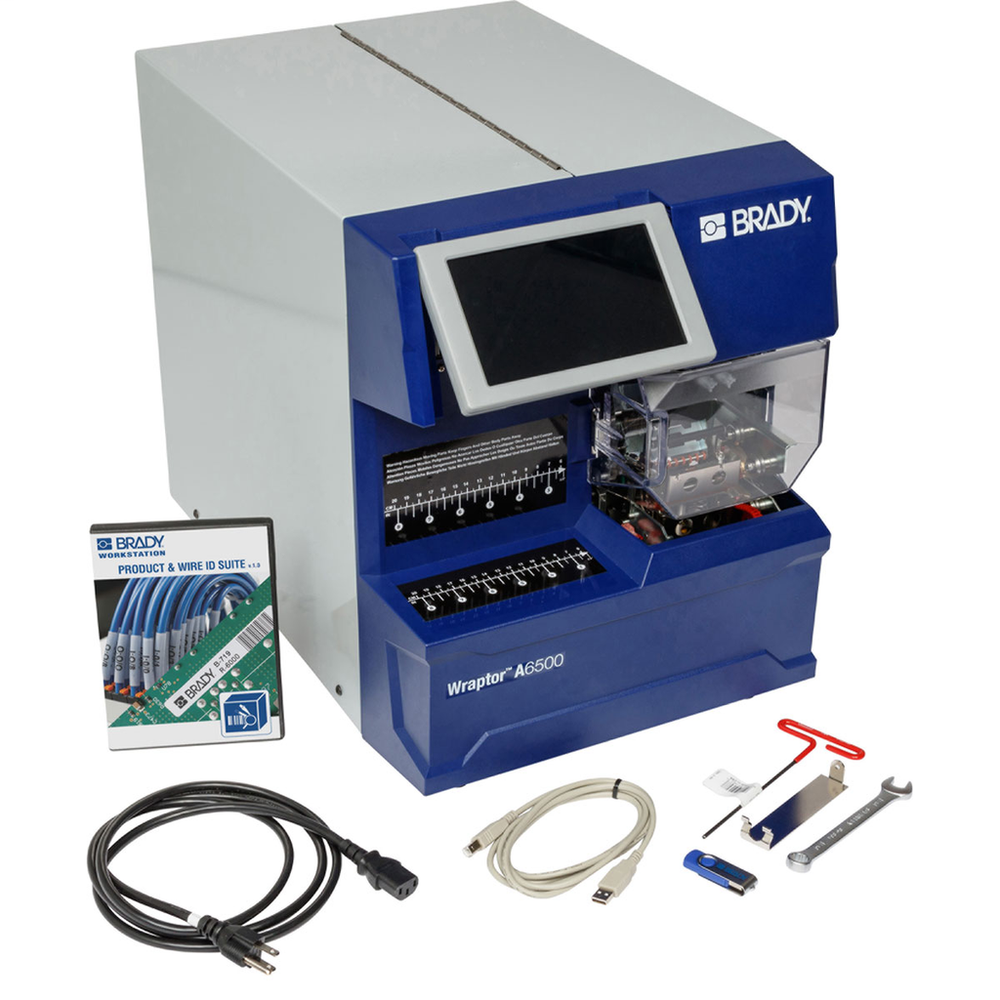

The Wraptor™ A6500 Wrap Printer Applicator is a print and apply machine that turns a series of labor-intensive, inefficient tasks into a modern automated process.Wraptor A6500 Wrap Printer Applicator, 17.75" H x 14.5" W x 22.5" D
Brady WRAPTOR-A6500 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Regulatory Information
- Contains CA PROP 65 Substance
- No
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- EU RoHS Compliant
- Yes
Specifications
- Applications
- Data and Telecommunications Labeling; Electrical Labeling; Wire and Cable Labeling
- Barcode Capability
- Yes
- Battery Type
- Lithium-Manganese Battery
- Brand Name
- Brady®
- Color Printing Capability
- Single Color
- Compatible Brady B-Numbers
- B-427; B-472; B-499
- Compatible Media
- WRAP-
- Continuous & Die-Cut Materials Supported
- Die Cut Labels
- Depth (in/ft/yd)
- 22.5 in
- Depth (mm/cm/m)
- 571.50 mm
- Dimensions
- 17.75 in H x 14.5 in W x 22.5 in D
- Dimensions (Metric)
- 368.30 mm W x 450.90 mm H x 571.50 mm D
- Display Resolution
- 1024 x 800 pixels
- Display Type
- Color Touch Screen
- Enables Industry Compliance
- California Proposition 65; CE; CE Declaration of Conformity; C-UL US; FCC Part 15 Class A; RoHS directive 2011/65/EU; UL/CSA/EN/IEC 60950-1 Information Technology Equipment
- Font Styles
- Arial; Arial 65; Courier New; Tahoma; Times New Roman
- Height (in/ft/yd)
- 17.75 in
- Height (mm/cm/m)
- 450.90 mm
- Includes
- Brady Work Station Wire Marking Suite Software; R4302 Ribbon; Roll of WRAP-4-427; USB Cable; Wraptor™ Print Driver
- Industry
- Aerospace; Automotive; Biotechnology; Defense; Electrical; Electronics; ICT; Manufacturing; Mass transit; Pharmaceutical; Voice & data communication
- Label Material Types
- Flame Retardant Wire Wrap; Nylon Cloth; Self-Laminating Vinyl
- Label/Media Format
- Media and Ribbon, supplied separately
- Machine Cycle Time
- 5 s
- Maximum Label Height
- 76.20
- Maximum Labels per Day
- 7 000
- Maximum Label/Tape Width (in/ft/yd)
- 2 in
- Maximum Label/Tape Width (mm/cm/m)
- 50.80 mm
- Maximum Printed Label Length (mm/cm/m)
- 41.30 mm
- Maximum Print Width (mm/cm/m)
- 50.80 mm
- Maximum Wire Diameter (in/ft/yd)
- 0.6 in
- Maximum Wire Diameter (mm/cm/m)
- 15.24 mm
- Minimum Label Length (in/ft/yd)
- 0.75 in
- Minimum Label Length (mm/cm/m)
- 19.05 mm
- Minimum Label Width
- 12.70 mm
- Minimum Wire Diameter (in/ft/yd)
- 0.06 in
- Minimum Wire Diameter (mm/cm/m)
- 1.52 mm
- Mode of Operation
- Stand-Alone & PC Connect
- Operating Humidity Range
- 20%-80% (RH non-condensing)
- Operating Temperature Range °C
- 10°C - 40°C
- Plug Type
- US
- Power Supply Voltage
- 100 to 240 V @ 50 to 60 Hz
- Primary Noun, Basic Function
- Printer Applicator
- Printer and Label Applications
- Wire & Cable
- Printer Applicator Model
- WRAPTOR™ A6500 Wire Marking System
- Printer Features
- Single Color Printers
- Print Resolution
- 300 dpi
- Print Technology
- Thermal Transfer
- Sign Size-General
- 17.75 in x 14.5 in
- Size - Width (mm)
- 368.30 mm
- Size - W x H x D (mm)
- 368.30 x 450.90 x 571.50
- Software Compatibility
- Brady® Workstation; Labelmark™ Software
- Total Qty per Pack
- 1 Piece(s) / Pack
- Trade Name
- Wraptor™ A6500
- Warranty
- 1 Year
- Warranty (EMEA)
- 1 Year
- Weight (g/kg)
- 38
- Width (in/ft/yd)
- 14.5 in
- Width (mm/cm/m)
- 36.83 cm
- Wire Diameter Range
- 0.06 in to 0.6 in
