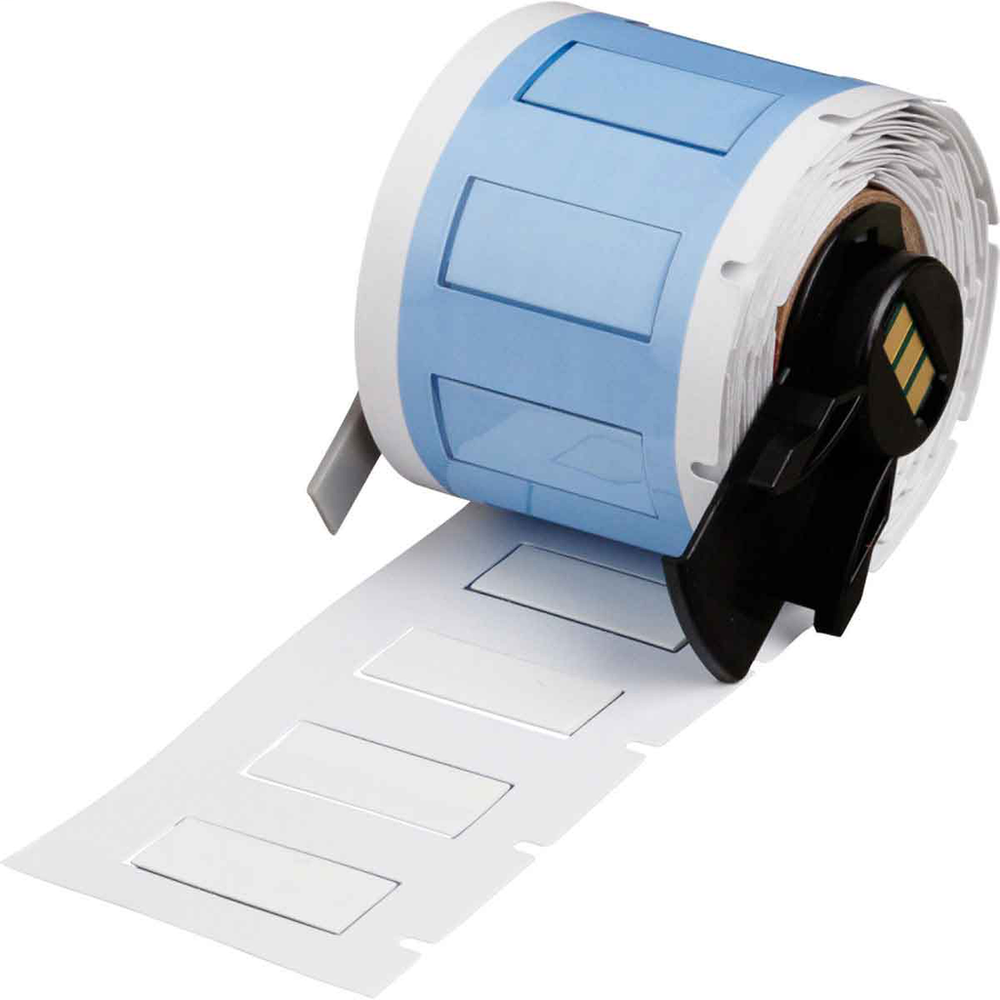

Brady PSHT-250-1-WT
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PermaSleeve® Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications.BMP61 M611 TLS 2200 High Temp PermaSleeve PVDF Wire Marking Sleeves, 0.25" Dia x 1" W, White
Brady PSHT-250-1-WT is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- No
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- EU RoHS Compliant
- Yes
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Specifications
- Applications
- Wire and Cable Labeling
- Brady Material Number
- B-345
- Brand Name
- Brady®
- Bulk Part
- Not a Bulk Part
- Color
- White
- Diagram
- Icon 14 (v)
- Diameter as Supplied (in/ft/yd)
- 0.25 in
- Diameter as Supplied (mm/cm/m)
- 6.4 mm
- Dimensions
- 0.444 in H x 1.1677 in W
- Dimensions 2
- 0.444 in H x 1.1677 in W
- Dimensions (Metric)
- 25.80 mm W x 11.20 mm H
- Enables Industry Compliance
- ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
- Finish
- Matte
- For Use with Printer
- BMP®61 Labeling System; BMP®71 Label Printer (with adapter); BradyPrinter™ M611; TLS 2200® Thermal Labeling System; TLS-PC LINK™ Thermal Labeling System
- Height (in/ft/yd)
- 0.444 in
- Height (mm/cm/m)
- 11.20 mm
- Indoor or Outdoor Use
- Outdoor Use
- Label/Media Format
- Roll
- Label Properties
- Heat Shrink Sleeves
- Material
- High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve
- Material Properties
- Flame-retardant; Heat-shrinkable
- Maximum Service Temperature °C
- 225 °C
- Maximum Service Temperature °F
- 437 °F
- Maximum Wire Diameter (in/ft/yd)
- 0.215 in
- Maximum Wire Diameter (mm/cm/m)
- 5.46 mm
- Maximum Wire Gauge
- 8 AWG
- Max. Lines of Text
- 3
- Minimum Service Temperature °C
- -55 °C
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (in/ft/yd)
- 0.125 in
- Minimum Wire Diameter (mm/cm/m)
- 3.18 mm
- Minimum Wire Gauge
- 14 AWG
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Single-Side Printable
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility
- M611; BMP61; BMP71; TLS-PC LINK
- Printer Compatibility (Print)
- M611; BMP61; BMP71
- Print Technology
- Thermal Transfer
- Quantity per Roll
- 100
- Quantity per Row
- 1
- Recommended Ribbon
- M61-R6010; M71-R6000; R6010
- Recovered Diameter (in/ft/yd)
- 0.125 in
- Recovered Diameter (mm/cm/m)
- 3.2 mm
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; High Temperature-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
- Ribbon Series
- R6010
- Roll Width (in/ft/yd)
- 1 in
- Roll Width (mm/cm/m)
- 25.4 mm
- SAP B-Number
- B-345
- Shape
- Rectangle
- Shrink Ratio
- 2:1
- Sign Size-General
- 0.444 in x 1.1677 in
- Size - Width (mm)
- 25.80 mm
- Sleeve Size (in/ft/yd)
- 0.25 in Dia x 1 in W
- Sleeve Size (mm/cm/m)
- 6.4 mm Dia x 25.4 mm W
- Sleeve Width (in/ft/yd)
- 1 in
- Sleeve Width (mm/cm/m)
- 25.4 mm
- Suggested Ribbon Series
- R4400W; R6000 Halogen Free; R6600; R6800
- Total Qty per Pack
- 100 Sleeve(s) / Roll
- Total Quantity
- 100
- Trade Name
- BMP®61 BMP®71 TLS 2200® TLS-PC Link™ PermaSleeve®
- Vertical Repeat
- 0.875 in
- Vertical Repeat (mm)
- 22.23 mm
- Width (in/ft/yd)
- 1.1677 in
- Wire Diameter Range
- 0.125 in to 0.215 in
- Wire Gauge Range
- 14 AWG to 8 AWG
