Description

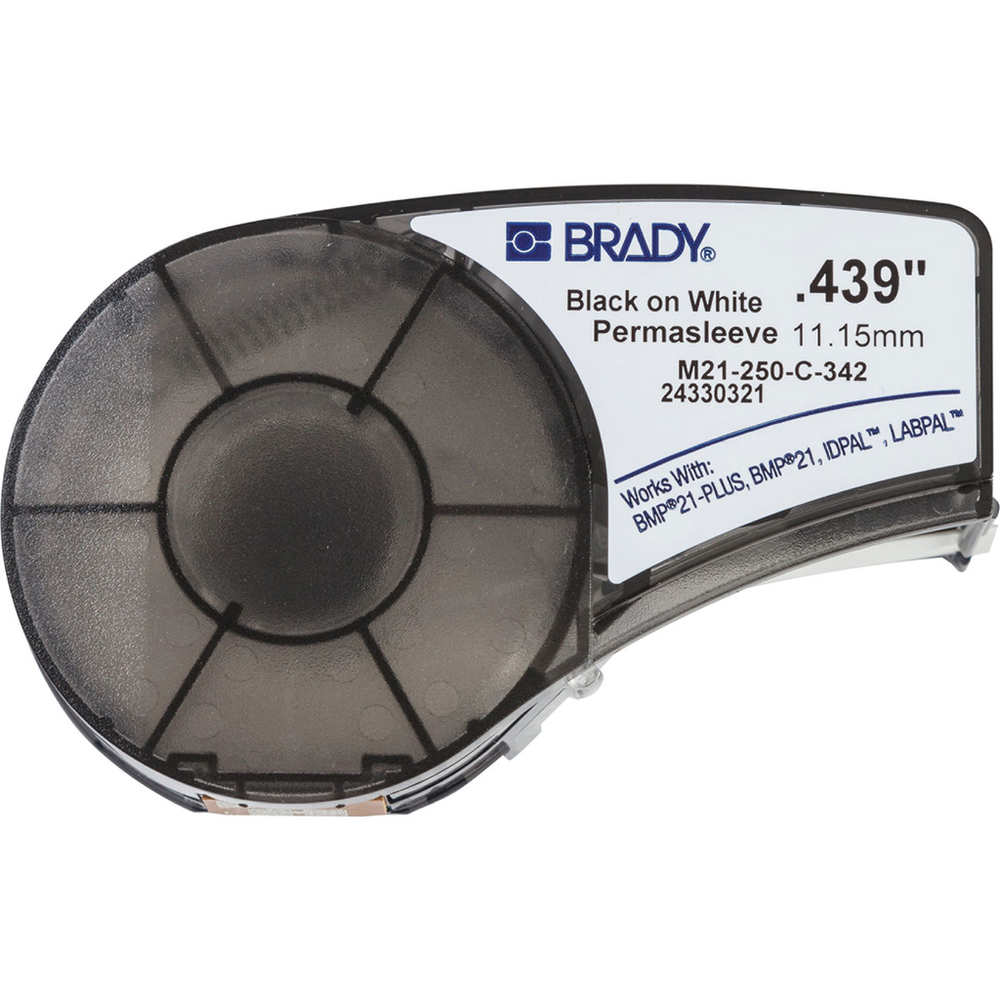

The B-342 Polyolefin PermaSleeve material is a non-adhesive, heat-shrinking sleeve that fits around wires or cables for easy permanent identificationBMP21 Series PermaSleeve Heat Shrink Polyolefin Wire Marking Sleeves, 0.25" Dia x 7' L
Brady M21-250-C-342 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Regulatory Information
- CA Prop 65 Labeled
- Yes
- CA Prop 65 Label Warning
- WARNING: Cancer - www.P65warnings.ca.gov
- Contains CA Prop 65 Cancer Causing Chemical
- Antimony Trioxide
- Contains CA PROP 65 Substance
- Yes
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- EU RoHS Compliant
- Yes
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Brady Material Number
- B-342
- Brand Name
- Brady®
- Color
- Black on White
- Continuous & Die-Cut Materials Supported
- Continuous Tapes Only
- Diagram
- Icon 5 (circle with centre dot)
- Diameter as Supplied (in/ft/yd)
- 0.25 in
- Diameter as Supplied (mm/cm/m)
- 6.4 mm
- Dimensions
- 0.439 in H
- Dimensions 2
- 0.439 in H
- Dimensions (Metric)
- 11.15 mm W x 11.2 mm H x 2.10 m L
- Enables Industry Compliance
- ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
- Finish
- Matte
- For Use with Printer
- BMP®21 LAB Label Printer; BMP®21 Labeler; BMP®21 PLUS Portable Label Printer; IDPAL™ Handheld Label Maker; LABPAL™ Handheld Label Maker
- Height (in/ft/yd)
- 0.439 in
- Height (mm/cm/m)
- 11.2 mm
- Label/Media Format
- Label/Media in Cartridge with Ribbon
- Label Properties
- Heat Shrink Sleeves
- Manufacturer Part Number
- M21-250-C-342
- Material
- Heat-shrink Polyolefin
- Material Properties
- Flame-retardant; Heat-shrinkable
- Maximum Service Temperature °C
- 135 °C
- Maximum Service Temperature °F
- 275 °F
- Maximum Wire Diameter (in/ft/yd)
- 0.215 in
- Maximum Wire Diameter (mm/cm/m)
- 5.46 mm
- Maximum Wire Gauge
- 8 AWG
- Minimum Service Temperature °C
- -55 °C
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (in/ft/yd)
- 0.094 in
- Minimum Wire Diameter (mm/cm/m)
- 2.39 mm
- Minimum Wire Gauge
- 16 AWG
- Primary Noun, Basic Function
- Heat Shrink Tubing
- Printable Sides
- Single-Side Printable
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility
- BMP21-PLUS; BMP21; IDPAL
- Printer Compatibility (Print)
- BMP21-PLUS
- Print Technology
- Thermal Transfer
- Quantity per Row
- 1
- Recovered Diameter (in/ft/yd)
- 0.25 in
- Recovered Diameter (mm/cm/m)
- 6.35 mm
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
- Ribbon Color
- Black
- Ribbon Series
- R4300
- Roll Length (in/ft/yd)
- 7 ft
- Roll Length (mm/cm/m)
- 2.13 m
- SAP B-Number
- B-342
- Shrink Ratio
- 3:1
- Size - Length (m)
- 2.10 m
- Size - Width (mm)
- 11.15 mm
- Sleeve Size (in/ft/yd)
- 0.25 in Dia x 7 ft L
- Sleeve Size (mm/cm/m)
- 6.4 mm Dia x 2.13 m L
- Tape Color
- White
- Total Qty per Pack
- 1 Roll(s) / Box
- Trade Name
- BMP®21 PermaSleeve®
- Web Width (in/ft/yd)
- 0.439 in
- Web Width (mm/cm/m)
- 11.15 mm
- Wire Diameter Range
- 0.094 in to 0.215 in
- Wire Gauge Range
- 16 AWG to 8 AWG
