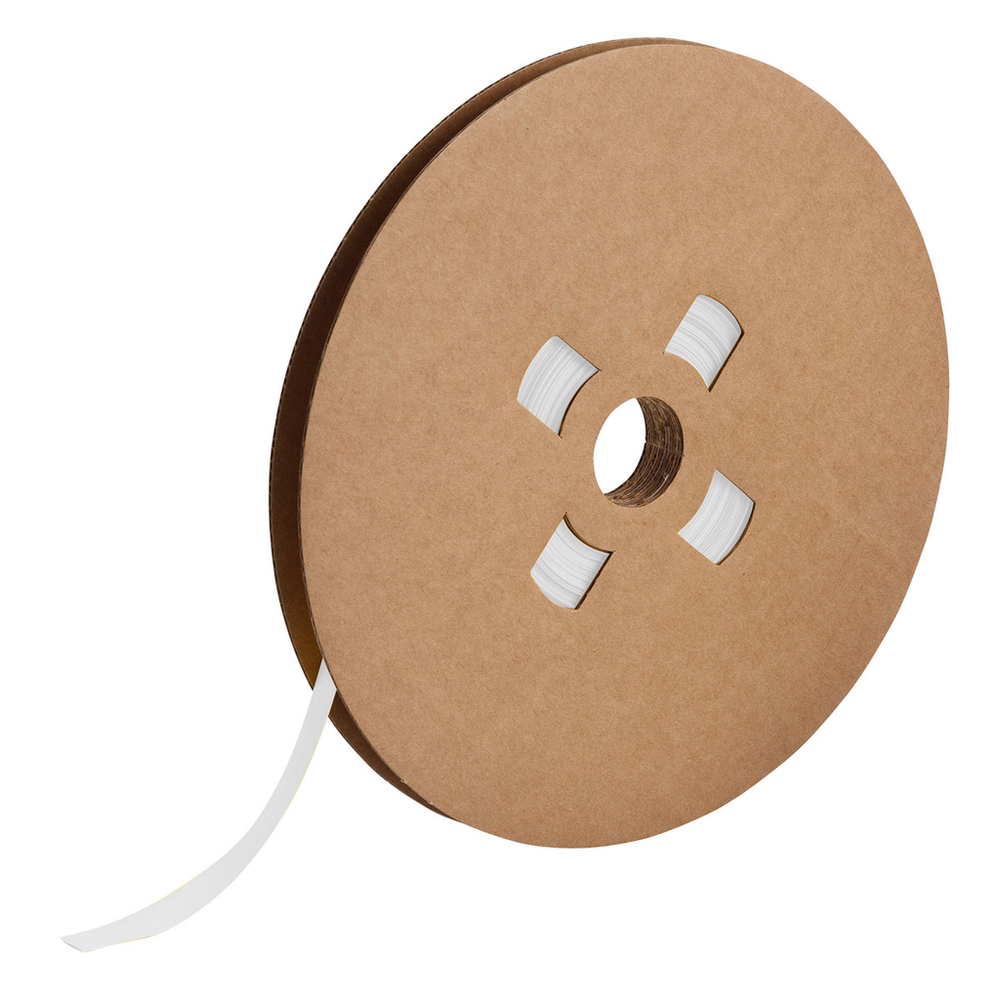

Brady HT-C-375-WT-J
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PermaSleeve® Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications.BradyPrinter Series PermaSleeve PVDF Wire Marker Sleeves, 0.375" Dia x 200' L, White
Brady HT-C-375-WT-J is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Regulatory Information
- Contains CA PROP 65 Substance
- No
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliance
- Pass 2011/65/EU
- EU RoHS Compliant
- Yes
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Specifications
- Adhesive (Y/N)
- No
- Applications
- Wire and Cable Labeling
- Brady Material Number
- B-345
- Brand Name
- Brady®
- Color
- White
- Diameter as Supplied (in/ft/yd)
- 0.375 in
- Diameter as Supplied (mm/cm/m)
- 9.5 mm
- Dimensions
- 0.645 in H
- Dimensions 2
- 0.645 in H
- Dimensions (Metric)
- 16.38 mm W x 16.4 mm H x 60.96 m L
- Enables Industry Compliance
- Method 215K; MIL-STD-202G; SAE-AMS-DTL-23053/18 (Class 2) for Insulation Sleeving; SAE-AS-81531 Marking of Electrical Insulating Materials
- Finish
- Matte
- For Use with Printer
- BBP®72 Label Printer; BradyPrinter i5100; BradyPrinter i7100; THT 3" Core Printer
- Height (in/ft/yd)
- 0.645 in
- Height (mm/cm/m)
- 16.4 mm
- Indoor or Outdoor Use
- Outdoor Use
- Label/Media Format
- Roll
- Label Properties
- Heat Shrink Sleeves
- Material
- High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve
- Material Properties
- Flame-retardant; Heat-shrinkable
- Maximum Service Temperature °C
- 225 °C
- Maximum Service Temperature °F
- 437 °F
- Maximum Wire Diameter (in/ft/yd)
- 0.32 in
- Maximum Wire Diameter (mm/cm/m)
- 8.13 mm
- Maximum Wire Gauge
- 4 AWG
- Minimum Service Temperature °C
- -55 °C
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (in/ft/yd)
- 0.188 in
- Minimum Wire Diameter (mm/cm/m)
- 4.78 mm
- Minimum Wire Gauge
- 8 AWG
- Primary Noun, Basic Function
- Heat Shrink Tubing
- Printable Sides
- Single-Side Printable
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility
- BBP72
- Printer Compatibility (Print)
- BBP72
- Print Technology
- Thermal Transfer
- Recommended Ribbon
- R6006
- Recovered Diameter (in/ft/yd)
- 0.188 in
- Recovered Diameter (mm/cm/m)
- 4.8 mm
- Recovered Wall Thickness (in/ft/yd)
- 0.015 in
- Recovered Wall Thickness (mm/cm/m)
- 0.38 mm
- Resistance Properties
- Chemical-Resistant; Gasoline-Resistant; Smear-Resistant
- Ribbon Series
- R6000HF
- Roll Length (in/ft/yd)
- 200 ft
- Roll Length (mm/cm/m)
- 60.96 m
- SAP B-Number
- B-345
- Shape
- Continuous
- Shrink Ratio
- 2:1
- Size - Length (m)
- 60.96 m
- Size - Width (mm)
- 16.38 mm
- Sleeve Size (in/ft/yd)
- 0.375 in Dia x 200 ft L
- Sleeve Size (mm/cm/m)
- 9.5 mm Dia x 60.96 m L
- Suggested Ribbon Series
- R6000 Halogen Free; R6600
- Total Qty per Pack
- 1 Roll(s) / Roll
- Trade Name
- PermaSleeve®
- Wire Diameter Range
- 0.188 in to 0.32 in
- Wire Gauge Range
- 8 AWG to 4 AWG
