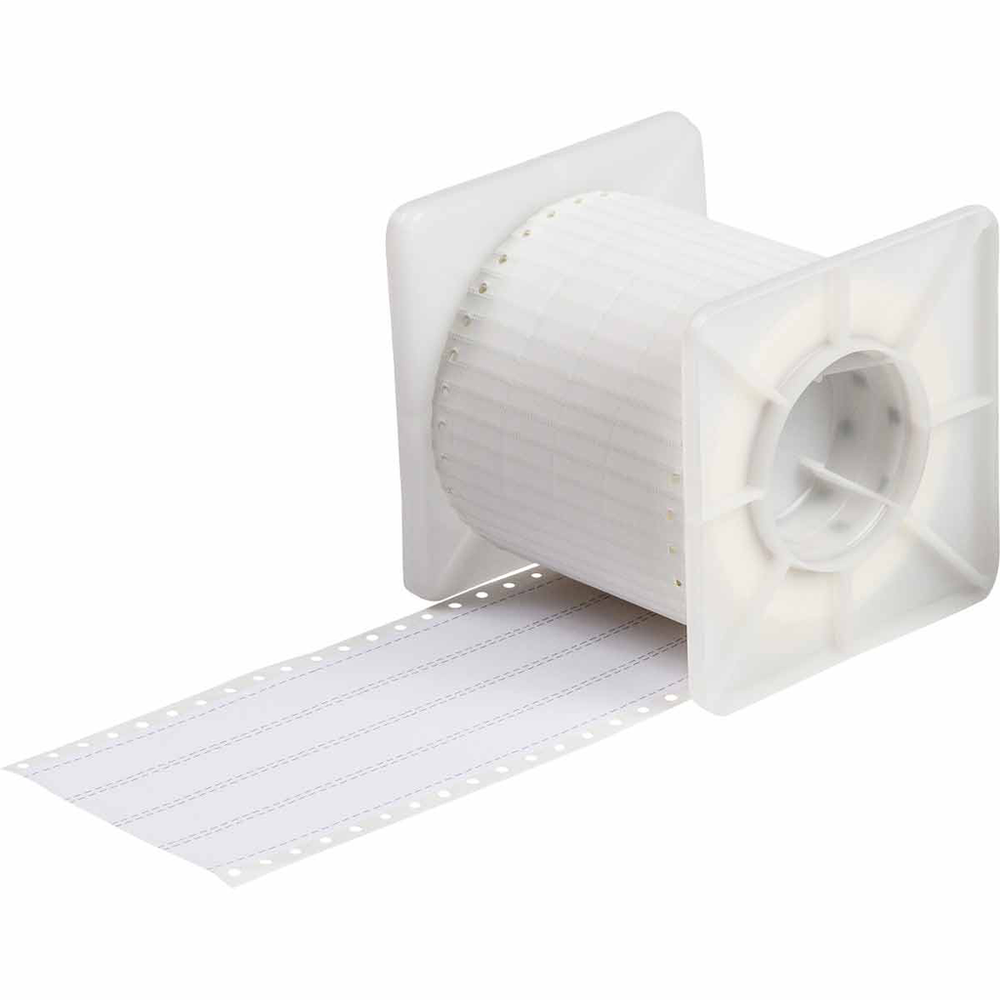

Brady HCPS-0.9-3336-WT
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Heat-Shrinkable Polyolefin Sleeves (B-321) feature a special print receptive topcoat that absorbs printing inks and provides permanent legibility even under severe conditions.BradySleeve Heat Shrink Polyolefin Sleeves, Pack of 5000 Each, White, 0.13"
Brady HCPS-0.9-3336-WT is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Regulatory Information
- Contains CA PROP 65 Substance
- No
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- EU RoHS Compliant
- Yes
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Specifications
- Applications
- Wire and Cable Labeling
- Brady Material Number
- B-321
- Brand Name
- Brady®
- Color
- White
- Diameter as Supplied (in/ft/yd)
- 0.13 in
- Diameter as Supplied (mm/cm/m)
- 3.3 mm
- Dimensions
- 0.333 in H
- Dimensions 2
- 0.333 in H
- Dimensions (Metric)
- 22.86 mm W x 8.46 mm H
- Enables Industry Compliance
- ASTM D 1000; ASTM D 882; ASTM G 155; MIL-M-81531; MIL-STD-202
- Finish
- Matte
- For Use with Printer
- Dot Matrix Printers
- Height (in/ft/yd)
- 0.333 in
- Height (mm/cm/m)
- 8.46 mm
- Label/Media Format
- Roll
- Label Properties
- Heat Shrink Sleeves
- Material
- Heat-shrink Polyolefin
- Material Properties
- Heat-shrinkable
- Maximum Service Temperature °C
- 120 °C
- Maximum Service Temperature °F
- 248 °F
- Maximum Wire Diameter (in/ft/yd)
- 0.13 in
- Maximum Wire Diameter (mm/cm/m)
- 3.30 mm
- Maximum Wire Gauge
- 12 AWG
- Minimum Service Temperature °C
- -40 °C
- Minimum Service Temperature °F
- -40 °F
- Minimum Wire Diameter (in/ft/yd)
- 0.075 in
- Minimum Wire Diameter (mm/cm/m)
- 1.90 mm
- Minimum Wire Gauge
- 16 AWG
- National Stock Number (NSN)
- 5975014061401
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Single-Side Printable
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility
- Dot Matrix; SLV-DAT-PTR
- Print Technology
- Dot Matrix
- Quantity per Roll
- 5000
- Quantity per Row
- 4
- Recovered Diameter (in/ft/yd)
- 0.075 in
- Recovered Diameter (mm/cm/m)
- 1.91 mm
- Recovered Wall Thickness (in/ft/yd)
- 0.0065 in
- Recovered Wall Thickness (mm/cm/m)
- 0.17 mm
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
- Ribbon Series
- R5000
- Roll Width (in/ft/yd)
- 0.9 in
- Roll Width (mm/cm/m)
- 22.86 mm
- SAP B-Number
- B-321
- Shrink Ratio
- 2:1
- Size - Width (mm)
- 22.86 mm
- Sleeve Size (in/ft/yd)
- 0.13 in Dia x 0.23 in W
- Sleeve Size (mm/cm/m)
- 3.3 mm Dia x 5.84 mm W
- Sleeve Slits
- Yes
- Sleeve Width (in/ft/yd)
- 0.23 in
- Sleeve Width (mm/cm/m)
- 5.84 mm
- Suggested Ribbon Series
- R5000
- Thickness (in/ft/yd)
- 0.0065 in
- Thickness (mm/cm/m)
- 0.16 mm
- Total Qty per Pack
- 5000 Sleeve(s) / Roll
- Total Quantity
- 5000
- Trade Name
- BradySleeve™
- Vertical Repeat
- 0.333 in
- Wire Diameter Range
- 0.075 in to 0.13 in
- Wire Gauge Range
- 16 AWG to 12 AWG
