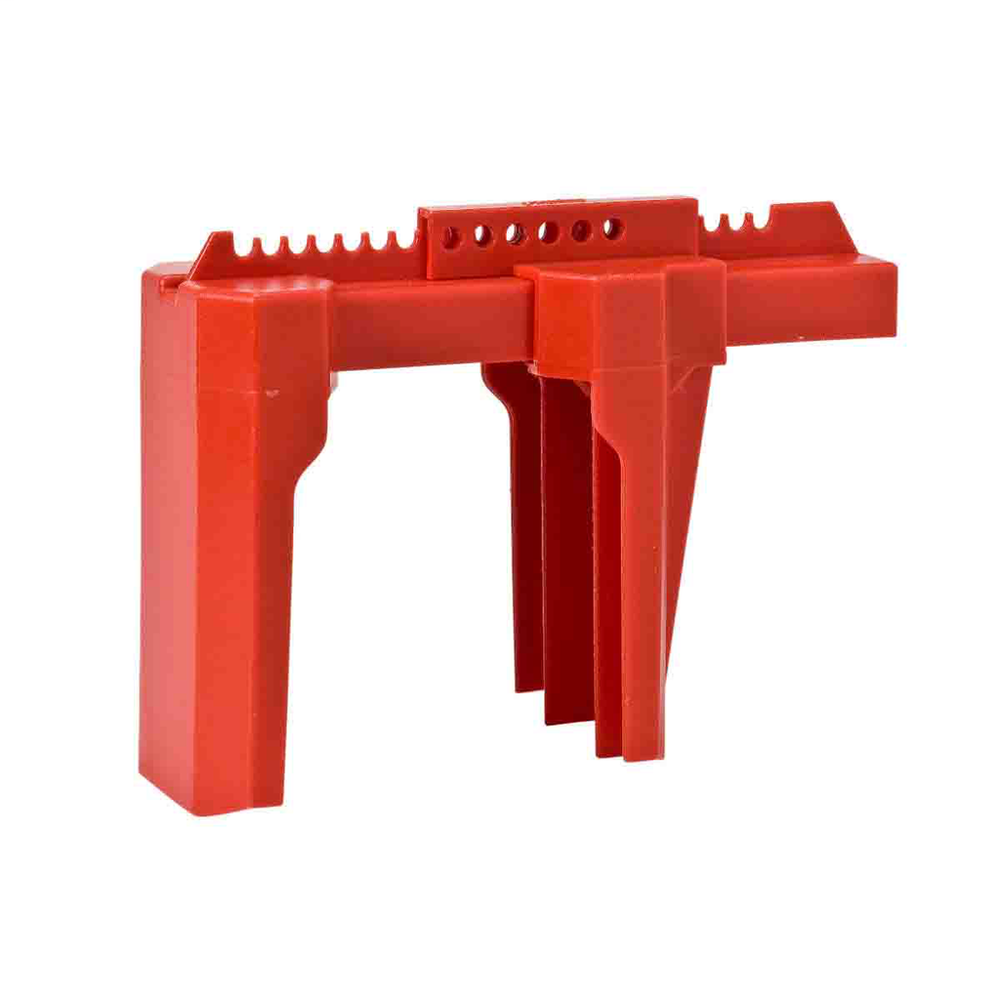

Brady BS08A-RD
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Patented design and ultra-tough polypropylene material make these devices the best choice to assuredly lock out your ball valves.Large Ball Valve Lockout Device, Red Pipe Diameter Range: 2 to 8 in
Brady BS08A-RD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Regulatory Information
- Contains 3TG Mineral
- Not Applicable
- Contains CA PROP 65 Substance
- No
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- EU RoHS Compliant
- Yes
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Specifications
- Ball Valve Lockout Type
- Fits over Valve
- Brady Material Number
- LOTO-22
- Brand Name
- Brady®
- Color
- Red
- Conductivity
- Conductive
- Depth (in/ft/yd)
- 12 in
- Depth (mm/cm/m)
- 30.48 cm
- Dimensions
- 8.666 in H x 4.44 in W x 12 in D
- Dimensions (Metric)
- 220 mm H x 30.48 cm D
- Enables Industry Compliance
- OSHA 1910.147
- Height (in/ft/yd)
- 8.666 in
- Height (mm/cm/m)
- 220 mm
- Lockout Material
- Polypropylene
- Maximum Handle Thickness (in/ft/yd)
- 1 in
- Maximum Handle Thickness (mm/cm/m)
- 25.4 mm
- Maximum Handle Width (in/ft/yd)
- 1.75 in
- Maximum Handle Width (mm/cm/m)
- 44.45 mm
- Maximum Number of Padlocks
- 2
- Maximum Pipe Diameter (in/ft/yd)
- 8 in
- Maximum Pipe Diameter (mm/cm/m)
- 203.2 mm
- Maximum Service Temperature °C
- 150 °C
- Maximum Service Temperature °F
- 302 °F
- Maximum Shackle Diameter (in/ft/yd)
- 0.313 in
- Maximum Shackle Diameter (mm/cm/m)
- 7.95 mm
- Maximum Valve Size
- 8 in
- Minimum Pipe Diameter (in/ft/yd)
- 2 in
- Minimum Pipe Diameter (mm/cm/m)
- 50.8 mm
- Minimum Service Temperature °C
- -40 °C
- Minimum Service Temperature °F
- -40 °F
- Minimum Shackle Clearance (in/ft/yd)
- 0.75 in
- Minimum Shackle Clearance - (mm/cm/m)
- 19.05 mm
- Minimum Valve Size (in/ft/yd)
- 2 in
- Open or Closed Valve
- Closed
- Pipe Diameter Range (in/ft/yd)
- 2 to 8 in
- Pipe Diameter Range (mm/cm/m)
- 50.8 mm to 203.2 mm
- Primary Noun, Basic Function
- Lockout Device
- Risk Type
- Mechanical Risk
- SAP B-Number
- LOTO-22
- Service Temperature Range °C
- -40 °C to 150 °C
- Service Temperature Range °F
- -40 °F to 302 °F
- Sign Size-General
- 8.666 in x 4.44 in
- Valve Size Range
- 2 to 8 in
- Width (in/ft/yd)
- 4.44 in
- Width (mm/cm/m)
- 112.78 mm
