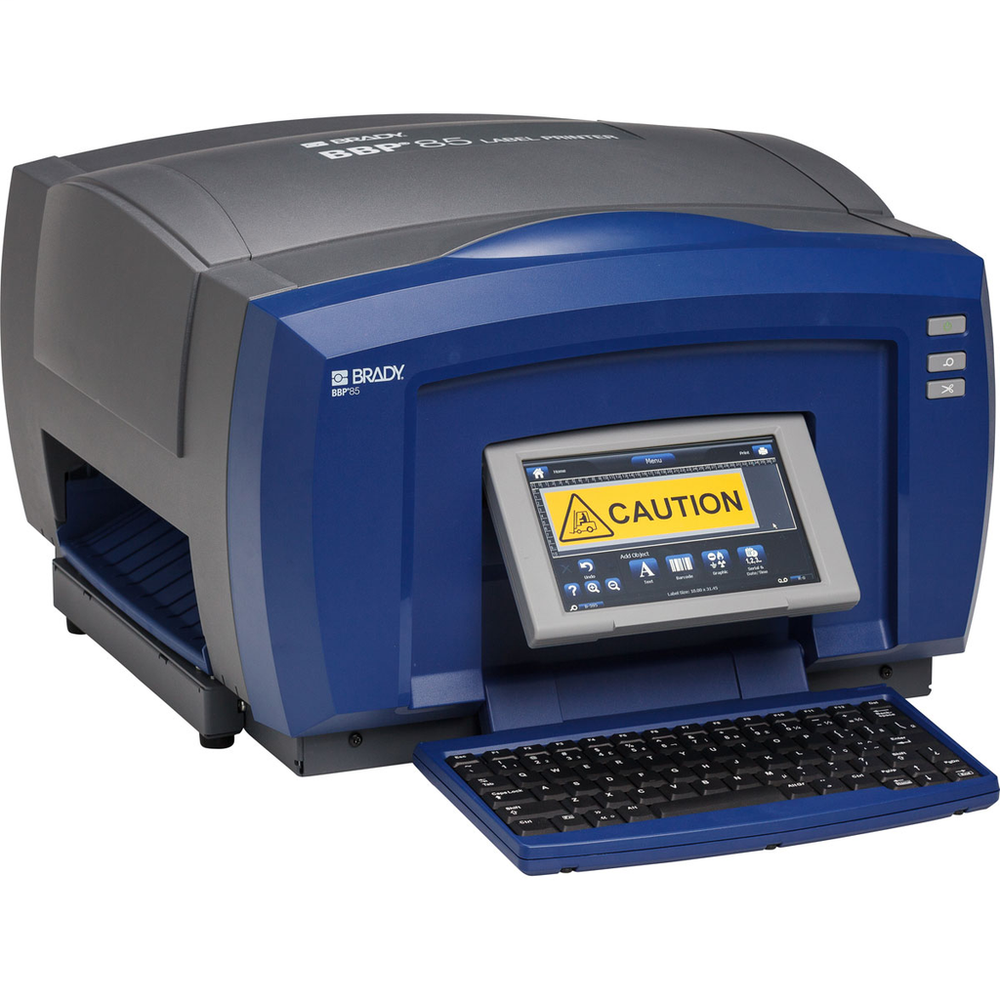

Brady BBP85

Regulatory Information

• Contains CA PROP 65 Substance
  • No
  • No - Does not contain
• Contains Heavy Metal(s)
  • Unavailable
• EU RoHS Compliance
  • Pass Ex 2015/863
• EU RoHS Compliant
  • Yes
• SDS Safety Data Sheet required
  • Yes = MSDS/SDS is required

Specifications

• Accessories Available
  • Dust Cover, Replacement Stylus Pens; NET-WIFI card, NET-BT-WIFI-LAN card; Print Head Cleaning Swabs (PCK-6)
• Applications
  • Component and Equipment Labeling; Electrical Labeling; Exit and Egress Marking; Facility Identification; General Identification; Hazard Communication Identification; Lean and 5S Labeling; Pipe and Valve Marking
• Automatic Label Set Up
  • Yes
• Auto Shut-Off / Power Conserve
  • Yes
• Barcode Capability
  • Yes
• Barcode Symbologies - 2D
  • More Through Brady Workstation and MarkWare; PDF 417; QR Code
• Barcode Symbologies - Linear
  • Code 128 Auto; Code 39; EAN/JAN-13; Interleaved 2 of 5 UPCA; More Through Brady Workstation and MarkWare
• Brand Name
  • Brady®
• Built-In Label Wizards
  • Arc Flash; Custom Label; General Templates; GHS/CLP; Gradient Scale; Pipe Marker; PreMade Labels; Right-to-Know; WHMIS
• Calculated Language
  • English (US), French (France), Portuguese (Portugal), Spanish (Spain)
• Calibration Required
  • No
• Color Printing Capability
  • Multi-Color
• Compatible Brady B-Numbers
  • B-526; B-569; B-584; B-595; B-7569
• Compatible Media
  • B85-
• Connectivity Options
  • Ethernet; Standalone Use; USB
• Continuous & Die-Cut Materials Supported
  • Continuous Tapes & Die-Cut Labels
• Custom Media Parts Available
  • No
• Cut Options Available
  • Cut at the end of print jobs; Cut between labels
• Cutter Type
  • Auto Cutter
• Depth (in/ft/yd)
  • 20 in
• Depth (mm/cm/m)
  • 508.00 mm
• Desktop Printer Model
  • BBP®85 Industrial Sign and Label Printer
• Dimensions
  • 12 in H x 18.25 in W x 20 in D
• Dimensions (Metric)
  • 500.00 mm W x 304.80 mm H x 310.00 mm L x 508.00 mm D
• Display Type
  • Color Touch Screen
• Enables Industry Compliance
  • cULus, CE, UL-AR & S Mark, UL NOM CoC, RCM Mark, EAC, KC, CCC, RoHS, BIS, BSMI, LOA, SABS
• Estimated Media Changeover Time
  • 40 s
• Font Sizes
  • 0.05 in to 8.9 in Text
• Font Styles
  • Arial; Arial 65; Courier New; Tahoma; Times New Roman
• Height (in/ft/yd)
  • 12 in
• Height (mm/cm/m)
  • 304.80 mm
• Includes
  • (1) BBP®85 Printer (BBP85); (1) Cleaning Kit (PCK-6); (1) Documentation CD; (1) Network Card; (1) Power Cable; (1) Print Driver CD; (1) Quick Start Guide; (1) USB Cable
• Industry
  • Beverage processing; Buildings identification; Chemical; Construction; Education; Energy utilities; Food processing; Government; Healthcare; Manufacturing; Maritime; Mining; Oil & gas; Process; Pulp & paper; Tourism & recreation; Warehouse & logistics
• Keyboard Type
  • Full Size QWERTY
• Label Material Types
  • Indoor/Outdoor Grade Vinyl; Low-Halide Polyester; Photoluminescent Tape; Pre-Printed GHS/CLP Labels; Pre-Printed Sign Header Labels; Reflective Tape; Right-To-Know Chemical Labels
• Label/Media Format
  • Cartridge
• Languages Available
  • English (US); French (France); Portuguese (Portugal); Spanish (Spain)
• Manual Calibration Required
  • No
• Maximum Labels per Day
  • 100 10x14 labels
• Maximum Label/Tape Width (in/ft/yd)
  • 10 in
• Maximum Label/Tape Width (mm/cm/m)
  • 254.00 mm
• Maximum Liner Width (in/ft/yd)
  • 10.25 in
• Maximum Printed Label Length (in/ft/yd)
  • 16.7 ft
• Maximum Printed Label Length (mm/cm/m)
  • 5090.16 mm
• Maximum Print Speed
  • 1 in/s
• Maximum Print Width (in/ft/yd)
  • 10 in
• Maximum Print Width (mm/cm/m)
  • 254.00 mm
• Media Sensor Adjustment
  • Not Required
• Media Sensor Type
  • Notch
• Memory
  • 64 MB
• Minimum Label Length (in/ft/yd)
  • 2 in
• Minimum Label Length (mm/cm/m)
  • 50.80 mm
• Mode of Operation
  • Stand-Alone & PC Connect
• Number of Stock Parts
  • 100+ standard parts
• Number of Symbols
  • 664
• Operating Humidity Range
  • 20%-80% (RH non-condensing)
• Operating Temperature Range °C
  • 10°C - 40°C
• Operating Temperature Range °F
  • 50°F - 104°F
• Patent Number(s)
  • US Patents 8,783,983
• Plug Type
  • IEC Type B
• Portability
  • No
• Power Supply Voltage
  • 110 to 240 V
• Primary Noun, Basic Function
  • Printer
• Printer and Label Applications
  • General Identification; Hazardous Materials; Lean / 5S; Pipe Marker; Safety
• Printer Features
  • Multi-Color Printers
• Print Multiple Copies
  • Yes
• Print Preview Feature
  • Yes
• Print Resolution
  • 300 dpi
• Print Technology
  • Thermal Transfer
• Ribbon Usage
  • 158.8 or 223.5mm
• Serialization Feature
  • Yes
• Sign Size-General
  • 12 in x 18.25 in
• Size - Length (mm)
  • 310.00 mm
• Size - Width (mm)
  • 500.00 mm
• Size - W x H x D (mm)
  • 500.00 x 304.80 x 508.00
• Software Compatibility
  • Brady® Workstation; MarkWare™
• Special Characters Quantity
  • 95
• Storage Humidity Range
  • 15%-90% (RH non-condensing)
• Storage Temperature Range °C
  • -20° to 50°C
• Storage Temperature Range °F
  • -4°F - 122°F
• Supply Remaining Gauge
  • Yes
• Symbols Categories
  • Arrows; CLP/GHS; Fire Safety; First Aid & Rescue; Hazardous Transport; Mandatory; Miscellaneous; Packaging; Personal Protective Equipment; Prohibition; Safety Sign Headers; Shapes; Warning; WHMIS
• Text Formatting Options
  • Bold; Expand/Condense Text Width; Font Sizes; Font Styles; Frame; Italics; Justification; Mirror Print; Reverse Print; Rotate Object; Underlined; Vertical Text
• Time Date/Stamp
  • Yes
• Total Qty per Pack
  • 1 Piece(s) / Box
• Trade Name
  • BBP®85
• Units
  • Inches; mm; Points
• User Interface Type
  • Keyboard; Touch Screen
• Warranty
  • 5 Years
• Warranty (EMEA)
  • 1 Year
• Weight (g/kg)
  • 22.00
• Weight (oz/lb)
  • 53 lb
• Width (in/ft/yd)
  • 18.25 in
• Width (mm/cm/m)
  • 46.355 cm
