Description

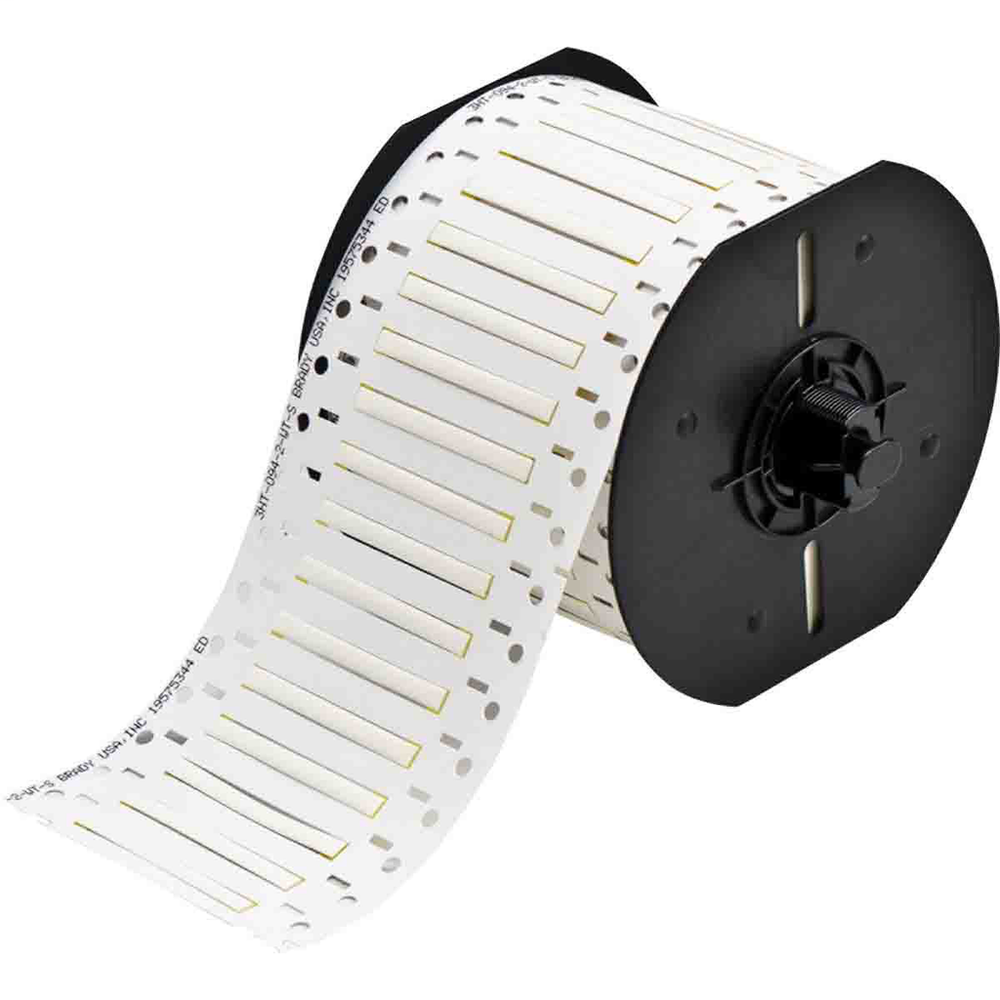

PermaSleeve® Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications.B33 Series PermaSleeve High Temp PVDF Wire Marking Sleeves, 0.094" Dia x 2" W, White
Brady B33D-94-2-345 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- No
- Contains Heavy Metal(s)
- No - Does not contain
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- EU RoHS Compliant
- Yes
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Specifications
- Applications
- Electrical Labeling; Temperature Indicating Labeling; Wire and Cable Labeling
- Brady Material Number
- B-345
- Brand Name
- Brady®
- Color
- White
- Diagram
- Icon 14 (v)
- Diameter as Supplied (in/ft/yd)
- 0.094 in
- Diameter as Supplied (mm/cm/m)
- 2.4 mm
- Dimensions
- 0.182 in H
- Dimensions 2
- 0.182 in H
- Dimensions (Metric)
- 50.80 mm W x 4.60 mm H
- Enables Industry Compliance
- ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202G; NASA SP-R-0022A; SAE-AMS-DTL-23053; SAE-AS-81531
- Finish
- Matte
- For Use with Printer
- BBP®33 Label Printer; BradyPrinter i3300
- Height (in/ft/yd)
- 0.182 in
- Height (mm/cm/m)
- 4.60 mm
- Indoor or Outdoor Use
- Outdoor Use
- Industry
- Aerospace; Electrical; Mass transit; Voice & data communication
- Label/Media Format
- Roll
- Label Properties
- Heat Shrink Sleeves
- Manufacturer Part Number
- B33D-94-2-345
- Material
- High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve
- Material Properties
- Flame-retardant; Heat-shrinkable
- Maximum Service Temperature °C
- 225 °C
- Maximum Service Temperature °F
- 437 °F
- Maximum Wire Diameter (in/ft/yd)
- 0.08 in
- Maximum Wire Diameter (mm/cm/m)
- 2.00 mm
- Maximum Wire Gauge
- 20 AWG
- Minimum Service Temperature °C
- -55 °C
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (in/ft/yd)
- 0.031 in
- Minimum Wire Diameter (mm/cm/m)
- 0.79 mm
- Minimum Wire Gauge
- 26 AWG
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Double-Side Printable
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility
- i3300; BBP33
- Printer Compatibility (Print)
- i3300
- Print Technology
- Thermal Transfer
- Quantity per Roll
- 1000
- Quantity per Row
- 1
- Recommended Ribbon
- B30-R6000
- Recovered Diameter (in/ft/yd)
- 0.031 in
- Recovered Diameter (mm/cm/m)
- 0.8 mm
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; High Temperature-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
- Ribbon Series
- B30-R6000HF
- Roll Width (in/ft/yd)
- 2 in
- Roll Width (mm/cm/m)
- 50.8 mm
- SAP B-Number
- B-345
- Shrink Ratio
- 2:1
- Size - Width (mm)
- 50.80 mm
- Sleeve Size (in/ft/yd)
- 0.094 in Dia x 2 in W
- Sleeve Size (mm/cm/m)
- 2.4 mm Dia x 50.8 mm W
- Sleeve Width (in/ft/yd)
- 2 in
- Sleeve Width (mm/cm/m)
- 50.8 mm
- Software Compatibility
- Brady Workstation, LabelMark, MarkWare
- Suggested Ribbon Series
- R6000 Halogen Free
- Total Qty per Pack
- 1000 Sleeve(s) / Box
- Total Quantity
- 1000
- Trade Name
- BBP®33 PermaSleeve®
- Vertical Repeat
- 0.5 in
- Web Width (mm/cm/m)
- 89.00 mm
- Wire Diameter Range
- 0.031 in to 0.08 in
- Wire Gauge Range
- 26 AWG to 20 AWG
