Brady B33D-2000-2-7642
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

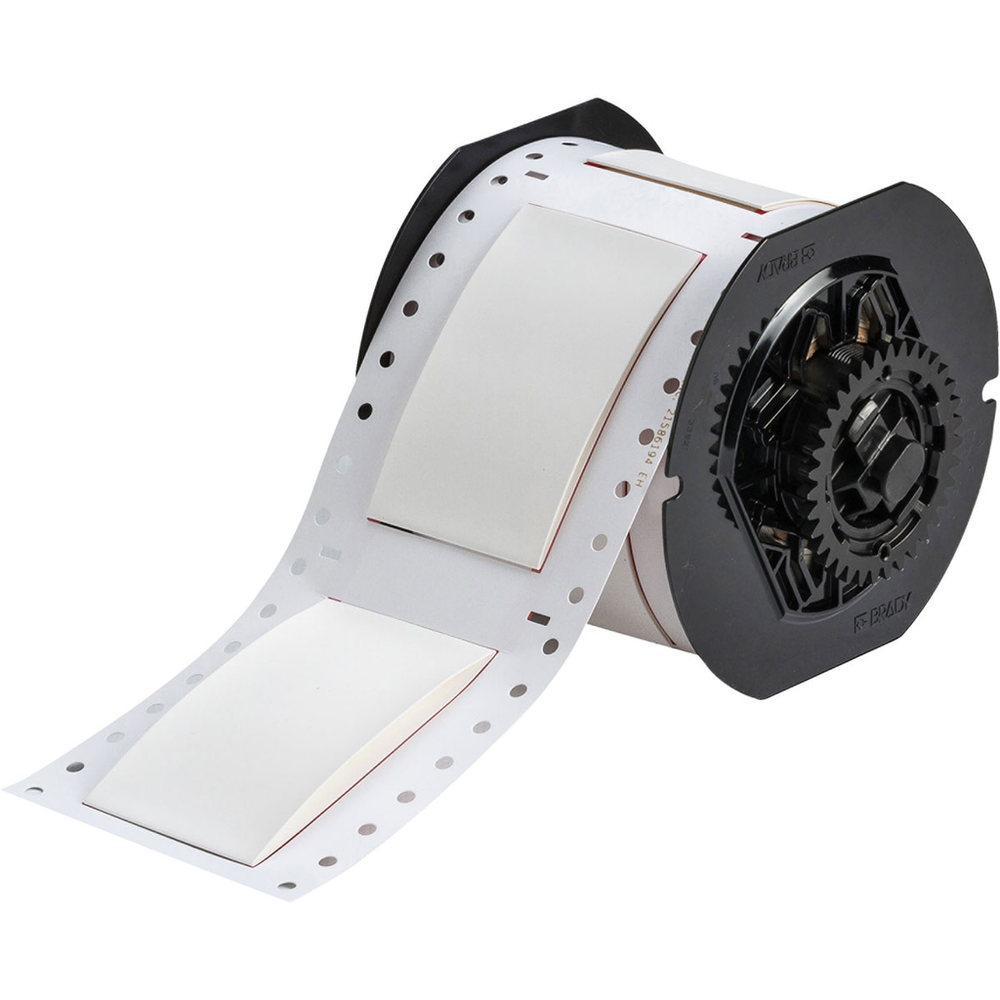

Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.B33 Series PermaSleeve HX Heat Shrink Wire Marking Sleeves, 2" Dia x 2" W, White, Roll of 50, Double-Side Printable
Brady B33D-2000-2-7642 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Regulatory Information
- CA Prop 65 Labeled
- Yes
- CA Prop 65 Label Warning
- WARNING: Cancer - www.P65warnings.ca.gov
- Contains CA Prop 65 Cancer Causing Chemical
- Antimony Trioxide
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Yes
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- Unavailable
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- EU RoHS Compliant
- Yes
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Brady Material Number
- B-7642
- Brand Name
- Brady®
- Color
- White
- Diagram
- Icon 14 (v)
- Diameter as Supplied (in/ft/yd)
- 2 in
- Diameter as Supplied (mm/cm/m)
- 50.8 mm
- Dimensions
- 3.165 in H
- Dimensions 2
- 3.165 in H
- Dimensions (Metric)
- 50.80 mm W x 80.40 mm H
- Enables Industry Compliance
- ASTM D 570; ASTM D 638; ASTM D 792; ASTM D 876; ASTM D 882; ASTM G 21; Halogen Free (DIN VDE 0472 part 815); MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized; VW-1
- Finish
- Matte
- For Use with Printer
- BBP®33 Label Printer; BradyPrinter i3300
- Height (in/ft/yd)
- 3.165 in
- Height (mm/cm/m)
- 80.40 mm
- Industry
- Aerospace; Electrical; Voice & data communication
- Label/Media Format
- Roll
- Label Properties
- Heat Shrink Sleeves
- Manufacturer Part Number
- B33D-2000-2-7642
- Material
- Heat-shrink Polyolefin
- Material Properties
- Heat-shrinkable
- Maximum Service Temperature °C
- 120 °C
- Maximum Service Temperature °F
- 248 °F
- Maximum Wire Diameter (in/ft/yd)
- 1.95 in
- Maximum Wire Diameter (mm/cm/m)
- 48.26 mm
- Minimum Service Temperature °C
- -40 °C
- Minimum Service Temperature °F
- -40 °F
- Minimum Wire Diameter (in/ft/yd)
- 1 in
- Minimum Wire Diameter (mm/cm/m)
- 25.40 mm
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Double-Side Printable
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility
- i3300; BBP33
- Printer Compatibility (Print)
- i3300
- Print Technology
- Thermal Transfer
- Quantity per Roll
- 50
- Quantity per Row
- 1
- Recommended Ribbon
- B30-R4300
- Recovered Diameter (in/ft/yd)
- 1 in
- Recovered Diameter (mm/cm/m)
- 25.4 mm
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
- Ribbon Series
- B30-R4300
- Roll Width (in/ft/yd)
- 2 in
- Roll Width (mm/cm/m)
- 50.8 mm
- SAP B-Number
- B-7642
- Shrink Ratio
- 2:1
- Size - Width (mm)
- 50.80 mm
- Sleeve Size (in/ft/yd)
- 2 in Dia x 2 in W
- Sleeve Size (mm/cm/m)
- 50.8 mm Dia x 50.8 mm W
- Sleeve Width (in/ft/yd)
- 2 in
- Sleeve Width (mm/cm/m)
- 50.8 mm
- Software Compatibility
- Brady Workstation, LabelMark, MarkWare
- Suggested Ribbon Series
- R4300; R6000 Halogen Free; R6400; R6600
- Total Qty per Pack
- 50 Sleeve(s) / Box
- Total Quantity
- 50
- Trade Name
- BBP®33 PermaSleeve®
- Vertical Repeat
- 4 in
- Web Width (mm/cm/m)
- 89.00 mm
- Wire Diameter Range
- 1 in to 1.95 in
