Description

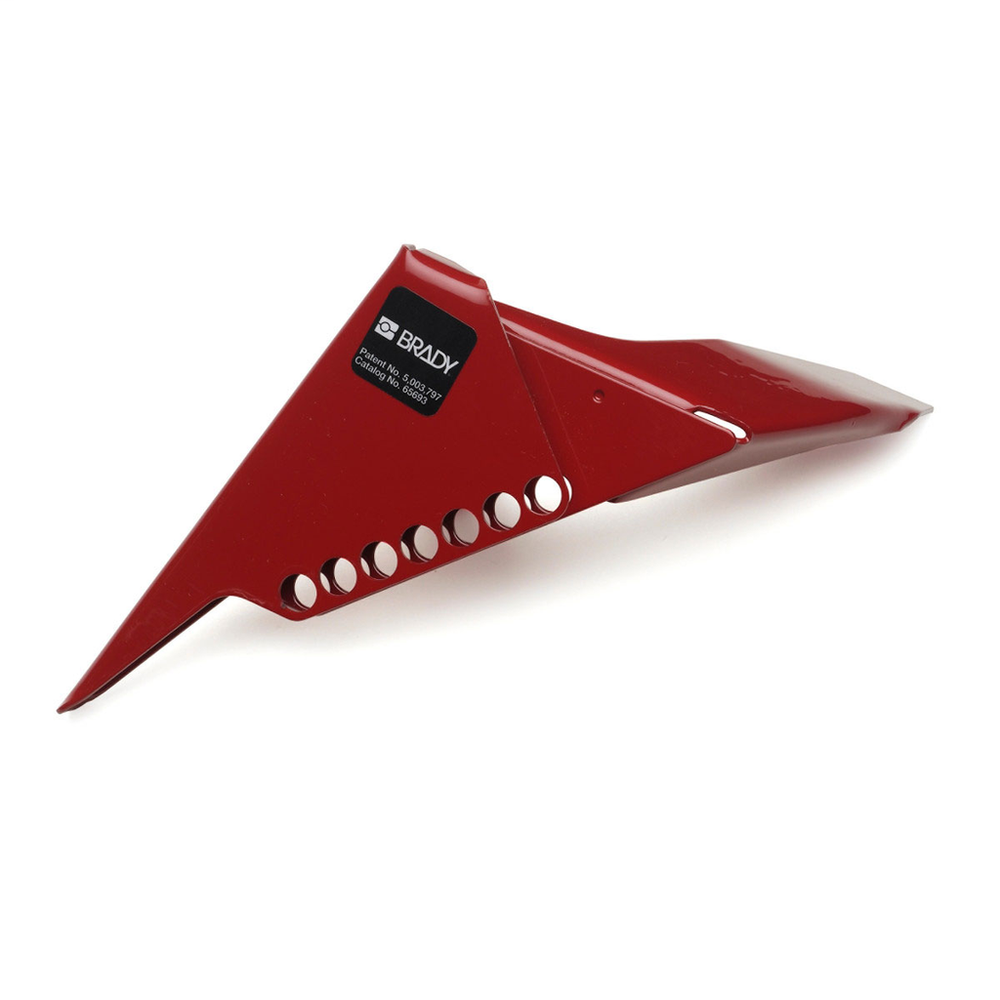

The easy-to-use, single piece design of Ball Valve Lockouts from Brady® makes them the perfect tool for securing your valve handles in the off position.Large Steel Ball Valve Lockout Device Pipe Diameter Range: 1-1/4 to 3 in
Brady 65693 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- No
- Contains Heavy Metal(s)
- No - Does not contain
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliance
- Not Applicable
- EU RoHS Compliant
- No
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Specifications
- Adhesive (Y/N)
- No
- Ball Valve Lockout Type
- Fits over Handle
- Brady Material Number
- LOTO-23
- Brand Name
- Brady®
- Coating Material
- Powder Coated
- Color
- Red
- Depth (in/ft/yd)
- 7.5 in
- Depth (mm/cm/m)
- 190.5 mm
- Diameter (mm/cm/m)
- 15.00 mm
- Dimensions
- 4.8 in H x 5 in W x 7.5 in D
- Dimensions (Metric)
- 127.00 mm W x 121.92 mm H x 15.00 mm Dia x 190.5 mm D
- Enables Industry Compliance
- OSHA 1910.147
- Height (in/ft/yd)
- 4.8 in
- Height (mm/cm/m)
- 121.92 mm
- Hole Inside Diameter (mm/cm/m)
- 10.00 mm
- Lockout Material
- Steel
- Material
- Steel
- Maximum Handle Thickness (in/ft/yd)
- 0.43 in
- Maximum Handle Thickness (mm/cm/m)
- 10.92 mm
- Maximum Handle Width (in/ft/yd)
- 1.62 in
- Maximum Handle Width (mm/cm/m)
- 53.34 mm
- Maximum Number of Padlocks
- 1
- Maximum Outside Pipe Diameter (mm/cm/m)
- 31.75 - 76.20
- Maximum Pipe Diameter (in/ft/yd)
- 3 in
- Maximum Pipe Diameter (mm/cm/m)
- 76.2 mm
- Maximum Service Temperature °C
- 93 °C
- Maximum Service Temperature °F
- 200 °F
- Maximum Shackle Diameter (in/ft/yd)
- 0.375 in
- Maximum Shackle Diameter (mm/cm/m)
- 9.53 mm
- Maximum Valve Size
- 3 in
- Minimum Pipe Diameter (in/ft/yd)
- 1.25 in
- Minimum Pipe Diameter (mm/cm/m)
- 31.75 mm
- Minimum Service Temperature °C
- -30 °C
- Minimum Service Temperature °F
- -20 °F
- Minimum Shackle Clearance (in/ft/yd)
- 0.75 in
- Minimum Shackle Clearance - (mm/cm/m)
- 19.05 mm
- Minimum Valve Size (in/ft/yd)
- 1.25 in
- Number of Holes
- 7
- Open or Closed Valve
- Closed
- Pipe Diameter Range (in/ft/yd)
- 1-1/4 to 3 in
- Pipe Diameter Range (mm/cm/m)
- 31.75 mm to 76.2 mm
- Primary Noun, Basic Function
- Lockout Device
- Risk Type
- Mechanical Risk
- SAP B-Number
- LOTO-23
- Service Temperature Range °C
- -30 °C to 93 °C
- Service Temperature Range °F
- -20 °F to 200 °F
- Sign Size-General
- 4.8 in x 5 in
- Size of Valve Lever (mm)
- 32 - 76
- Size - Width (mm)
- 127.00 mm
- Size - W x H x D (mm)
- 127.00 x 121.92 x 190.5
- Total Qty per Pack
- 1 Piece(s) / Pack
- Valve Size Range
- 1.25 to 3 in
- Width (in/ft/yd)
- 5 in
- Width (mm/cm/m)
- 127 mm
