Description

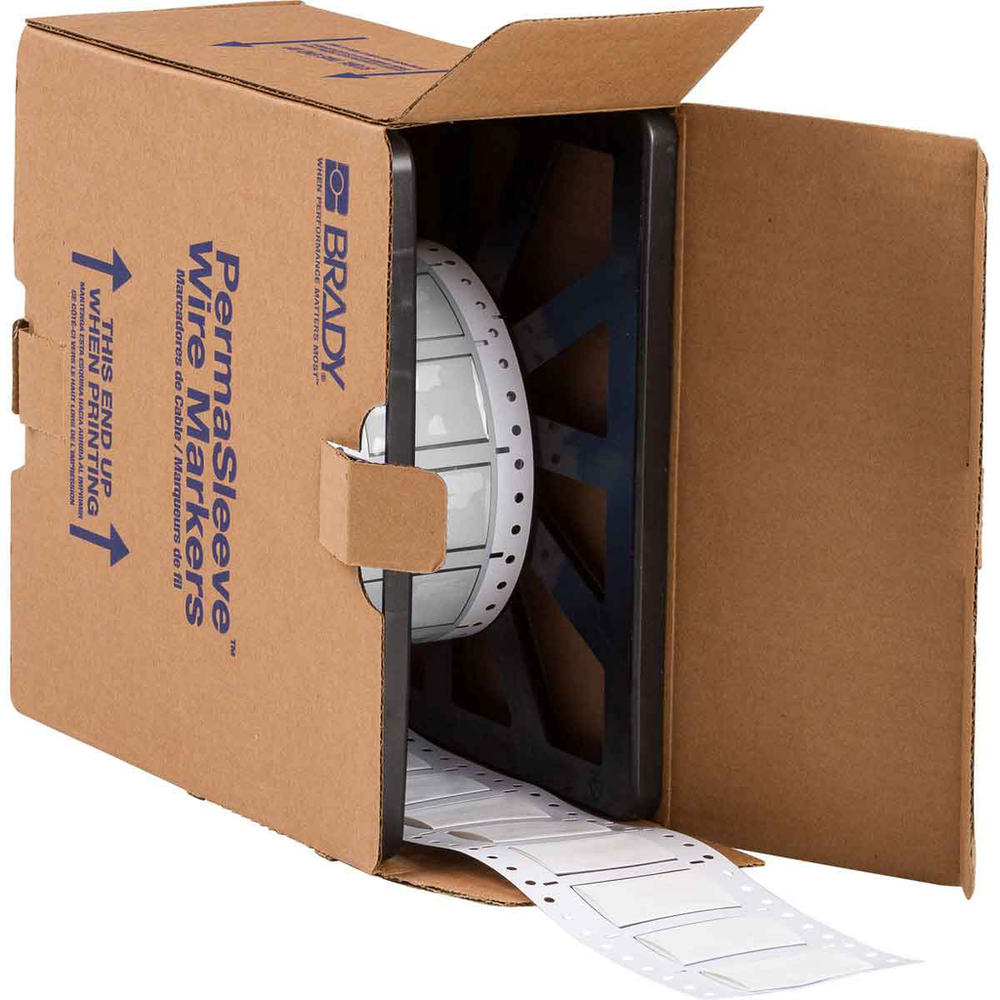

The B-7641 Heat Shrink Sleeve from Brady® is a low smoke, halogen free identification material used for wire and cable identification.Low Smoke Zero Halogen Double Sided PermaSleeve Heat Shrink Tubing, 0.75" Dia x 2" W, White, Roll of 250 Each
Brady 2LSZH-750-2-WT is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- No
- Contains Heavy Metal(s)
- No - Does not contain
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- EU RoHS Compliant
- Yes
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Specifications
- Adhesive (Y/N)
- No
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Brady Material Number
- B-7641
- Brand Name
- Brady®
- Color
- White
- Core Diameter (mm/cm/m)
- 76.20 mm
- Diameter as Supplied (in/ft/yd)
- 0.75 in
- Diameter as Supplied (mm/cm/m)
- 19.1 mm
- Dimensions
- 1.25 in H
- Dimensions 2
- 1.25 in H
- Dimensions (Metric)
- 50.80 mm W x 31.75 mm H
- Enables Industry Compliance
- ASTM D 257; ASTM D 2671; ASTM D 2671C; ASTM D 570; ASTM D 635; ASTM D 638; ASTM D 792; BS6853 (1999) Vehicle Category 1a; European Standard EN 45545-2, Requirement Set R22/R23, Vehicle Category HL3; Halogen Free (DIN VDE 0472 Part 815); MIL-M-81531; MIL-STD-202; MIL-STD-202G; SAE-AS-81531
- Finish
- Matte
- For Use with Printer
- BBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Height (in/ft/yd)
- 1.25 in
- Height (mm/cm/m)
- 31.75 mm
- Label/Media Format
- Roll
- Label Properties
- Heat Shrink Sleeves
- Markers per Roll
- 250
- Material
- Heat-shrink Polyolefin
- Material Properties
- Flame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen
- Maximum Service Temperature °C
- 105 °C
- Maximum Service Temperature °F
- 221 °F
- Maximum Wire Diameter (in/ft/yd)
- 0.7 in
- Maximum Wire Diameter (mm/cm/m)
- 17.78 mm
- Maximum Wire Gauge
- 4/0 AWG
- Minimum Service Temperature °C
- -55 °C
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (in/ft/yd)
- 0.375 in
- Minimum Wire Diameter (mm/cm/m)
- 9.53 mm
- Minimum Wire Gauge
- 2 AWG
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Double-Side Printable
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility
- BBP12; BBP11; BBP72; PR200Plus; PR300Plus; PR600Plus; i7100
- Printer Compatibility (Print)
- BBP12; BBP72; i7100
- Print Technology
- Thermal Transfer
- Quantity per Roll
- 250
- Quantity per Row
- 1
- Recommended Ribbon
- IP-R6007; R6007
- Recovered Diameter (in/ft/yd)
- 0.375 in
- Recovered Diameter (mm/cm/m)
- 9.5 mm
- Recovered Wall Thickness (in/ft/yd)
- 0.031 in
- Recovered Wall Thickness (mm/cm/m)
- 0.79 mm
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
- Ribbon Series
- R6600
- Roll Width (in/ft/yd)
- 2 in
- Roll Width (mm/cm/m)
- 50.8 mm
- SAP B-Number
- B-7641
- Shape
- Rectangle
- Shrink Ratio
- 2:1
- Size - Width (mm)
- 50.80 mm
- Sleeve Size (in/ft/yd)
- 0.75 in Dia x 2 in W
- Sleeve Size (mm/cm/m)
- 19.1 mm Dia x 50.8 mm W
- Sleeve Slits
- No
- Sleeve Width (in/ft/yd)
- 2 in
- Sleeve Width (mm/cm/m)
- 50.8 mm
- Software Compatibility
- LabelMark, CodeSoft
- Suggested Ribbon Series
- R6000 Halogen Free; R6600
- Total Qty per Pack
- 250 Sleeve(s) / Roll
- Total Quantity
- 250
- Trade Name
- PermaSleeve®
- Vertical Repeat
- 1.625 in
- Vertical Repeat (mm)
- 41.28 mm
- Web Width (in/ft/yd)
- 3.49 in
- Web Width (mm/cm/m)
- 88.65 mm
- Wire Diameter Range
- 0.375 in to 0.7 in
- Wire Gauge Range
- 2 AWG to 4/0 AWG
