Brady 149453
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

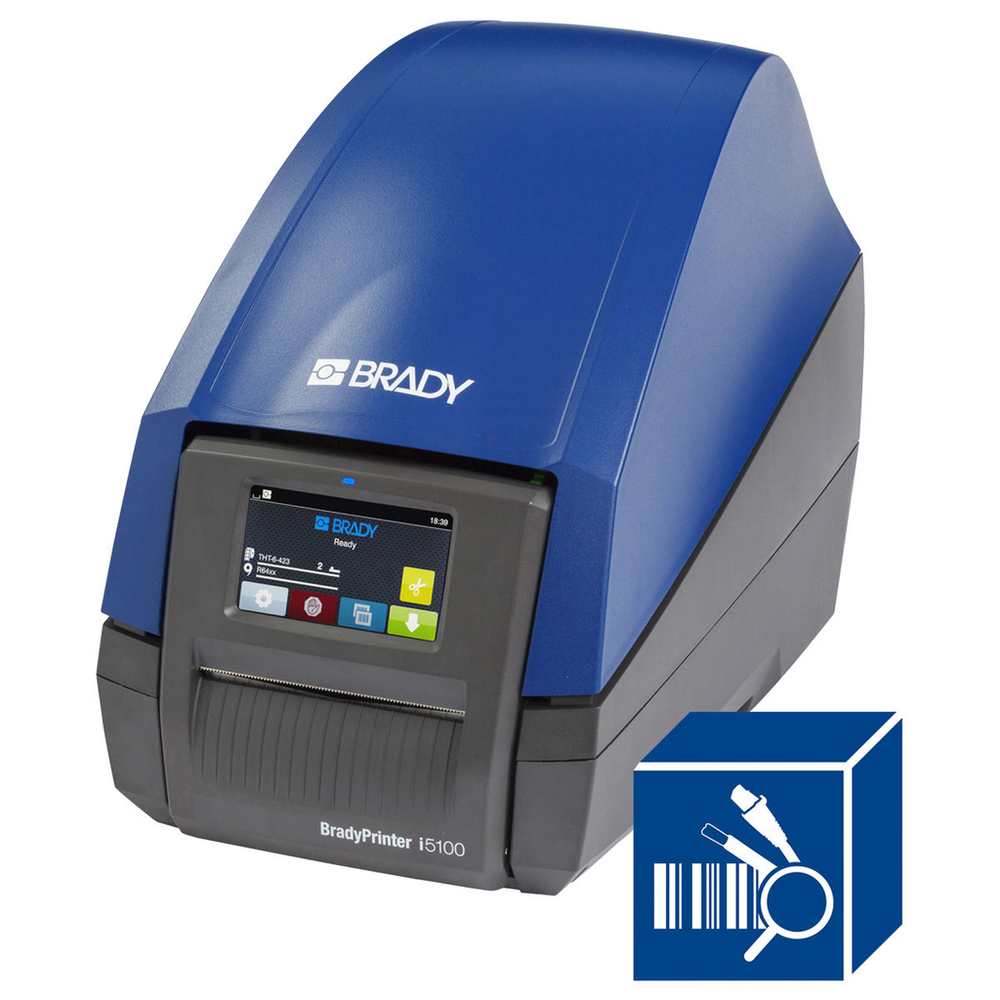

The BradyPrinter i5100 industrial label printer provides the fundamental printing capabilities for the high-mix and high-volume work you need to get done every day.BradyPrinter i5100 300dpi Industrial Label Printer Autocut Model with PWID Suite
Brady 149453 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Regulatory Information
- CA Prop 65 Labeled
- Yes
- CA Prop 65 Label Warning
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Contains CA Prop 65 Cancer and Reproductive Harm Chemical
- DEHP
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Yes
- Contains CA PROP 65 Warning Form
- Short
- Contains CA PROP 65 Warning Type
- Cancer and Reproductive Harm
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- EU RoHS Compliant
- Yes
Specifications
- Accessories Available
- Bluetooth Adapter USB (Cat # 149080); Pre-soaked IPA Cleaning Swabs (Cat # PCK-6); Replacement Print Rollers (various widths); Spare Auto-Detect Media Roll Holder (Cat # 149470); Spare Brady Ribbon Takeup Spindle (Cat #149562); WLAN USB stick (Cat # 149131)
- Applications
- Barcode Labeling; Circuit Board Labeling; Component and Equipment Labeling; Data and Telecommunications Labeling; Electrical Labeling; Inventory and Inspection Labeling; Laboratory Labeling; Wire and Cable Labeling
- Automatic Label Set Up
- Yes
- Auto Shut-Off / Power Conserve
- Yes
- Barcode Capability
- Yes
- Barcode Symbologies - 2D
- Aztec; Codablock F; Data Matrix; GS1 Data Bar; Micro PDF 417; PDF 417; QR Code; RSS 14; RSS 14 Truncated; UPS MaxiCode
- Barcode Symbologies - Linear
- Codabar; Code 128 Subsets A,B,C; Code 39; Code 93; EAN 8,13; EAN/UPC Appendix 2; EAN/UPC Extension 5; FIM; HIBC; Interleaved 2 of 5 Code 39; JAN 8,13; MSI; Plessey; PostNet; RSS 14; UPC A,E,E0
- Brand Name
- Brady®
- Calibration Required
- Yes
- Color Printing Capability
- Single Color
- Connectivity Options
- Bluetooth; Ethernet; Serial RS232; USB 2.0; USB Host
- Continuous & Die-Cut Materials Supported
- Continuous Tapes & Die-Cut Labels
- Custom Media Parts Available
- Yes
- Cut Options Available
- Cut at the end of print jobs; Cut between labels; Full Cut
- Cutter Type
- Auto Cutter
- Depth (in/ft/yd)
- 17 in
- Depth (mm/cm/m)
- 432 mm
- Desktop Printer Model
- BradyPrinter i5100 - 300dpi, AutoCut
- Dimensions
- 12.5 in H x 9.5 in W x 17 in D
- Dimensions (Metric)
- 318 mm H x 432 mm D
- Display Resolution
- 272 x 480 pixels
- Display Type
- Color Touch Screen
- Enables Industry Compliance
- Anatel; BSMI; CCC; CE; China RoHS; CITC; CONATEL; CRA; CU EAC; CU EAEU; cUL; FCC Part 15 Class A; ICASA; IFETEL; IMDA; MCMC; MOC; NCC; NOM; NRRA; NTC; NTRA; OFCA LCB; ORTEL; RCM; RoHS Compliant; SDPPI; STC SDoC; SUTEL; Taiwan RoHS; UL; WEEE Directive; WPC
- Height (in/ft/yd)
- 12.5 in
- Height (mm/cm/m)
- 318 mm
- Includes
- (1) Auto-Detect Roll Holder; (1) Brady Workstation Product and Wire ID Suite (BWS-PWID-EM); (1) BradyPrinter i5100 Autocut Printer 300dpi (149453); (1) Product CD with Manuals & Drivers; (1) Ribbon Takeup Spindle; (1) U.S. Power Cord; (1) USB Cable
- Keyboard Type
- null
- Manual Calibration Required
- Yes
- Maximum Labels per Day
- 5000
- Maximum Liner Width (in/ft/yd)
- 4.4 in
- Maximum Liner Width (mm/cm/m)
- 112 mm
- Maximum Printed Label Length (in/ft/yd)
- 6.6 ft
- Maximum Printed Label Length (mm/cm/m)
- 2.01 m
- Maximum Print Speed
- 11.8 in/s
- Maximum Print Width (in/ft/yd)
- 4.16 in
- Maximum Print Width (mm/cm/m)
- 105.6 mm
- Maximum Ribbon Length (in/ft/yd)
- 1000 ft
- Maximum Ribbon Length (mm/cm/m)
- 304.8 m
- Maximum Ribbon Outside Diameter (in/ft/yd)
- 2.74 in
- Maximum Ribbon Outside Diameter (mm/cm/m)
- 69.6 mm
- Maximum Roll Outer Diameter (in/ft/yd)
- 8.07 in
- Maximum Roll Outer Diameter (mm/cm/m)
- 205 mm
- Media Sensor Adjustment
- Yes
- Media Sensor Type
- Black Mark; Gap Sensor; Notch; Ribbon End
- Memory
- 256 MB RAM
- Minimum Label Length (in/ft/yd)
- 0.20 in
- Minimum Label Length (mm/cm/m)
- 5.08 mm
- Minimum Liner Width (in/ft/yd)
- .36 in
- Minimum Liner Width (mm/cm/m)
- 9.14 mm
- Mode of Operation
- PC Connect
- Operating Humidity Range
- 10%-85% (RH non-condensing)
- Operating Temperature Range °C
- 0°C - 40°C
- Operating Temperature Range °F
- 32° to 104° F
- Plug Type
- IEC Type B
- Power Supply Voltage
- 100 to 240 V @ 50 to 60 Hz
- Primary Noun, Basic Function
- Printer
- Printer and Label Applications
- Circuit Board; Datacom; Electrical; General Identification; Inspection Repair; Laboratory; Rating & Name Plates; Wire & Cable
- Print Multiple Copies
- Yes
- Print Resolution
- 300 dpi
- Print Technology
- Direct Thermal; Thermal Transfer
- Ribbon Core Diameter (in/ft/yd)
- 1 in
- Ribbon Core Diameter (mm/cm/m)
- 25.4 mm
- Ribbon Ink Wind Direction
- Side In/Side Out
- Sign Size-General
- 12.5 in x 9.5 in
- Software Compatibility
- Brady® Workstation; Labelmark™ Software
- Storage Humidity Range
- 20%-85% (RH non-condensing)
- Storage Temperature Range °C
- 0° to 60°C
- Storage Temperature Range °F
- 32°F - 140°F
- Supply Remaining Gauge
- Yes
- Time Date/Stamp
- Yes
- User Interface Type
- PC; Touch Screen
- Warranty
- 5 Years
- Weight (oz/lb)
- 14.6 lb
- Width (in/ft/yd)
- 9.5 in
