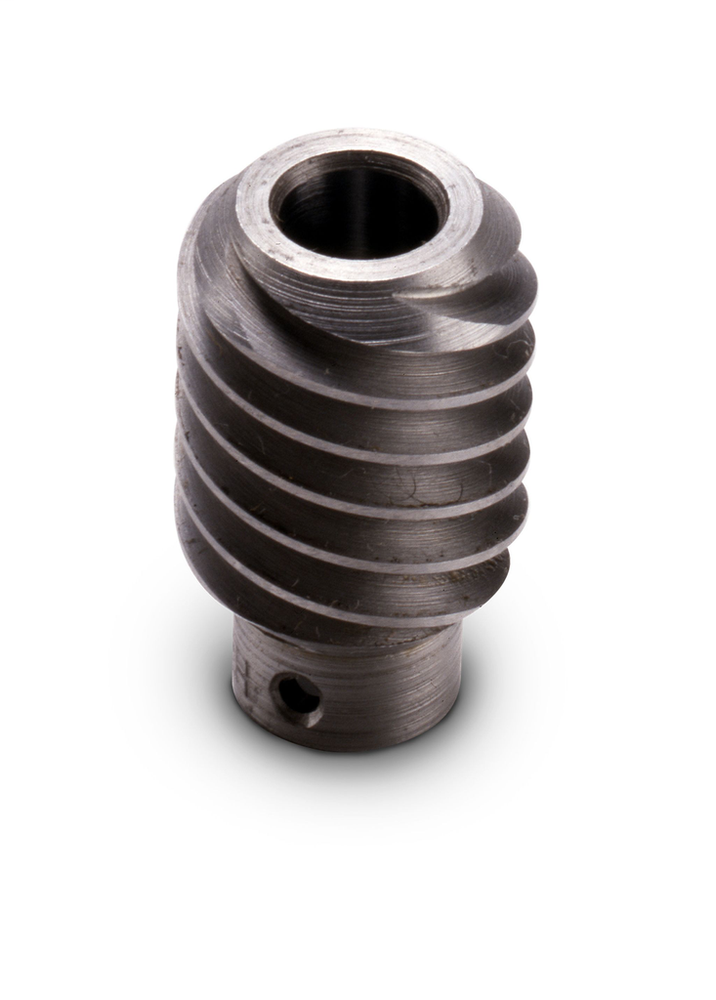

Boston Gear DTH-1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
When used with worm gears, Boston Gear worms provide an effective answer for power transmission applications requiring high ratio speed reduction in a limited space using right angle (90°), non-intersecting shafts. Manufactured from acetal, nylon, and hardened and unhardened steel, they offer the smoothest, quietest form of gearing when properly applied.Because the efficiency of a worm gear drive depends on the lead angle and number of starts on the worm, it's important to keep the ratio as low as possible. It is equally important that worms and worm gears used together must have the same diametrical pitch and threads.Worm, 32 DP, 20 PA, .438 PD, RH, Steel/Unhardened
Boston Gear DTH-1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bore Diameter
- 0.188 in
- Diametral Pitch (DP)
- 32 DP
- Face (Thread Length) [Imperial]
- 0.688 in
- Hand
- Right Hand
- Hub Diameter [Imperial]
- 0.32 in
- Keyway
- No Keyway
- Material
- Steel, Unhardened
- Mating Gear
- 32 DP
- Number of Threads
- Double Thread
- Outside Diameter [Imperial]
- 0.500 in
- Pitch Diameter [Imperial]
- 0.438 in
- Pressure Angle
- 20 Degrees
- Setscrew/Other
- 0.0625 Hole Only
- Straight/Spiral Tooth
- Spiral Tooth
- Weight [Imperial]
- 0.002 lbs
