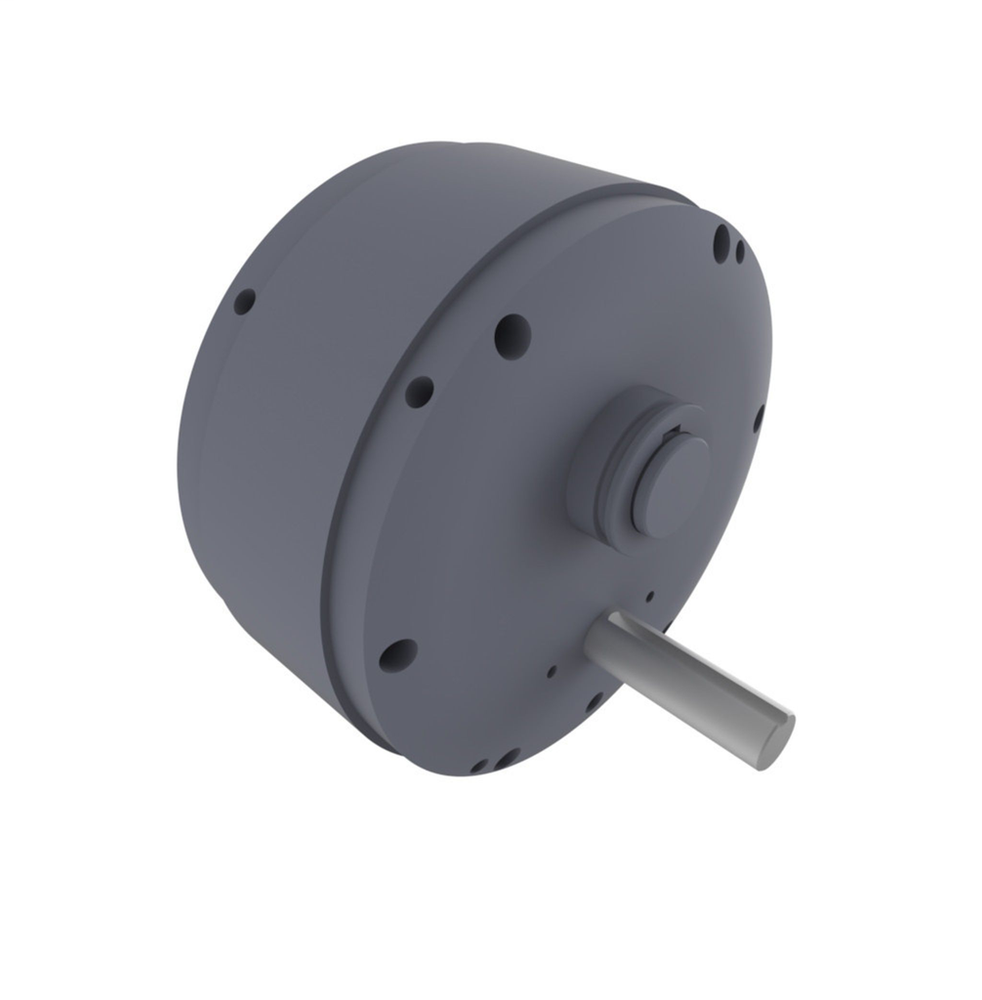

Boston Gear 239D-10
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Boston Gear's 200 Series Optimount® combines the unique benefits of a shaft mount gear drive but also the flexibility of a base mounted reducer. Because of its precision machined external surfaces, the 200 Series can be integrated directly into an OEM piece of equipment or, with the addition of an output shaft kit and horizontal/vertical base, be converted to a parallel shaft base mounted gear drive.And don't forget Reducer Express!™ Boston Gear's revolutionary premium free guaranteed shipment program.239 Hollow O/P Shaft Helical Reducer, 10:1 Ratio, No Base
Boston Gear 239D-10 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- AGMA Service Class
- I
- Assembly Type
- No Base
- Base/Mounting Attachment
- No Base
- Exact Gear Ratio
- 9.84
- Input Motor HP
- 5 HP at AGMA Service Class I
- Input Power Range [Imperial]
- 5.01 - 7.50
- Input Power Range [Metric]
- 3.803 - 5.666
- Input Power Rating [Imperial]
- 7.12 HP
- Input Power Rating [Metric]
- 5.309 kW
- Input Style
- No Flange (projecting shaft)
- Motor Frame Size
- No Flange
- Output Bore/Shaft Diameter [Imperial]
- 1.9375 in
- Output Shaft
- Hollow
- Output Speed
- 178 RPM
- Output Torque Rating [Imperial]
- 2,426 lb-in
- Output Torque Rating Range [Imperial]
- 2000 - 2499
- Output Torque Rating Range [Metric]
- 250 - 299
- Pre-Lubricated
- No
- Product Series
- 200 Series Optimount®
- Rated Efficiency
- 0.96
- Ratio
- 10:1
- Ratio and Output Speed
- 10:1 | 178 RPM
- Ratio and Output Speed Range
- 5:1 thru 10:1 | 350 RPM thru 175 RPM
- Recommended Lubrication
- Klubersynth UH1 6-460
- Reduction
- Double
- Reduction Type
- 200 Series Parallel Shaft
- Style
- No Base / No Input Flange
- Weight [Imperial]
- 96.1 lbs
