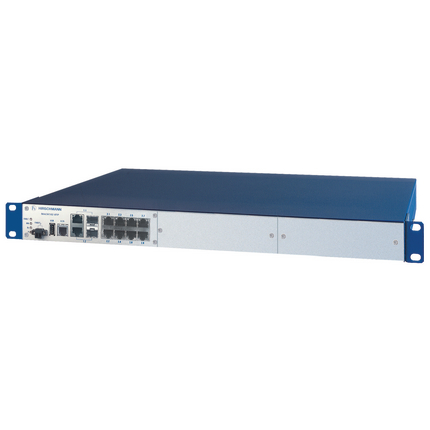

Belden 943969001

Ambient conditions

• MTBF (MIL-HDBK 217F Gb 25 ºC)
  • (without media modules) 15.67 Years
• Operating temperature
  • 0-+50 °C
• Relative humidity (non-condensing)
  • 10-95 %
• Storage/transport temperature
  • -20-+85 °C

Approvals

• Safety of industrial control equipment
  • cUL 508
• Safety of information technology equipment
  • cUL 60950-1

EMC emitted immunity

• EN 55022
  • EN 55022 Class A
• FCC CFR47 Part 15
  • FCC 47CFR Part 15, Class A

EMC interference immunity

• EN 61000-4-2 electrostatic discharge (ESD)
  • 4 kV contact discharge, 8 kV air discharge
• EN 61000-4-3 electromagnetic field
  • 10 V/m (80-2700 MHz)
• EN 61000-4-4 fast transients (burst)
  • 2 kV power line, 4 kV data line
• EN 61000-4-5 surge voltage
  • power line: 2 kV (line/earth), 1 kV (line/line), 4 kV data line
• EN 61000-4-6 Conducted Immunity
  • 10 V (150 kHz-80 MHz)

Further Instructions

• Certificates
  • https://www.doc.hirschmann.com/certificates.html
• Product Documentation
  • https://www.doc.hirschmann.com
• Update and Revision
  • Revision Number: 0.98 Revision Date: 08-06-2021

Mechanical construction

• Dimensions (WxHxD)
  • 448 mm x 44 mm x 310 mm (without fixing bracket)
• Mounting
  • 19" control cabinet
• Protection class
  • IP20
• Weight
  • 3.60 kg

More Interfaces

• Power supply/signaling contact
  • 1 x plug-in terminal block, 2-pin, output manual or automatic switchable (max. 1 A, 24 V DC bzw. 24 V AC)
• USB interface
  • 1 x USB to connect auto-configuration adapter ACA21-USB
• V.24 interface
  • 1 x RJ11 socket, serial interface for device configuration

Network size - cascadibility

• Line - / star topology
  • any
• Ring structure (HIPER-Ring) quantity switches
  • 50 (reconfiguration time

Network size - length of cable

• Multimode fiber (MM) 50/125 µm
  • Fast Ethernet: see SFP LWL module M-FAST SFP-MM/LC; Gigabit Ethernet: see SFP LWL module M-SFP-SX/LC and M-SFP-LX/LC
• Multimode fiber (MM) 62.5/125 µm
  • Fast Ethernet: see SFP LWL module M-FAST SFP-MM/LC; Gigabit Ethernet: see SFP LWL module M-SFP-SX/LC and M-SFP-LX/LC
• Single mode fiber (LH) 9/125 µm (long haul transceiver)
  • Fast Ethernet: see SFP LWL module M-FAST SFP-LH/LC; Gigabit Ethernet: see SFP LWL module M-SFP-LH/LC and M-SFP-LH+/LC
• Single mode fiber (SM) 9/125 µm
  • Fast Ethernet: see SFP LWL module M-FAST SFP-SM/LC and M-FAST SFP-SM+/LC; Gigabit Ethernet: see SFP LWL module M-SFP-LX/LC
• Twisted pair (TP)
  • 0-100 m

Power requirements

• Operating Voltage
  • 100 - 240 VAC, 47 - 63 Hz
• Power consumption
  • 12 W (without media modules)
• Power output in BTU (IT)/h
  • 41 (without media modules)
• Redundancy functions
  • HIPER-Ring, MRP, MSTP, RSTP - IEEE802.1D-2004, MRP and RSTP gleichzeitig, Link Aggregation, dual homing, link aggregation

Product description

• Description
  • 26 port Fast Ethernet/Gigabit Ethernet Industrial Workgroup Switch (fix installed: 2 x GE, 8 x FE; via Media Modules 16 x FE), managed, Software Layer 2 Professional, Store-and-Forward-Switching, fanless Design
• Part Number
  • 943969001
• Port type and quantity
  • Up to 26 Ethernet ports, thereof up to 16 Fast-Ethernet ports via media modules realisable; 8x TP (10/100 BASE-TX, RJ45) Fast Ethernet ports and 2 Gigabit Combo ports fix installed

Scope of delivery and accessories

• Accessories to Order Separately
  • Fast Ethernet SFP modules, Gigabit Ethernet SFP modules, autoConfiguration Adapter ACA21-USB, terminal cable, Industrial Hivision Network Management software
• Scope of delivery
  • MACH100 device, terminal block for signal contact, 2 brackets with fasteningscrews (pre-assembled), housing feet - stick-on, non-heating appliance cable - Euro model

Software

• Configuration
  • AutoConfiguration Adapter ACA11 Limited Support (RS20/30/40, MS20/30), Automatic Configuration Undo (roll-back), Configuration Fingerprint, BOOTP/DHCP Client with Auto-Configuration, DHCP Server: per Port, DHCP Server: Pools per VLAN, DHCP Server: Option 43, AutoConfiguration Adapter ACA21/22 (USB), HiDiscovery, DHCP Relay with Option 82, Command Line Interface (CLI), CLI Scripting, Full-featured MIB Support, Web-based Management, Context-sensitive Help
• Diagnostics
  • Management Address Conflict Detection, Address Relearn Detection, MAC Notification, Signal Contact, Device Status Indication, TCPDump, LEDs, Syslog, Port Monitoring with Auto-Disable, Link Flap Detection, Overload Detection, Duplex Mismatch Detection, Link Speed and Duplex Monitoring, RMON (1,2,3,9), Port Mirroring 1:1, Port Mirroring 8:1, Port Mirroring N:1, System Information, Self-Tests on Cold Start, Copper Cable Test, SFP Management, Configuration Check Dialog, Switch Dump
• Industrial Profiles
  • EtherNet/IP Protocol, PROFINET IO Protocol
• Management
  • Dual Software Image Support, TFTP, LLDP (802.1AB), LLDP-MED, SSHv1, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet
• Miscellaneous
  • Manual Cable Crossing
• Redundancy
  • Advanced Ring Configuration for MRP, HIPER-Ring (Manager), HIPER-Ring (Ring Switch), Fast HIPER-Ring, Link Aggregation with LACP, Media Redundancy Protocol (MRP) (IEC62439-2), Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), MSTP (802.1Q), RSTP Guards
• Security
  • IP-based Port Security, MAC-based Port Security, Port-based Access Control with 802.1X, Guest/unauthenticated VLAN, RADIUS VLAN Assignment, Multi-Client Authentication per Port, MAC Authentication Bypass, Access to Management restricted by VLAN, HTTPS Certificate Management, Restricted Management Access, Appropriate Use Banner, SNMP Logging, Local User Management, Remote Authentication via RADIUS
• Switching
  • Disable Learning (hub functionality), Independent VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS / Port Prioritization (802.1D/p), TOS/DSCP Prioritization, Egress Broadcast Limiter per Port, Flow Control (802.3X), VLAN (802.1Q), GARP VLAN Registration Protocol (GVRP), Double VLAN Tagging (QinQ), Voice VLAN, GARP Multicast Registration Protocol (GMRP), IGMP Snooping/Querier (v1/v2/v3)
• Time synchronisation
  • Buffered Real Time Clock, SNTP Client, SNTP Server
