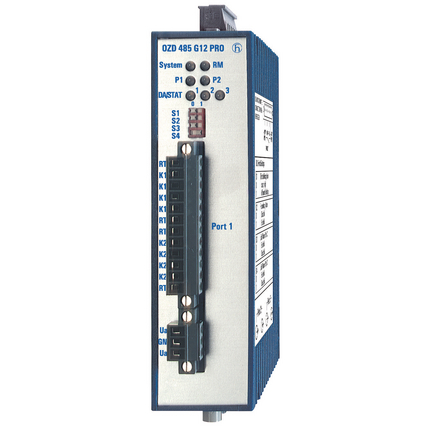

Belden 943894321
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Interface converter electrical/optical for RS 485 field bus networks; repeater function; for quartz glass FO; electrical full duplex or semi-duplex mode943894321 - OZD 485 G12 PRO - Interface converter electrical/optical for RS 485 field bus networks; repeater function; for quartz glass FO; electrical full duplex or semi-duplex mode
Belden 943894321 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Operating temperature
- -25-+70 °C
- Relative humidity (non-condensing)
- 0-95 %
- Storage/transport temperature
- -25-+80 °C
Approvals
- Basis Standard
- EU Conformity, AUS Conformity Australia
- Hazardous locations
- ISA 12.12.01 Class 1 Div. 2, ATEX Zone 2
- Safety of information technology equipment
- cUL508
Mechanical construction
- Dimensions (WxHxD)
- 35 mm x 156 mm x 119 mm
- Housing Material
- plastics
- Mounting
- DIN rail
- Protection class
- IP20
- Weight
- 195 g
More Interfaces
- Signaling contact
- 7-pin terminal block
- Voltage output
- 3-pin terminal block
Network size - length of cable
- Multimode fiber (MM) 50/125 µm
- 2300 m, 10 dB link budget at 860 nm; A = 3 dB/km
- Multimode fiber (MM) 62.5/125 µm
- 3100 m, 14 dB link budget at 860 nm; A = 3.5 dB/km
Power requirements
- Current consumption
- max. 200 mA
- Input voltage range
- -7 V ... +12 V
- Operating Voltage
- 18 ... 32 VDC (typ. 24 VDC)
- Power consumption
- max 3.5 W
- Redundancy functions
- redundant ring, redundant power supply
Product description
- Name
- OZD 485 G12 PRO
- Part Number
- 943894321
- Port type and quantity
- 2 x optical: BFOC 2.5 (STR) socket; 1 x electrical: 12-pin terminal block
- Type
- OZD 485 G12 PRO
Scope of delivery and accessories
- Scope of delivery
- device, start-up instructions
