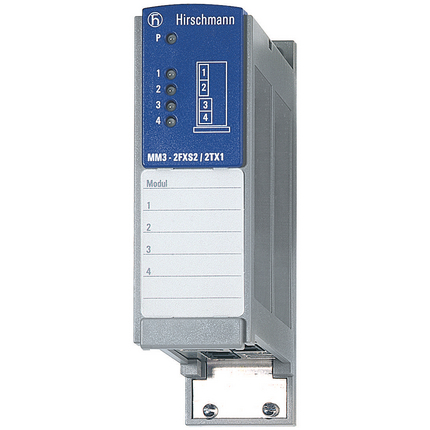

Belden 943762101
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Media module for MICE Switches (MS...), 100BASE-TX and 100BASE-FX single mode F/O943762101 - MM3 - 2FXS2/2TX1 - Media module for MICE Switches (MS...), 100BASE-TX and 100BASE-FX single mode F/O
Belden 943762101 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- MTBF (MIL-HDBK 217F Gb 25 ºC)
- 64.9 Years
- Operating temperature
- 0-+60 °C
- Relative humidity (non-condensing)
- 10-95 %
- Storage/transport temperature
- -40-+70 °C
Approvals
- Basis Standard
- CE
- Safety of industrial control equipment
- cUL508
- Shipbuilding
- Navy DNVGL
EMC emitted immunity
- EN 55022
- EN 55022 Class A
- EN 55032
- EN 55032 Class A
- FCC CFR47 Part 15
- FCC 47CFR Part 15, Class A
EMC interference immunity
- EN 61000-4-2 electrostatic discharge (ESD)
- 6 kV contact discharge, 8 kV air discharge
- EN 61000-4-3 electromagnetic field
- 10 V/m (80 - 1000 MHz)
- EN 61000-4-4 fast transients (burst)
- 2 kV power line, 1 kV data line
- EN 61000-4-5 surge voltage
- power line: 2 kV (line/earth), 1 kV (line/line), 1kV data line
- EN 61000-4-6 Conducted Immunity
- 3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)
Further Instructions
- Certificates
- https://www.doc.hirschmann.com/certificates.html
- Product Documentation
- https://www.doc.hirschmann.com
- Update and Revision
- Revision Number: 0.41 Revision Date: 08-06-2021
Mechanical construction
- Dimensions (WxHxD)
- 38 mm x 134 mm x 118 mm
- Mounting
- Backplane
- Protection class
- IP 20
- Weight
- 180 g
Mechanical stability
- IEC 60068-2-27 shock
- 15 g, 11 ms duration, 18 shocks
- IEC 60068-2-6 vibration
- 1 mm, 2 Hz - 13.2 Hz, 90 min.; 0.7g, 13.2 Hz - 100 Hz, 90 min.; 3.5 mm, 3 Hz - 9 Hz, 10 cycles, 1 octave/min.; 1g, 9 Hz - 150 Hz, 10 cycles, 1 octave/min.
Network size - length of cable
- Single mode fiber (SM) 9/125 µm
- 0 -32.5 km, 16 dB link budget at 1300 nm, A = 0.4 dB/km, 3 dB reserve, D = 3.5 ps/(nm x km)
- Twisted pair (TP)
- 0-100
Power requirements
- Operating Voltage
- power supply via the backplane of the MICE switch
- Power consumption
- 3.8 W
- Power output in BTU (IT)/h
- 13.0 Btu (IT)/h
Product description
- Part Number
- 943762101
- Port type and quantity
- 2 x 100BASE-FX, SM cables, SC sockets, 2 x 10/100BASE-TX, TP cables, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity
- Type
- MM3-2FXS2/2TX1
Scope of delivery and accessories
- Accessories to Order Separately
- ML-MS2/MM labels
- Scope of delivery
- module, general safety instructions
Software
- Diagnostics
- LEDs (power, link status, data, 100 Mbit/s, auto-negotiation, full duplex, ring port, LED test)
Specifications
- Type
- MM3-2FXS2/2TX1
