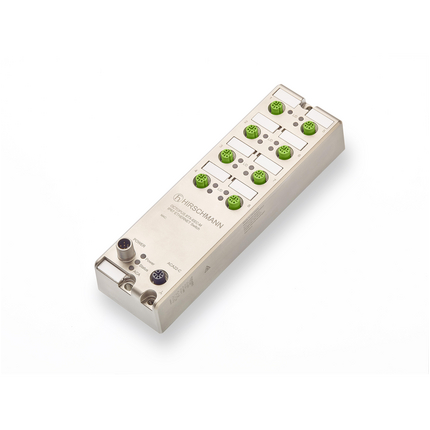

Belden 942301002

Ambient conditions

• Note
  • Please note that some recommended accessory parts only support a temperature range from -25 ºC to +70 ºC and might limit the possible operating conditions for the entire system.
• Operating temperature
  • -40-+70 °C
• Relative humidity (also condensing)
  • 5-100 %
• Storage/transport temperature
  • -40-+85 °C

Approvals

• Basis Standard
  • CE, EAC, Australian Regulatory Compliance Mark (RCM), GOST-R, CCC, KCC (pending)
• Hazardous locations
  • ISA 12.12.01 Class 1 Div. 2 (pending)
• Railway norm
  • EN 50155, EN 45545-2, EN 50121-4, EMV06 (pending)
• Safety of industrial control equipment
  • cUL61010-2-201 (pending)
• Safety of information technology equipment
  • EN62368
• Transportation
  • E1, ECE R118 (pending), EN 61850, IEEE1613 (pending), DNVGL (pending)

EMC emitted immunity

• EN 55032
  • EN 55032 Class A
• FCC CFR47 Part 15
  • FCC 47CFR Part 15, Class A

EMC interference immunity

• EN 61000-4-2 electrostatic discharge (ESD)
  • 6 kV contact discharge, 8 kV air discharge
• EN 61000-4-3 electromagnetic field
  • 20 V/m (80-3000 MHz)
• EN 61000-4-4 fast transients (burst)
  • 2 kV power line, 4 kV data line
• EN 61000-4-5 surge voltage
  • power line: 2 kV (line/earth), 1 kV (line/line), 2 kV data line
• EN 61000-4-6 Conducted Immunity
  • 3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)

Further Instructions

• Certificates
  • https://www.doc.hirschmann.com/certificates.html
• Product Documentation
  • https://www.doc.hirschmann.com
• Update and Revision
  • Revision Number: 0.43 Revision Date: 08-06-2021

Mechanical construction

• Dimensions (WxHxD)
  • 201 mm x 61 mm x 46 mm
• Mounting
  • Wall mounting
• Protection class
  • IP65, IP67
• Weight
  • 900 g

Mechanical stability

• IEC 60068-2-27 shock
  • 15 g, 11 ms duration, 18 shocks
• IEC 60068-2-6 vibration
  • 1 mm, 2 Hz-13.2 Hz, 90 min. 0.7 g, 13.2 Hz-100 Hz, 90 min. 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min. 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min

More Interfaces

• Power supply/signaling contact
  • 1 x M12 5-pin connector, A coding
• USB interface
  • 1 x M12 5-pin socket, A coding

Network size - cascadibility

• Line - / star topology
  • any

Network size - length of cable

• Twisted pair (TP)
  • 0-100 m

Power requirements

• Operating Voltage
  • 24/36 V DC (16,8V DC ... 45 V DC)
• Power consumption
  • 6 W
• Power output in BTU (IT)/h
  • 20

Product description

• Description
  • Managed IP65 and IP67 switch, HiOS software layer 2 advanced, 8 Fast-Ethernet M12-ports D-coded, approved for use onboard trains and road vehicles
• Part Number
  • 942301002
• Port type and quantity
  • 8 ports in total: 10/100 BASE-TX, M12 "D"-coding
• Type
  • OCTOPUS 8TX-EEC-M-2A

Scope of delivery and accessories

• Accessories to Order Separately
  • AutoConfiguration Adapter ACA22-M12-C (EEC) (942-306-001), Adapterkabel M12-5Pin auf USB (for configuration) (942 309-001), Connector ELWIKA 5012 PG7 (5-pin M12 socket for voltage supply) (933 175-100), Connection cable with M12 connector, D-coded (934 497-00x), Adapter M12 D-coded to RJ45 (934 498-001), OCTOPUS metal protection caps (25 pcs.) (942 057-001), OCTOPUS plastic protection caps (25 pcs.) (934 963-001), ACA2x-M12 to USB (USB 1.1/2.0 Type-A) Adapter (for ACA M12 connection to PC) (942-199-001), Industrial HiVision Network Management Software (943 156-xxx)
• Scope of delivery
  • 1 × Device, 1 × General safety instructions, 1 x M12 power connector (ELWIKA 5012 PG7), 15x plastic labels for ethernet ports and device, 7x M12 plastic protection caps for USB interface and ethernet-ports, 1x M12 plastic protection cap for power supply input

Software

• Configuration
  • Automatic Configuration Undo (roll-back), Configuration Fingerprint, Text-based Configuration File (XML), Backup config on a remote server when saving, Clear config but keep IP settings, BOOTP/DHCP Client with Auto-Configuration, DHCP Server: per Port, DHCP Server: Pools per VLAN, AutoConfiguration Adapter ACA21/22 (USB), HiDiscovery, USB-C Management support, Command Line Interface (CLI), CLI Scripting, CLI script handling over ENVM at boot, Full-featured MIB Support, Context-sensitive Help, HTML5 based Management
• Diagnostics
  • Management Address Conflict Detection, MAC Notification, Signal Contact, Device Status Indication, TCPDump, LEDs, Syslog, Persistent Logging on ACA, Port Monitoring with Auto-Disable, Link Flap Detection, Overload Detection, Duplex Mismatch Detection, Link Speed and Duplex Monitoring, RMON (1,2,3,9), Port Mirroring 1:1, Port Mirroring 8:1, Port Mirroring N:1, Port Mirroring N:2, System Information, Self-Tests on Cold Start, Copper Cable Test, Configuration Check Dialog, Switch Dump, Email Notification
• Industrial Profiles
  • EtherNet/IP Protocol, IEC61850 Protocol (MMS Server, Switch Model), Modbus TCP, EtherNet/IP Separate VLAN
• Management
  • Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet, OPC-UA Server
• Miscellaneous
  • Manual Cable Crossing, Port Power Down
• Redundancy
  • HIPER-Ring (Ring Switch), Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2), Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards, Sub Ring Manager
• Security
  • MAC-based Port Security, Port-based Access Control with 802.1X, Guest/unauthenticated VLAN, Integrated Authentication Server (IAS), RADIUS VLAN Assignment, Denial-of-Service Prevention, DoS Prevention Drop Counter, VLAN-based ACL, Ingress VLAN-based ACL, Basic ACL, Access to Management restricted by VLAN, Device Security Indication, Audit Trail, CLI Logging, HTTPS Certificate Management, Restricted Management Access, Appropriate Use Banner, Configurable Password Policy, Configurable Number of Login Attempts, SNMP Logging, Multiple Privilege Levels, Local User Management, Remote Authentication via RADIUS, User Account Locking, Password change on first login, RADIUS Policy Assignment, Multi-Client Authentication per Port, MAC Authentication Bypass, Format options for MAC authentication bypass, LDAP
• Switching
  • Independent VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS / Port Prioritization (802.1D/p), TOS/DSCP Prioritization, Interface Trust Mode, CoS Queue Management, Queue-Shaping / Max. Queue Bandwidth, Flow Control (802.3X), Egress Interface Shaping, Ingress Storm Protection, Jumbo Frames, VLAN (802.1Q), GARP VLAN Registration Protocol (GVRP), Voice VLAN, GARP Multicast Registration Protocol (GMRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Unknown Multicast Filtering, Multiple VLAN Registration Protocol (MVRP), Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Layer 2 Loop Protection, Template based TSN 802.1Qbv
• Time synchronisation
  • PTPv2 Transparent Clock two-step, PTPv2 Boundary Clock, BC with Up to 8 Sync / s , 802.1AS, Buffered Real Time Clock, SNTP Client, SNTP Server
